FORD VCM2 Update and Recovery Mode | Device Not Showing in IDS Program Issue
Did your Ford VCM2/VCM3 device enter update mode and the red icon is not showing in IDS software? With this comprehensive guide, you can get your device out of recovery mode and back to normal working condition.
Problem Detection
How to Tell if VCM2 is in Update Mode?
Initial Check Step
Device Manager Check
- Connect the VCM2 device to your computer
- Press Windows + R keys and type "devmgmt.msc"
- Expand the "Network Adapters" section
- Check if "ETAS" device is listed
Bosch VCI Manager Download
Bosch VCI Manager Installation
Bosch VCI Manager application is required for the recovery process. If it's not installed on your computer:
Recovery Mode Process
Completely disconnect the VCM2/VCM3 device from both computer and vehicle. Make sure no power remains in the device.
Carefully remove the black protective cover from the VCM device's USB connection port.
VCM2 Device - Cover Removed View
Recovery button is now visibleConnect the USB cable to the device but do not connect it to the computer yet.
Press and hold the small recovery button inside the device
While holding the button, connect the USB cable to the computer
Wait approximately 20 seconds
All device lights will start blinking simultaneously
Release the button after the lights start blinking

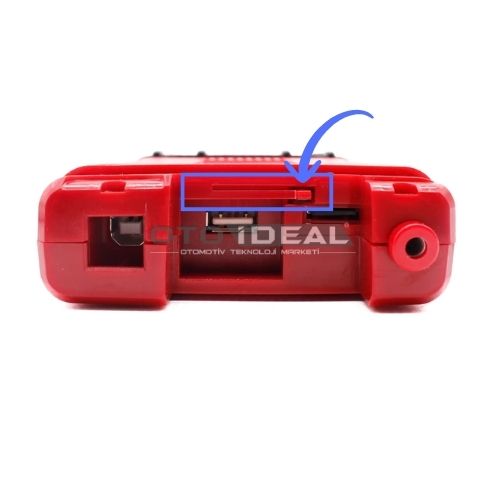

Recovery Button Location
Small recessed button - must be held down- Open Bosch VCI Manager application
- Check that the device is recognized and "Recover" option appears
- Click the "Recover" button
- Click "Start Update" button in the opened window
The update process will start automatically and take approximately 10-15 minutes.
Success Verification
Checking Update Success
Frequently Asked Questions
Why does VCM2 enter update mode?
Situations like firmware corruption, failed updates, or power interruptions can cause VCM2 to enter update mode.
Does the recovery process damage the device?
No, the recovery process is a safe procedure designed to reload the device's normal firmware.
How long does the process take?
The total process time is approximately 15-20 minutes. Firmware download and installation takes 10-15 minutes.
Recovery button doesn't work, what should I do?
Make sure the button is fully pressed. Sometimes you may need to press harder. It's critical to hold the button before USB connection.
VCI Manager doesn't see the device?
Repeat the recovery process. Make sure the device is completely powerless and USB is connected while holding the recovery button.
Update was interrupted halfway, what should I do?
Put the device back into recovery mode and restart the update process from the beginning. Check mains power connection.
Does the same process apply to VCM3?
Yes, the same recovery procedure applies to VCM3 devices. Button location is the same.
Which Windows versions are supported?
Windows 7, 8, 10, and 11 systems are supported. Both 32-bit and 64-bit versions are compatible.
Does IDS version matter?
Firmware update is independent of IDS version. However, using current IDS is recommended for performance.
Professional Tips
Backup
Note current settings before the process
Power Control
Use laptops with power adapter
Time Planning
Allow 30 minutes for the process
Security
Temporarily disable antivirus
Our Ford Diagnostic Solutions
Ford VCM2 Device
Original Ford diagnostic device. Fully compatible with IDS, FDRS and FORScan software.
- Support up to 2024 model year
- All Ford, Lincoln, Mercury models
- Advanced diagnostic features
- Configuration and programming
IDS Software Installation
Professional IDS, FDRS and FORScan software installation service.
- Current software versions
- Remote installation support
- License and activation
- Technical support included
Professional Ford Diagnostic Solutions
Complete diagnostic and programming solutions for your Ford vehicles. Professional service with original VCM2 devices and current software.
Conclusion
You can easily solve your Ford VCM2 device's recovery mode problem with this guide. If you follow the correct steps, your device will return to normal working condition.
Remember: The recovery process is a safe procedure, but paying attention to the order and details of the steps is critically important. If you have doubts at any step, it is recommended to stop the process and get technical support.
