Heavy Vehicle Diagnostic Equipment

Heavy vehicle diagnostic equipment reaches the engine, transmission, braking and body systems on trucks, tractor units, buses and plant. Oto Ideal supplies manufacturer interfaces including Mercedes SD Connect C6, MAN T427, DAF VCI-560, Iveco Eltrac and Cummins Inline 6.

Showing 1-7 of 7 products

Why a manufacturer interface is needed here

On a car a multi-brand tool covers most of the work. Heavy vehicles are different: engine, transmission, retarder, ABS and EBS, suspension and body all have their own control units, and many of them speak the manufacturer protocol. Parameter writing, injector coding and calibration need the factory interface.

Which tool for which vehicle

  • Mercedes-Benz Actros, Atego, Axor and buses — SD Connect C6 with Xentry, giving franchised dealer depth.
  • MAN TGX, TGS, TGM — the T427 interface with MAN-cats.

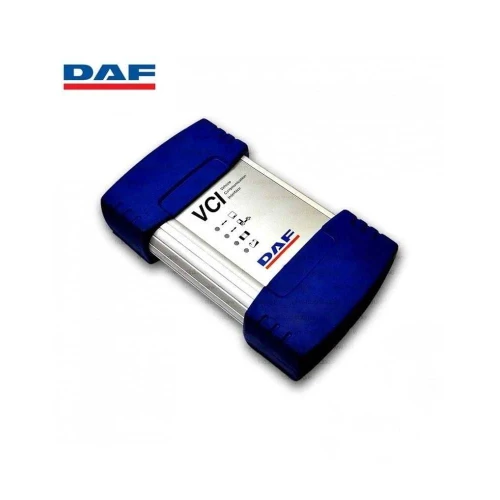

  • DAF XF, CF, LF — VCI-560 with DAVIE.

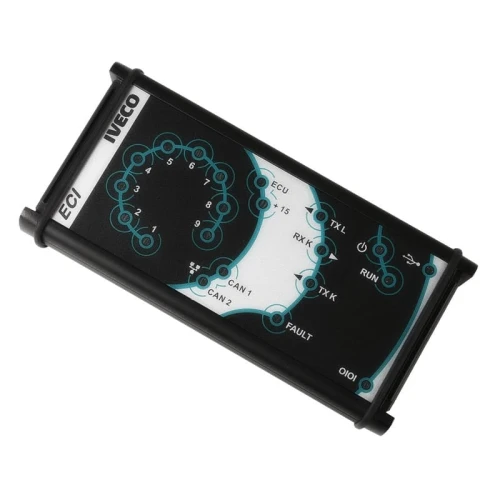

  • Iveco Stralis, Daily, Eurocargo — the Eltrac interface.

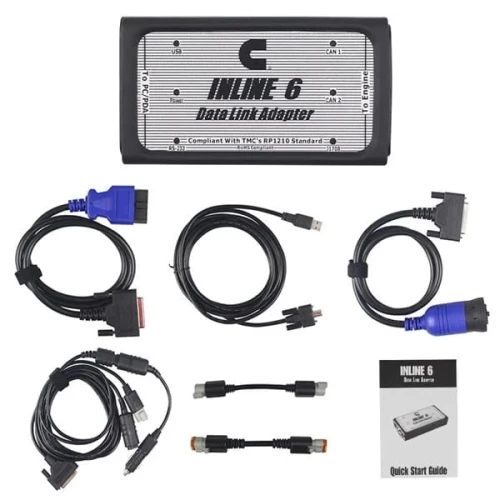

  • Cummins-engined vehicles and plant — Inline 6 reaches Cummins engines regardless of the chassis make.

For fleet operators

Reading a fault on site instead of sending the vehicle in pays for itself quickly once you price an hour of a tractor unit standing still. If the fleet is single-make, start with that interface; if it is mixed, start with the make you run most of.

Plant and machinery fault codes

We have detailed articles on JCB, Caterpillar, New Holland, Case and Landini fault codes in the blog. You can also look up any code you have read with our OBD2 fault code lookup.

Buying guides

All articles

Frequently asked questions about the Heavy Vehicle Diagnostic Equipment

Kamyon için binek arıza tespit cihazı kullanılabilir mi?

Çoğu zaman hayır. Ağır vasıtada teşhis hattı J1939 ve üreticiye özel protokollerle çalışır, soket 16 pin yerine 9 ya da 14 pin olabilir; binek cihazı takıldığında ya hiçbir modülü görmez ya da yalnız motor kodunu okur. Parametre yazma, enjektör kodlama ve hız sınırlayıcı gibi işlemler için markanın kendi arayüzü (SD Connect, T427, VCI-560, Eltrac) ya da çok markalı Jaltest gerekir.

Jaltest mi, markanın kendi arayüzü mü?

Tek markaya çalışan servis için o markanın arayüzü hem daha ucuz hem daha derindir: üreticinin kendi yazılımını çalıştırır, çevrim dışı programlama ve parametre yazma yapar. Karışık filo ya da her gün farklı marka gören servis için Jaltest tek arayüzle bütün parkı okur; CV modülü kamyondan römorka uzanır, OHW iş makinesi, AGV traktör içindir. İkisini birlikte kullanan servis de az değildir.

İş makinesi ve traktör arıza kodlarını nereden bulurum?

Motor Cummins ise Inline 6, makine kontrol üniteleri için Jaltest OHW ya da AGV modülü kodu okur. Kodun anlamı için blogda traktör, JCB ve Caterpillar arıza kodu listeleri var; OBD standardındaki kodlar için arıza kodu sorgulama aracı kullanılabilir.

Which brands are listed under Heavy Vehicle Diagnostic Equipment?

This page carries 3 brands: Cojali Jaltest, Engine Dance, OEM (Original Equipment Manufacturers).

Each brand page compares its models and explains what to look for.

How much do Heavy Vehicle Diagnostic Equipment cost?

Products on this page range from $265 to $2,100 including VAT.

The gap is coverage: a tool that reads and clears codes does not do what a tool that codes and programs does. Tell us your budget and we will shortlist the models that fit.

Are the Heavy Vehicle Diagnostic Equipment products invoiced and under warranty?

Yes. Every product on this page is genuine, invoiced and under warranty.

Shipping is free on orders over 3,000 TL, and remote technical support is provided for installation and first use.
