Engine Dance X5 Heavy Duty Diagnostic and ECU Programming Tool

Engine Dance X5 Heavy Duty Diagnostic and ECU Programming Tool

Engine Dance X5 is a diagnostic and ECU programming tool built for trucks, buses, construction machinery and agricultural equipment. What separates it from passenger-car tools is clear: in this class the work does not end at reading a fault code — DPF regeneration, SCR testing, NOx sensor checks, speed-limit setting and writing ECU software are part of the daily job. The X5 puts all of that in one box and runs on 7–32 V, so it reaches both 12 V and 24 V systems.

Why Heavy Duty Is Different

Truck electronics differ from passenger cars in two places. First, voltage: the system is 24 V, and a tool designed for 12 V cannot connect. Second, aftertreatment: DPF, SCR and AdBlue faults take the vehicle — and the business — off the road, and the fix is often a manual regeneration or a sensor adaptation.

The Engine Dance X5 covers both: a 7–32 V supply range and a dedicated set of aftertreatment functions.

ECU Read, Write and Checksum

Separate from diagnostics, the tool has a second capability: reading and writing unit software. The manufacturer's published coverage:

Supported Engine and ECU Brands

ECU systems:

• Bosch
• Denso
• Cummins
• Delphi
• Continental
• TRW
• Ectek

Engine brands:

• Cummins
• Perkins
• Caterpillar
• Weichai
• Yuchai
• FAW
• Yunnei
• Doosan
• Isuzu
• Komatsu
• Yanmar
• Deutz
• YTO
• Econtrols
• Woodward
• Mercury
• Quanchai
• SDEC
• Greatwall
• Changchai
• DCD
• Sida
• XinChai

Why is that list so long? Because on heavy duty and off-highway machines the engine brand and the vehicle brand are usually different: a crane may be Chinese-built with a Cummins engine and a Bosch control unit. The diagnostic tool has to recognise the unit, not the vehicle.

The Three Versions

The tool is sold in three configurations, and the difference is in the hardware:

Remote Support and ECU Unlock

• One-click remote support. When a write, diagnosis or calibration gets stuck, the tool connects you directly to a manufacturer engineer.
• Encrypted ECU unlock. Certain encrypted MD1 units can be unlocked remotely. This is a separately charged service and not every unit is supported — send us your ECU code before ordering and we will check the list.

Specifications

What Is in the Box

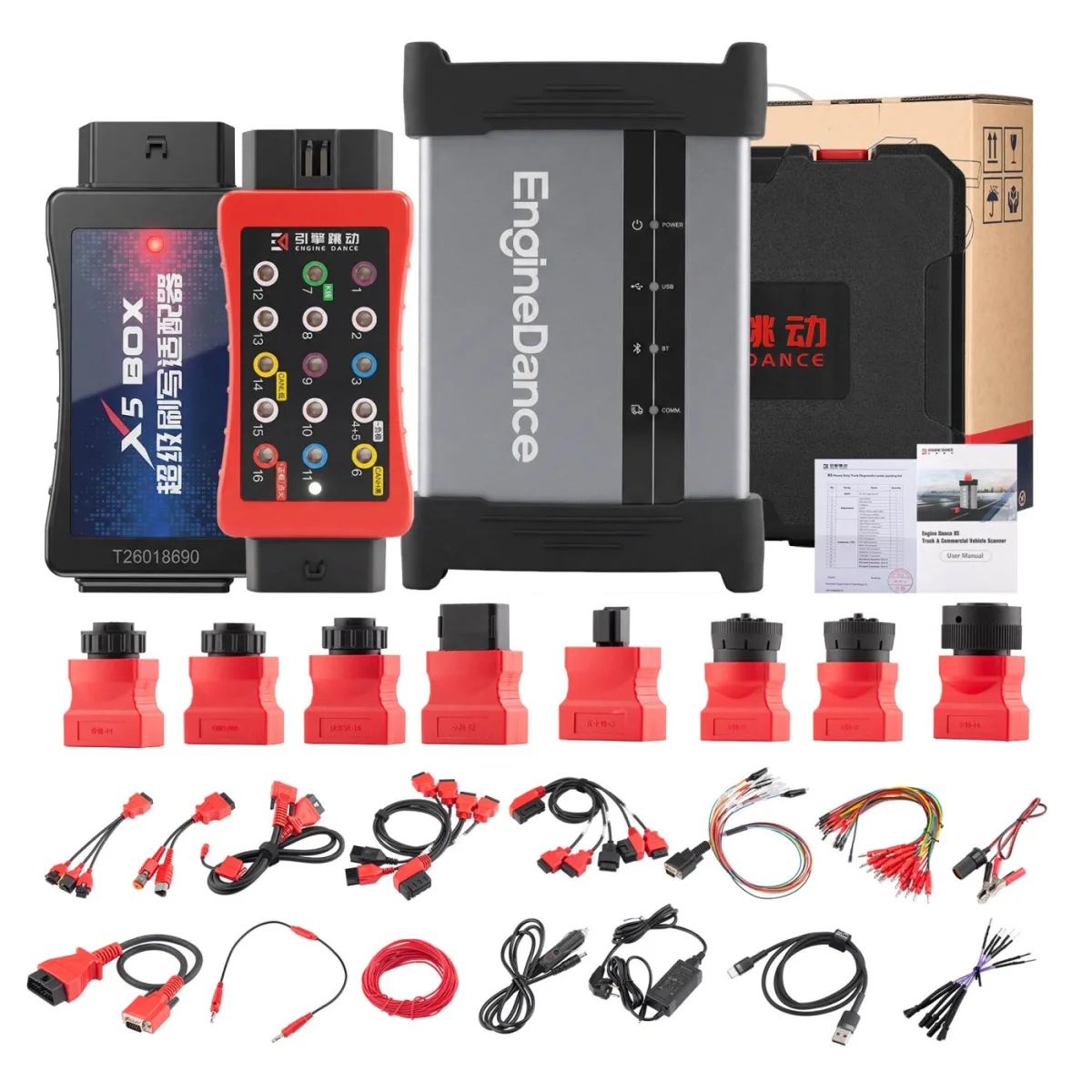

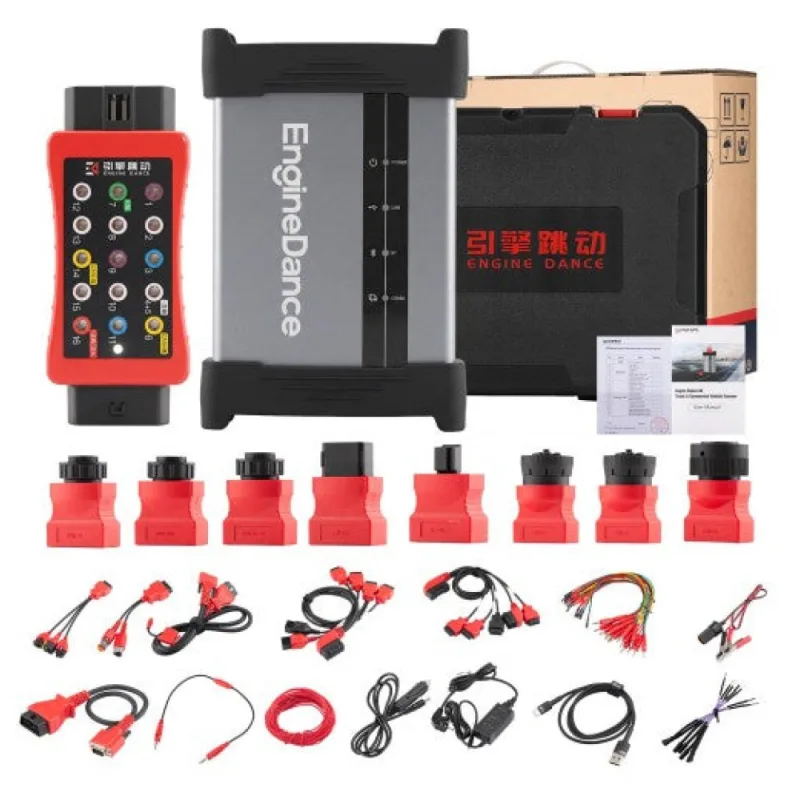

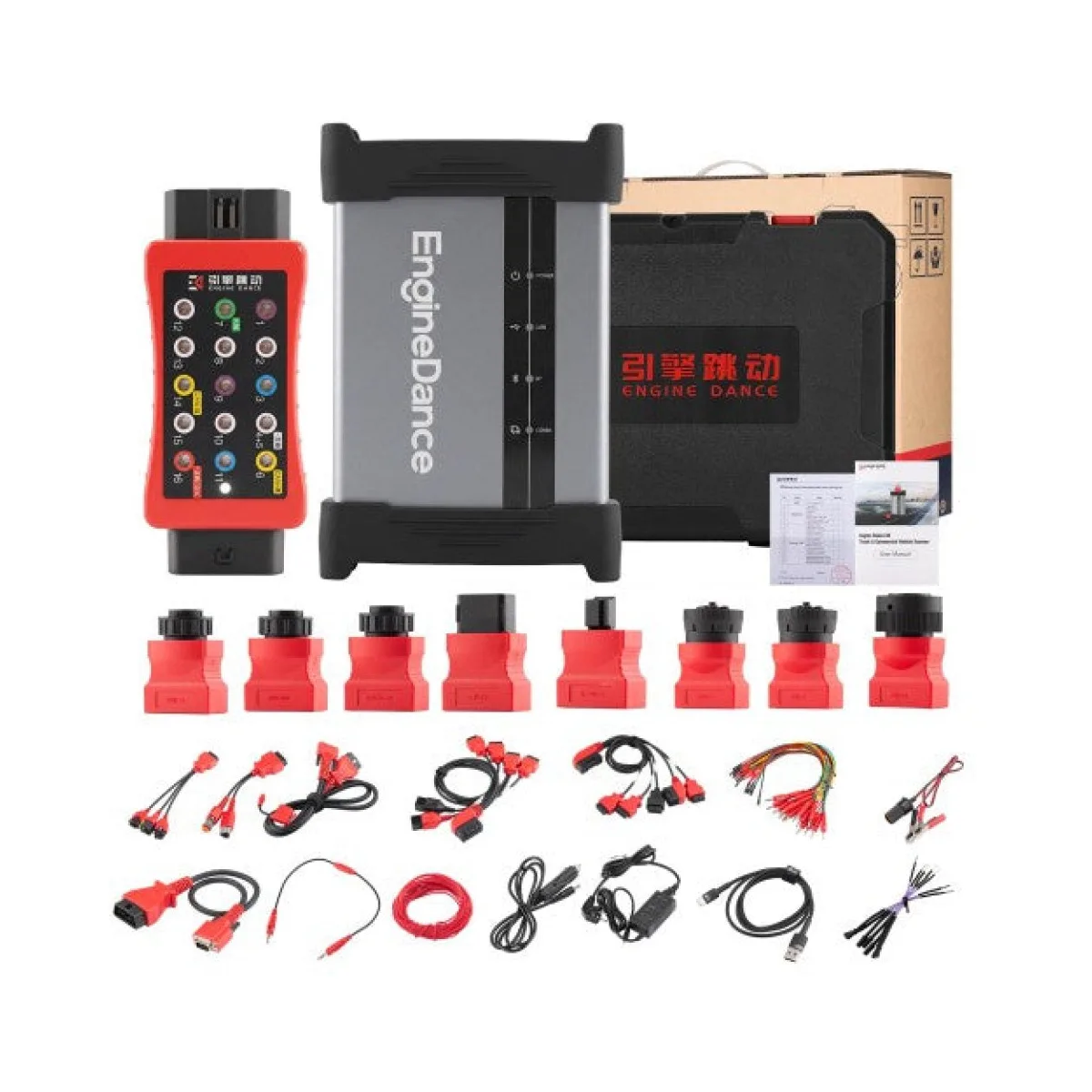

Full kit

VCI, the red connection box, eight brand adapters and cable sets.

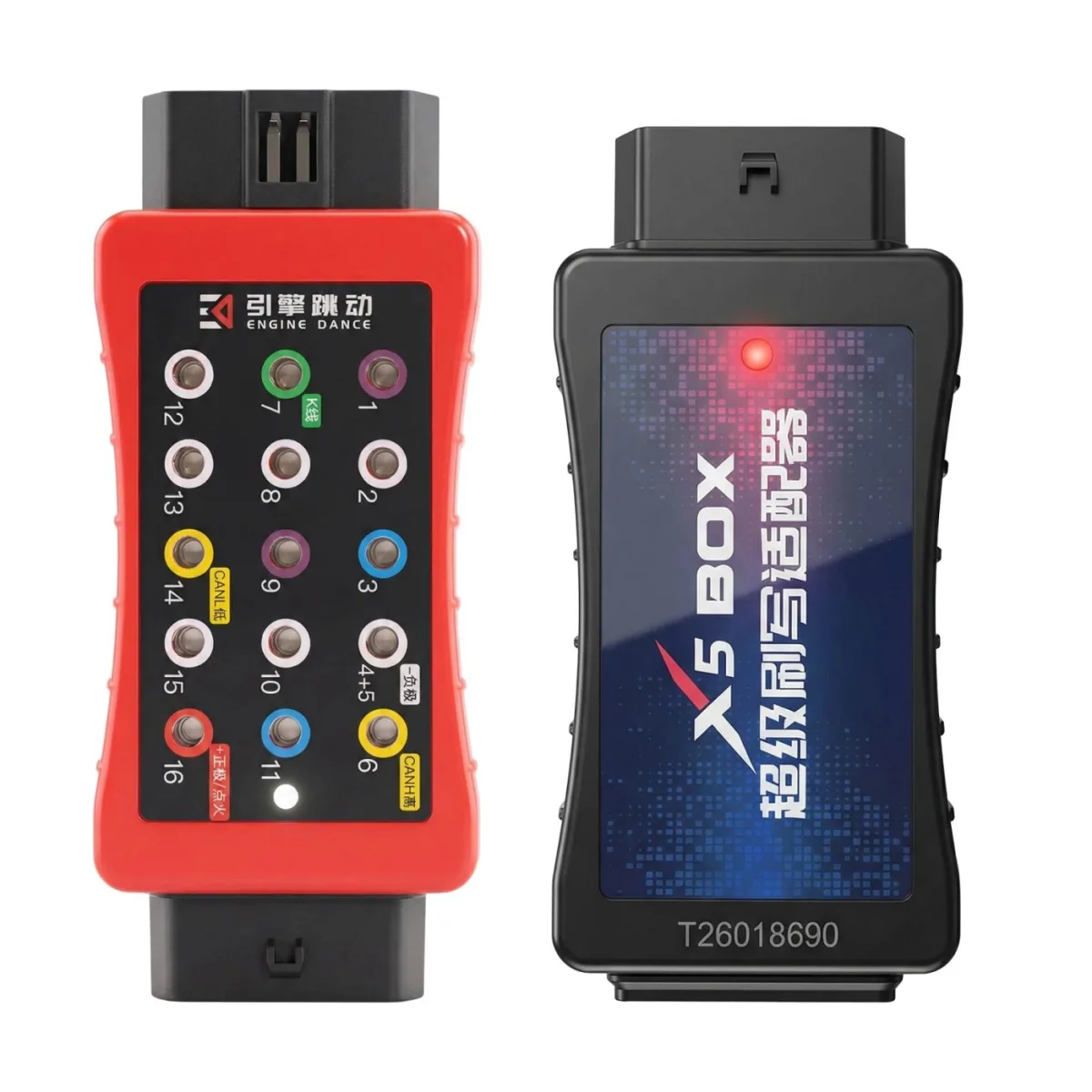

X5 BOX

The bench and boot unit in the full version, for work on a removed ECU.

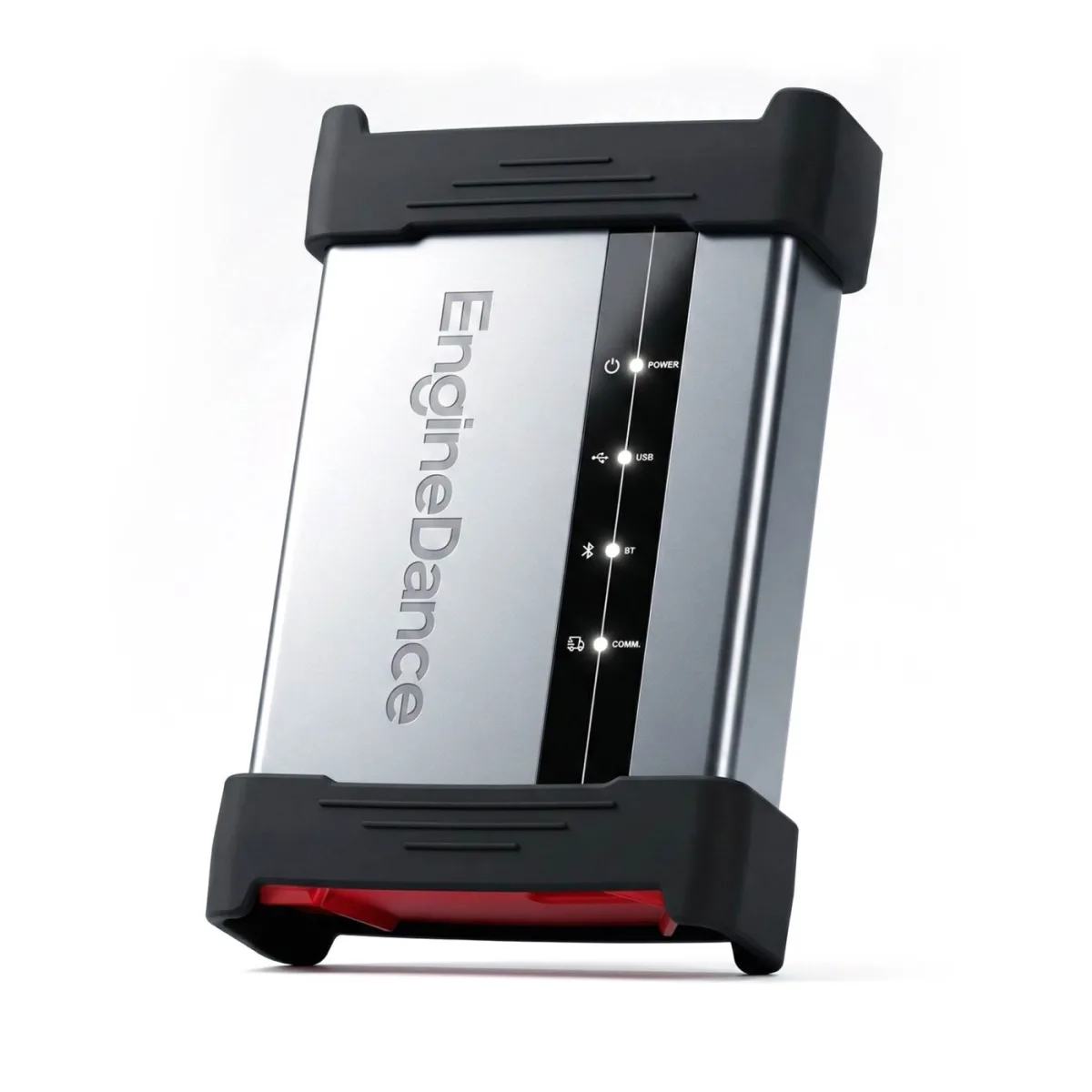

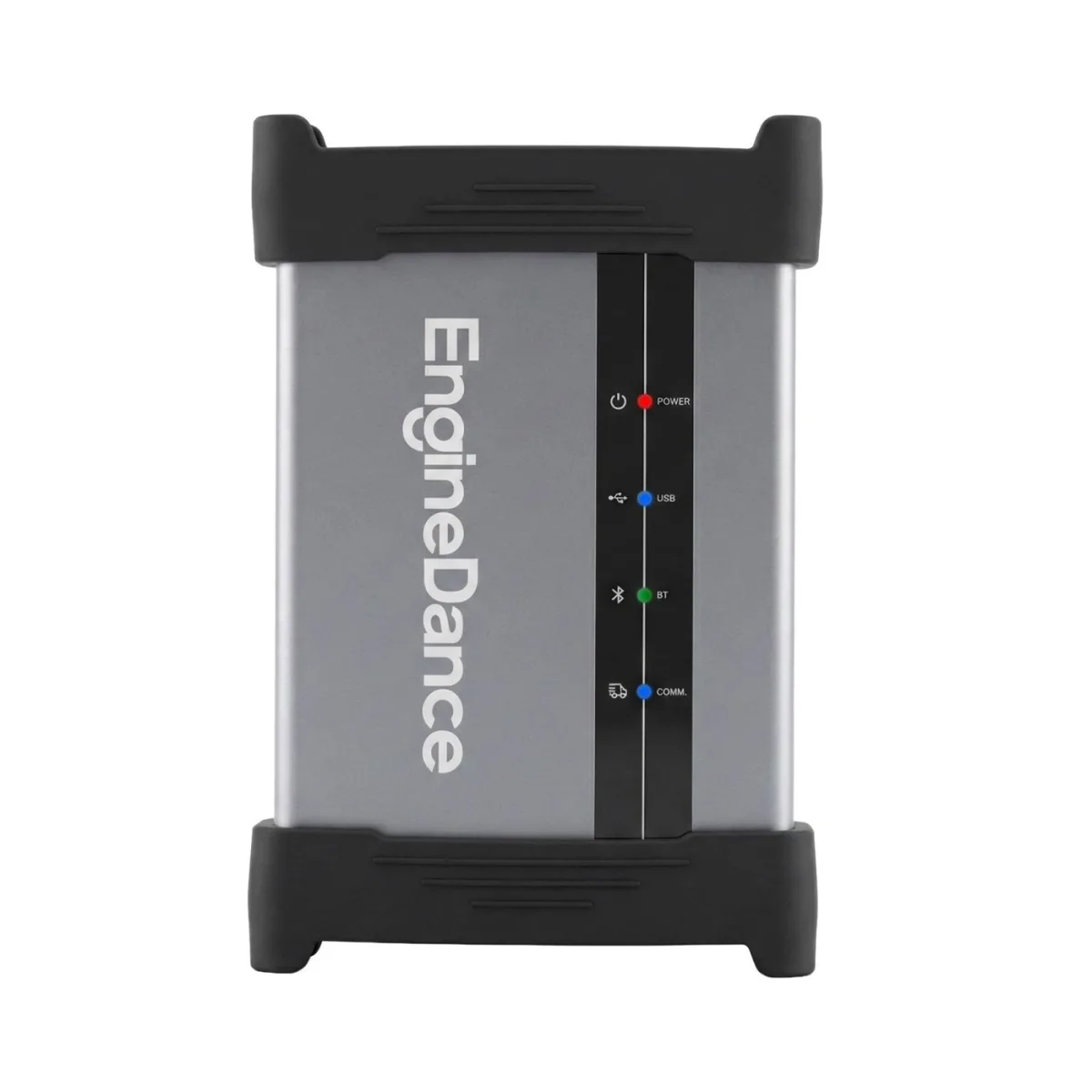

VCI

Separate indicators for power, USB, Bluetooth and communication.

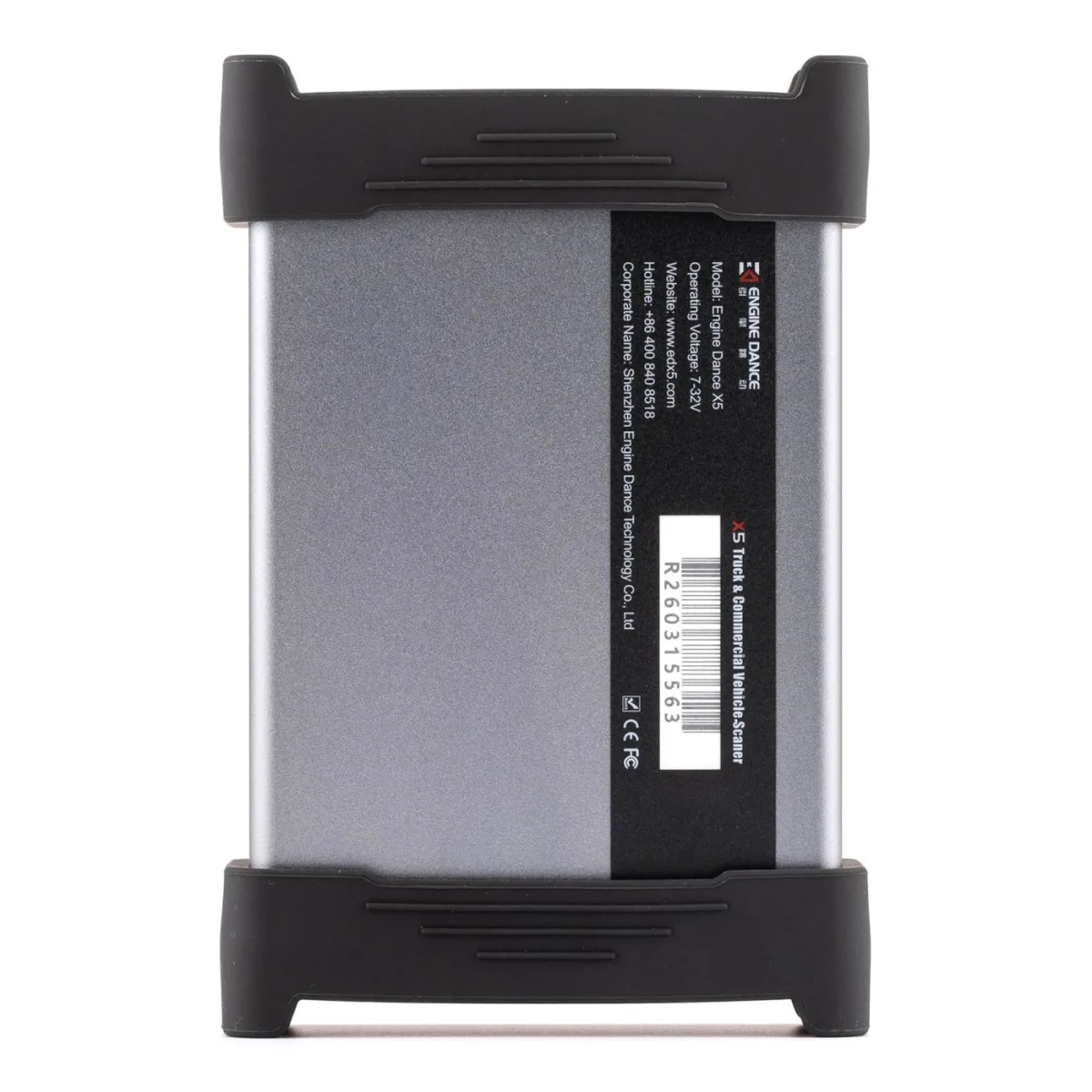

• Engine Dance X5 VCI — the alloy-housed main unit
• Connection box — colour-coded terminal row for bench and boot wiring
• Brand adapters — eight heavy-duty diagnostic socket connectors
• OBD and breakout cable sets
• Probe-tipped test leads
• Battery clamp cable — for external power
• USB Type-C cable
• User manual
• Hard carrying case

Who It Is For

• Heavy-duty workshops — truck, tractor-unit and bus service shops
• Fleet operators who want to solve DPF and AdBlue faults in-house
• Construction and agricultural machinery shops — Cummins, Perkins, Deutz and Komatsu powered machines
• Workshops doing chip tuning and ECU flashing on heavy duty
• Electronics shops doing ECU repair and cloning — bench and boot with the X5 BOX
