AutoTuner ECU Programming and Chip Tuning Tool

AutoTuner Slave ECU and TCU Programming Tool

AutoTuner is a professional ECU programming and chip tuning tool built to read and write engine control units (ECU) and transmission control units (TCU). It brings three methods together in one device: through the vehicle's OBD socket, on the bench with the unit removed and powered externally, and in boot mode with direct access to the processor. The Slave version on this page is for workshops that source their files: reading and writing are yours, file preparation belongs to the Master you work with.

What AutoTuner Does

Changing a vehicle's engine software means first reading that software out of the unit and then writing the modified version back. AutoTuner is the hardware that does both. It connects to a computer over USB and to the vehicle — or to a unit on the bench — with the cables supplied in the case.

Its scope is not limited to performance software. The same tool restores software after an ECU repair, recovers a unit left half-written by an interrupted flash, transfers data during unit replacement, and reads and writes transmission software. The manufacturer's compatibility list covers more than 23,000 control units.

How the Slave Version Works

The tool on this page is the Slave version. The file it reads out of a unit is encrypted, and only the Master you are linked to can open it. The Master edits the file and sends it back, and AutoTuner writes it to the unit.

Reading and writing are entirely yours; the only thing that comes from outside is the file itself. Preparing a tuning file is a separate skill and a separate investment — sourcing that part from a file provider is both faster and cheaper for a workshop starting out or running moderate daily volume.

Connection Methods: OBD, Bench and Boot

OBD

Reads and writes through the vehicle's OBD-II socket without removing the unit. The fastest and lowest-risk method and the first choice whenever the unit allows it. The armoured OBD cable in the case is for this.

Bench

The unit comes out of the vehicle and is powered on the bench. Used where OBD access is closed or writing over OBD would be risky. The universal box (ATP060 connection board) and universal cable give solder-free access to the unit's pins.

Boot

Puts the processor into boot mode for direct access to its memory. It needs a contact point on the board; the probe positioning kit and BGA MCU hook in the case exist for exactly that. For locked, updated or corrupted units, boot is often the only way in.

OBD and Bench after mail-in unlock

For some protected units the manufacturer offers a mail-in unlock: the unit is sent in once and opened. After that the same unit can be worked on normally over OBD or bench.

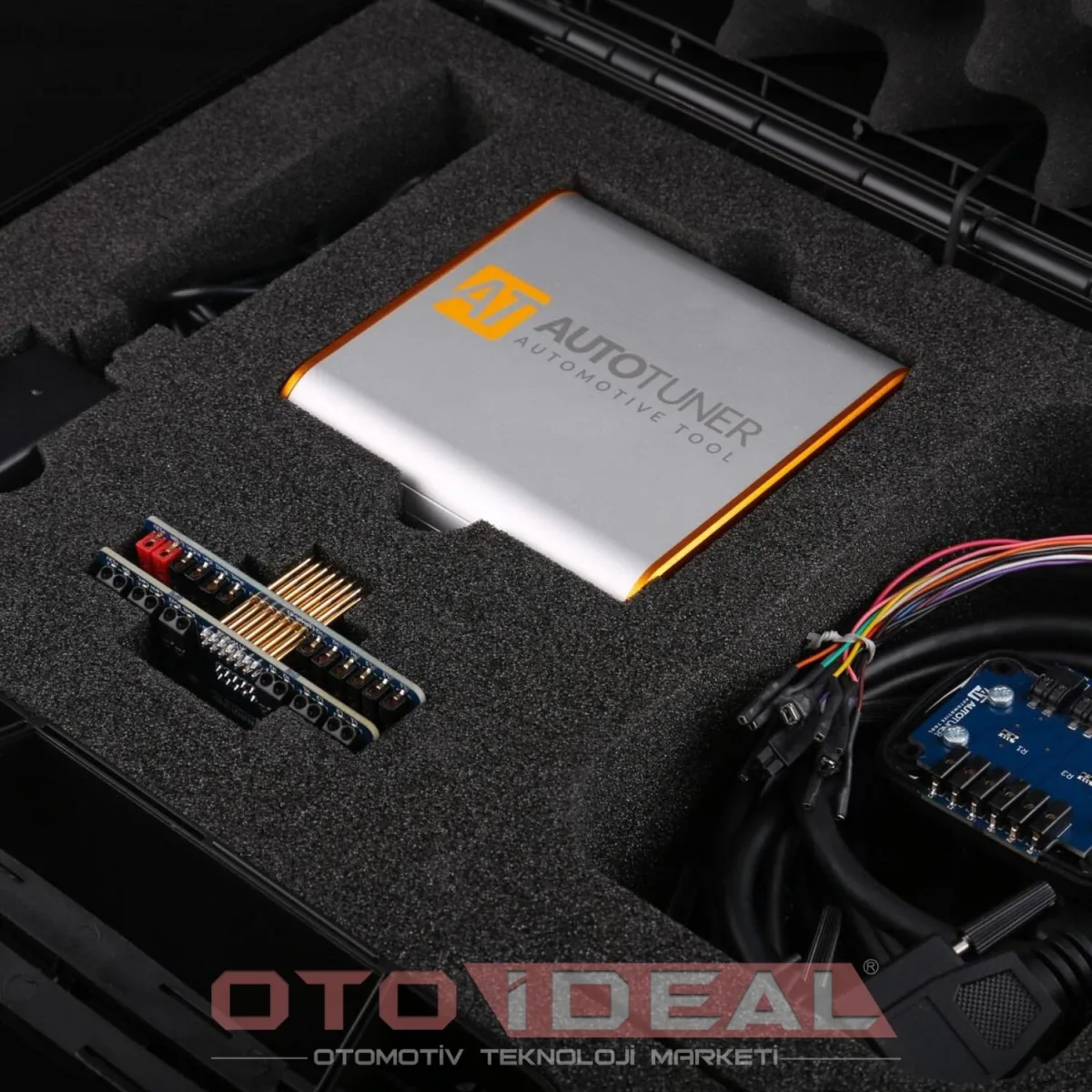

What Is in the Box

The tool

The main unit with its OBD and bench connectors.

Full kit

Carrying case, cables and adapters.

Bench mode

Working on a removed unit on the bench.

• AutoTuner main unit — 111 × 111 × 31 mm, 240 g
• USB key carrying the software link
• Universal cable + universal box for bench connection
• Universal cable for EDC16 and ME(D)9 units
• OBD cable — armoured, manufacturer standard
• USB cable with reinforced port
• 12 V power supply with European, Australian, US and UK plug heads
• Probe positioning kit — holds the contact point steady during boot work
• BGA MCU hook
• Banana cables
• Shockproof carrying case

Subscription and Updates: AutoTuner's Real Difference

When choosing an ECU programming tool, the purchase price is only part of the total cost. Most tools in this class run on an annual subscription or a credit system: after buying the hardware you pay every year for updates, and some protocols are sold as separate packages.

AutoTuner does not use that model. In the manufacturer's own words: no subscription, no credits, no feature locks; new vehicle coverage and software updates download free as they are released. The tool also carries a 5-year warranty.

The size of that difference is easy to see: on a subscription tool, three years of renewals add a substantial sum on top of the hardware price. On AutoTuner that line is zero. On the other hand, some subscription systems sell protocol packages modularly and so lower the entry price — which model suits you depends on how many years you plan to use the tool.

Software and Computer Requirements

The software interface is available in English, French, German, Spanish, Italian, Chinese, Japanese, Korean, Dutch, Portuguese, Armenian, Russian and Arabic.

Supported Vehicles and Units

• Cars
• Light commercials
• Motorcycles
• Trucks
• Tractors
• Jet skis
• Speed boats
• ATV / quads

Both ECU (engine) and TCU (transmission) units are supported. Coverage is defined unit by unit and grows with software updates; confirm support for the specific unit you work on before buying — the number printed on the unit is enough for us to check.

Price

The current price of the AutoTuner Slave on this page is [fiyat:auto-tuner-ecu-programlama-ve-chip-tuning-cihazi] including VAT, [fiyat-net:auto-tuner-ecu-programlama-ve-chip-tuning-cihazi] excluding VAT. Pricing follows the manufacturer's list price and the daily exchange rate.

AutoTuner or Another Tool?

The closest alternative in our catalogue is MagicMotorsport Flex. The two follow different philosophies: AutoTuner sells one package with everything included and no subscription; Flex sells licences per processor family, which can lower the entry price if you work in a narrow scope. Compare all options on our ECU programming tools page.

Who It Is For

• Chip tuning workshops that source files from a provider
• Electronics shops repairing ECUs and transmission units
• Workshops doing unit replacement, cloning and software recovery
• Fleet workshops working on trucks, tractors and marine engines
• Workshops entering this field and keeping entry cost under control
