The Genius is the next-generation ECU programming and chip tuning tool from the Italian manufacturer Dimsport. It brings together the company's two established tools — New Genius for serial read/write and New Trasdata for BDM, BOOT, JTAG and BAM access — in one rugged tablet. Its most obvious difference: it needs no computer. With its own operating system, its own battery and a 10.1-inch touchscreen, it works entirely on its own.

What The Genius Is and Why It Exists

For years a chip tuning workshop kept two separate tools on the bench: one for serial read/write over OBD, another for opening the unit and reaching its memory directly. Changing the type of job meant changing the tool, the cables and often the software.

The Genius was designed to end that split. OBD, BENCH and OPEN all live inside the same device, and you do not have to carry a laptop alongside it: the tool runs on its own and can work without an internet connection.

OBD, BENCH and OPEN

OBD

Serial reading and writing through the vehicle's OBD-II socket or a manufacturer-specific diagnostic connector, without removing the unit. The tool communicates over OBDII, K-Line, CAN-bus 2.0 and J1850.

BENCH

The unit is removed and powered on the bench, worked through its connector without opening the housing. Used where OBD access is closed or writing over OBD would be risky.

OPEN (boot)

The unit is opened and the board accessed directly — the BDM, BOOT, JTAG, NBD and BAM territory that belonged to New Trasdata. For locked or corrupted units it is often the only way in.

Master and Slave

The Genius comes in two versions and, as with every tool in this class, the difference is authority over the file. A Master receives the file unencrypted, edits and writes it, and can supply its own Slave network. A Slave costs less and sends what it reads to its linked Master, writing the processed file when it comes back.

Protocol Packages: You Choose the Scope

Coverage is not one all-inclusive package. Alongside the hardware, protocol packages are activated per vehicle category, so a workshop that only works on tractors does not pay for truck protocols.

• Cars and LCV
• Trucks, buses and heavy duty
• Tractors and agricultural machinery
• Motorcycles and ATV
• Marine
• All vehicles

One year of updates and technical support is included with the first protocol purchase. After that, renewal is per category. If the subscription is not renewed the tool keeps working; only new protocols and support stop.

Your Existing Cables Keep Working

For a workshop that already owns Dimsport equipment this is one of the most important points: The Genius is compatible with New Genius and New Trasdata cables. The connector and cable set you built up over the years does not go in the bin — and a cable set often rivals the cost of the tool itself.

Specifications

What Is in the Box

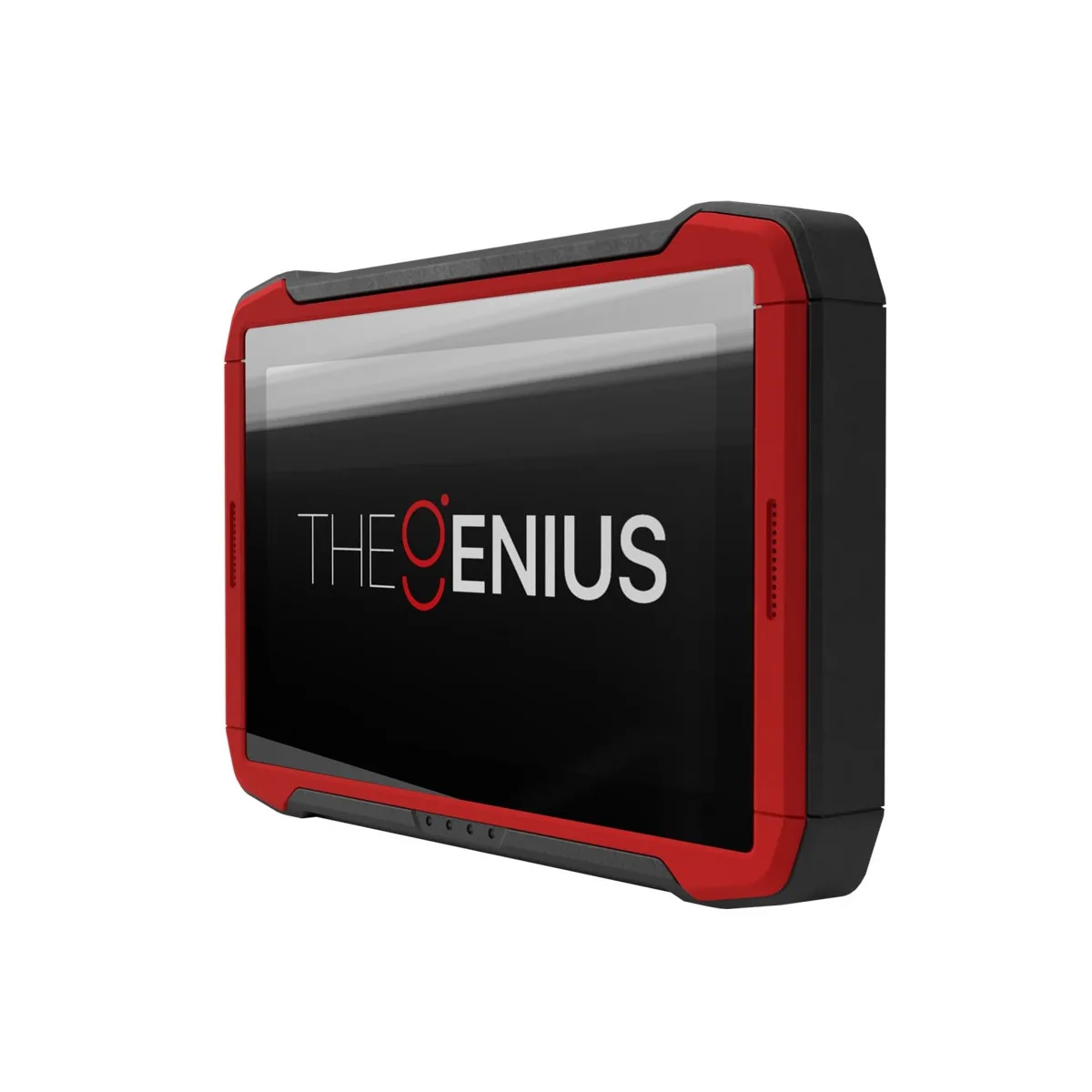

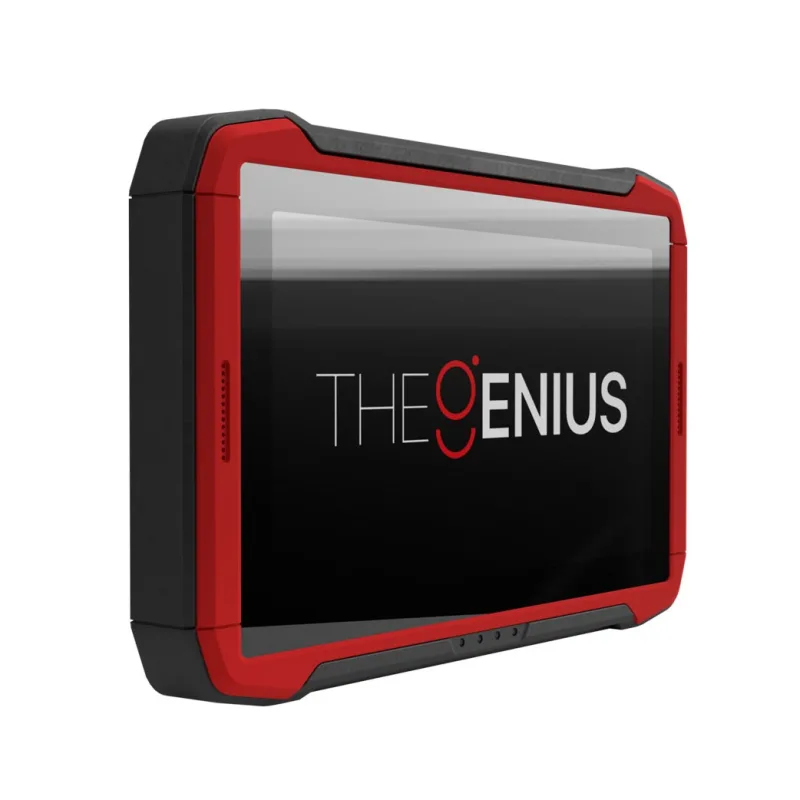

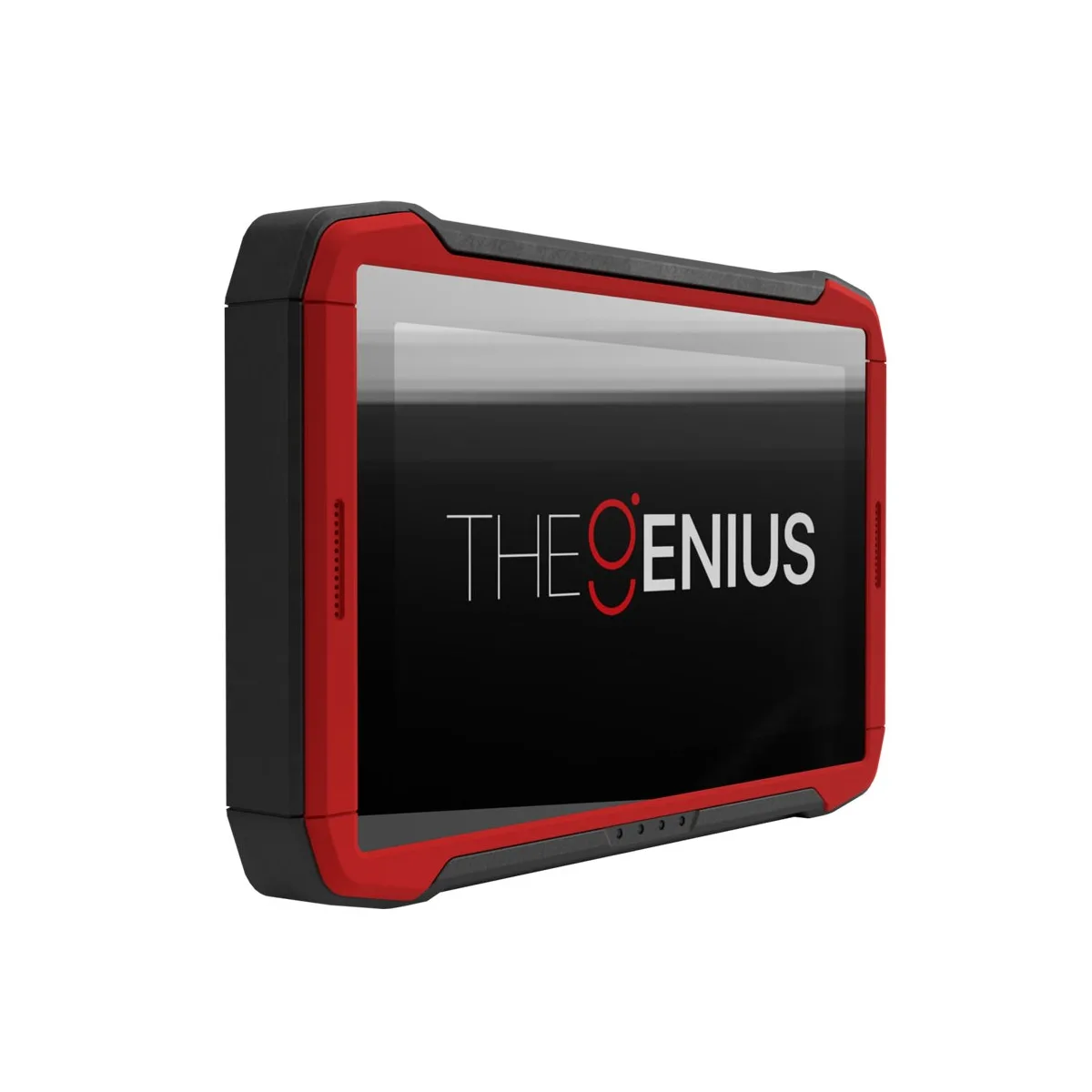

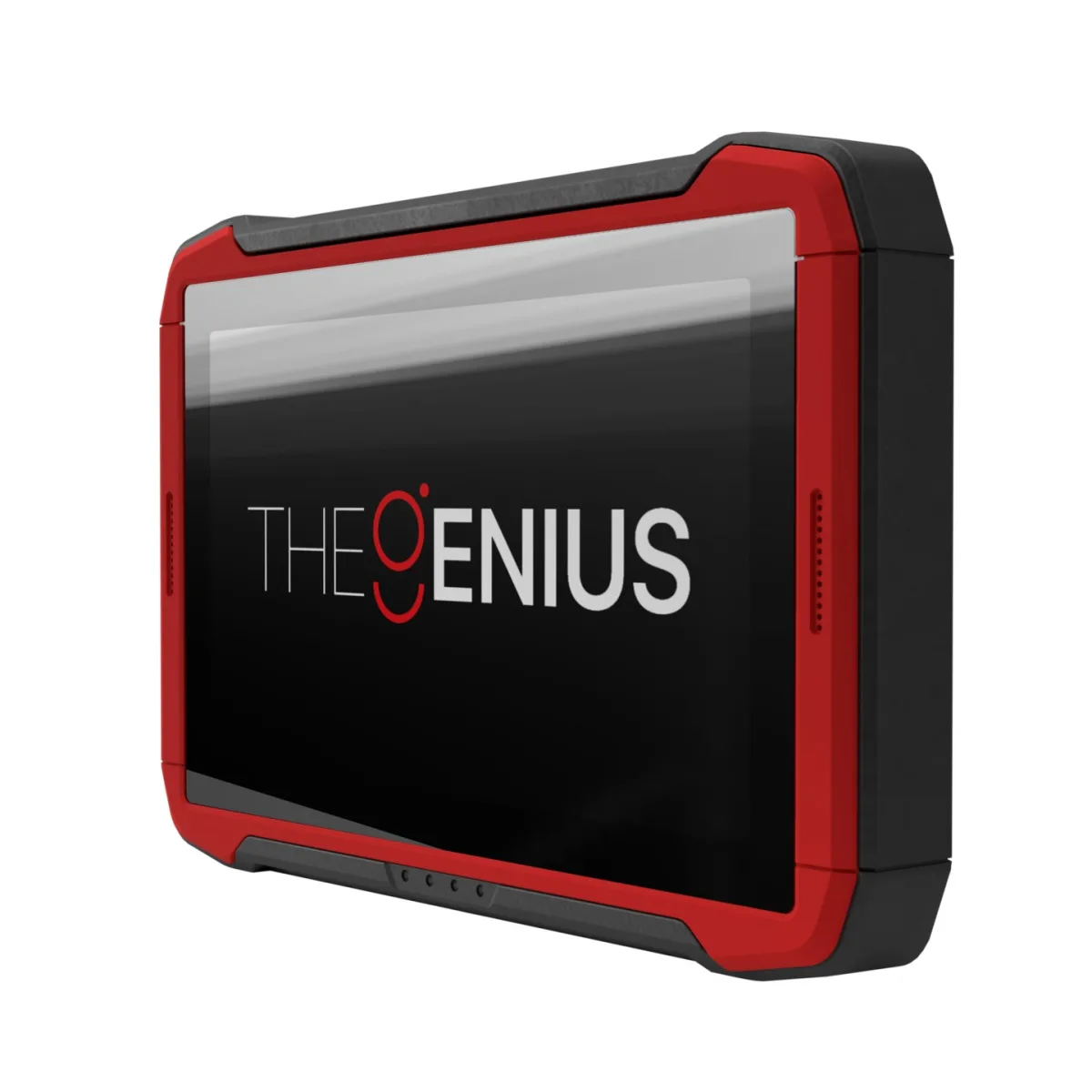

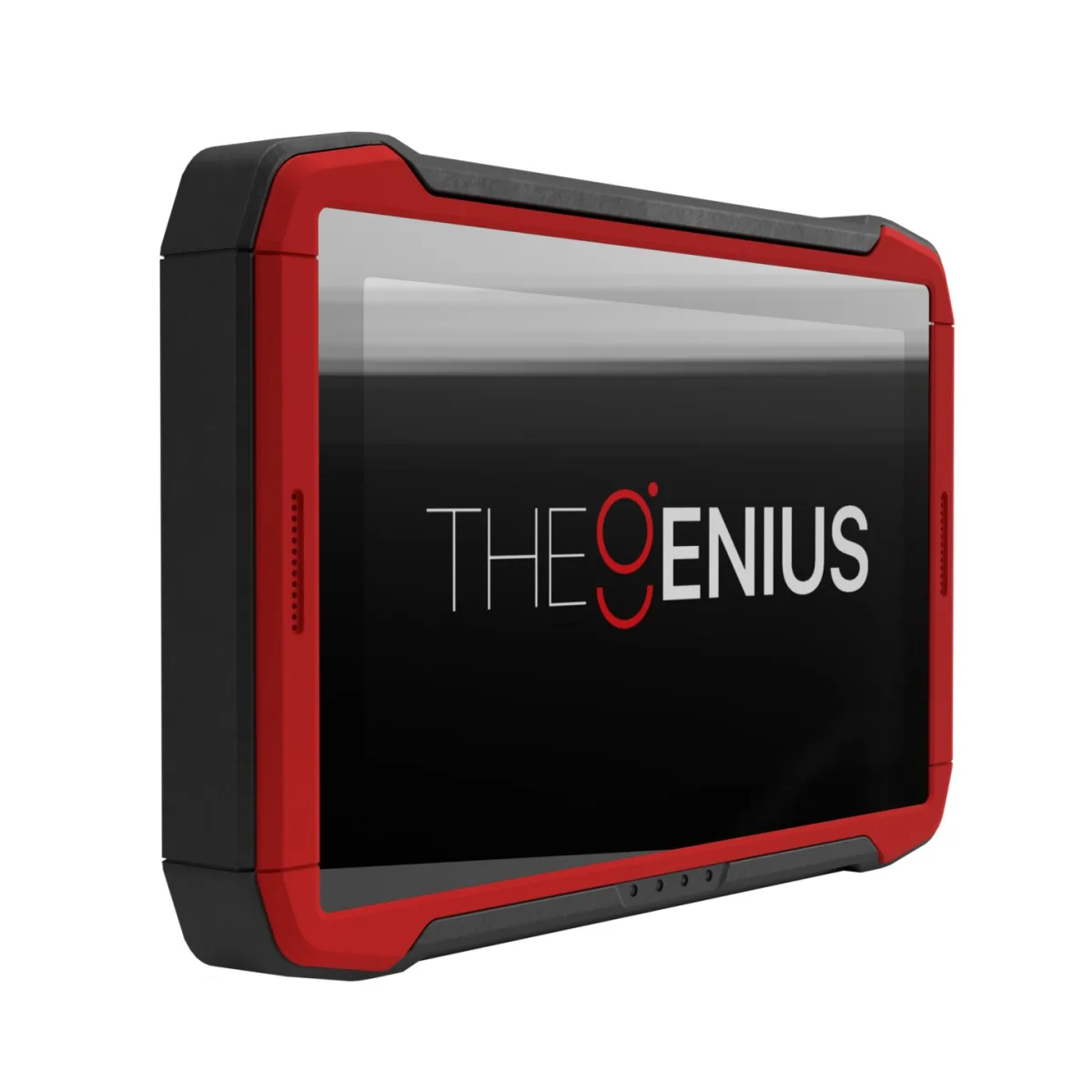

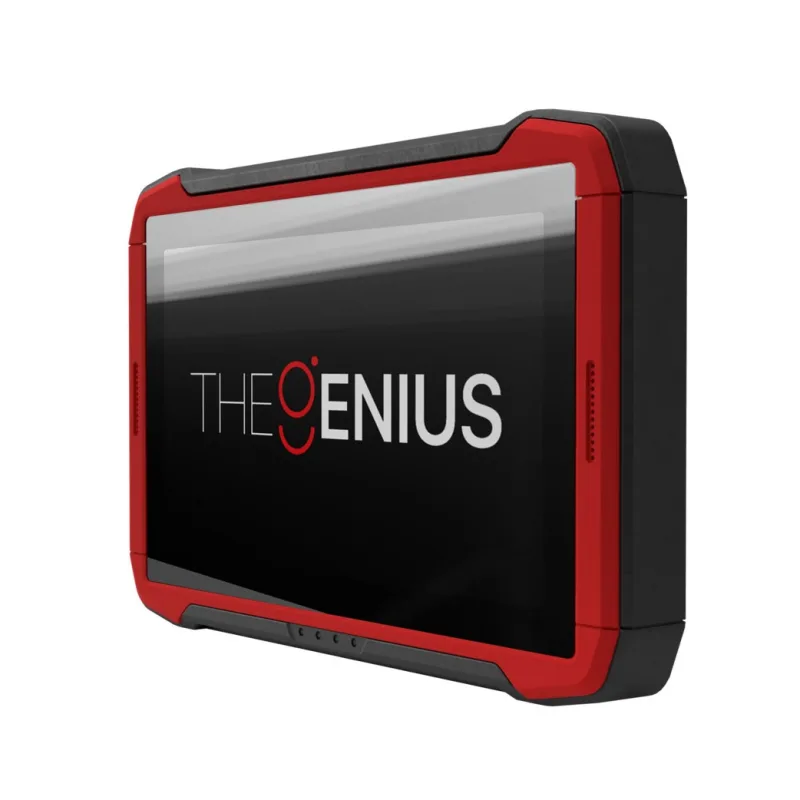

The tablet

A 10.1-inch touchscreen that works without a computer.

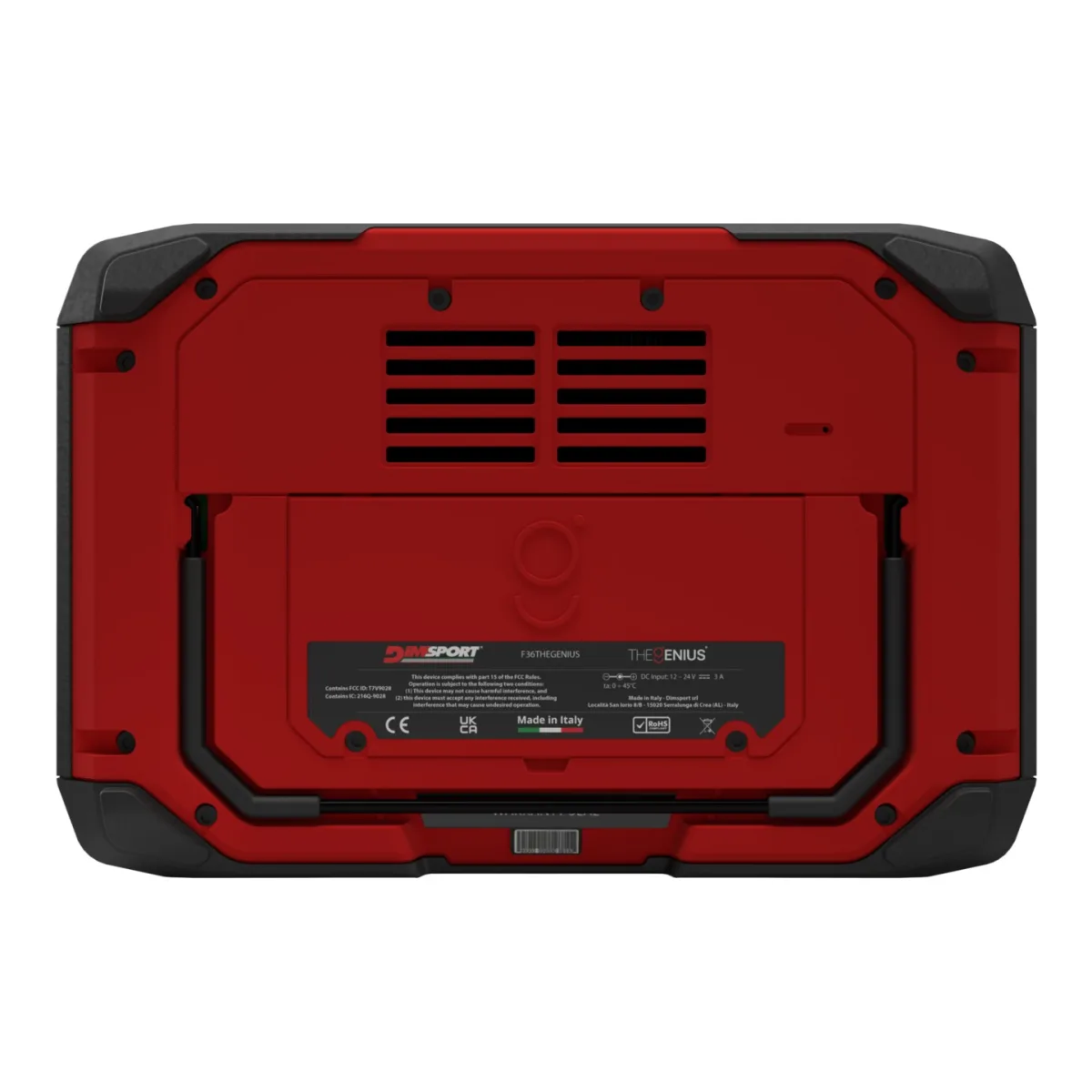

Rear panel

Product code F36THEGENIUS, 12–24 V supply, made in Italy.

• The Genius console
• Dimsport dongle (in the Master kit)
• Power feeding kit with international plugs
• USB cable for PC connection
• OBDII standard connector
• Universal wiring for pin-to-pin connections
• Power cable from the battery poles
• Touch-screen pens (set of 3)
• Protective ABS carrying case with foam insert

The Genius, New Genius and New Trasdata

Who It Is For

• Mobile chip tuning technicians who do not want to carry a laptop
• Workshops already running New Genius and/or New Trasdata who want one tool
• Fleet workshops on tractors, trucks and construction machinery
• Electronics shops doing ECU repair, cloning and software recovery
• Workshops that want to buy coverage in steps rather than all at once
