TOPDON ONE Plus Diagnostic and ECU Programming Tool

TOPDON ONE Plus Diagnostic and ECU Programming Tool

TOPDON ONE Plus is the top tier of the ONE range, and what separates it from the model below fits in one sentence: the tool itself does ECU programming. On BMW and VAG vehicles it programs the engine (ECM), airbag (SRS), ABS and transmission (TCM) units without any third-party software. It runs on Android 12 with a 10.1-inch LED screen and an 8-core processor.

Coding Versus Programming

Choosing the right tool is impossible without this distinction, so let us settle it up front:

A blank unit will not run on coding alone — the correct software has to go in first. A workshop that cannot do that step cannot finish the replacement and has to send the car to a dealer. Bringing that step back into the workshop is what the ONE Plus exists for.

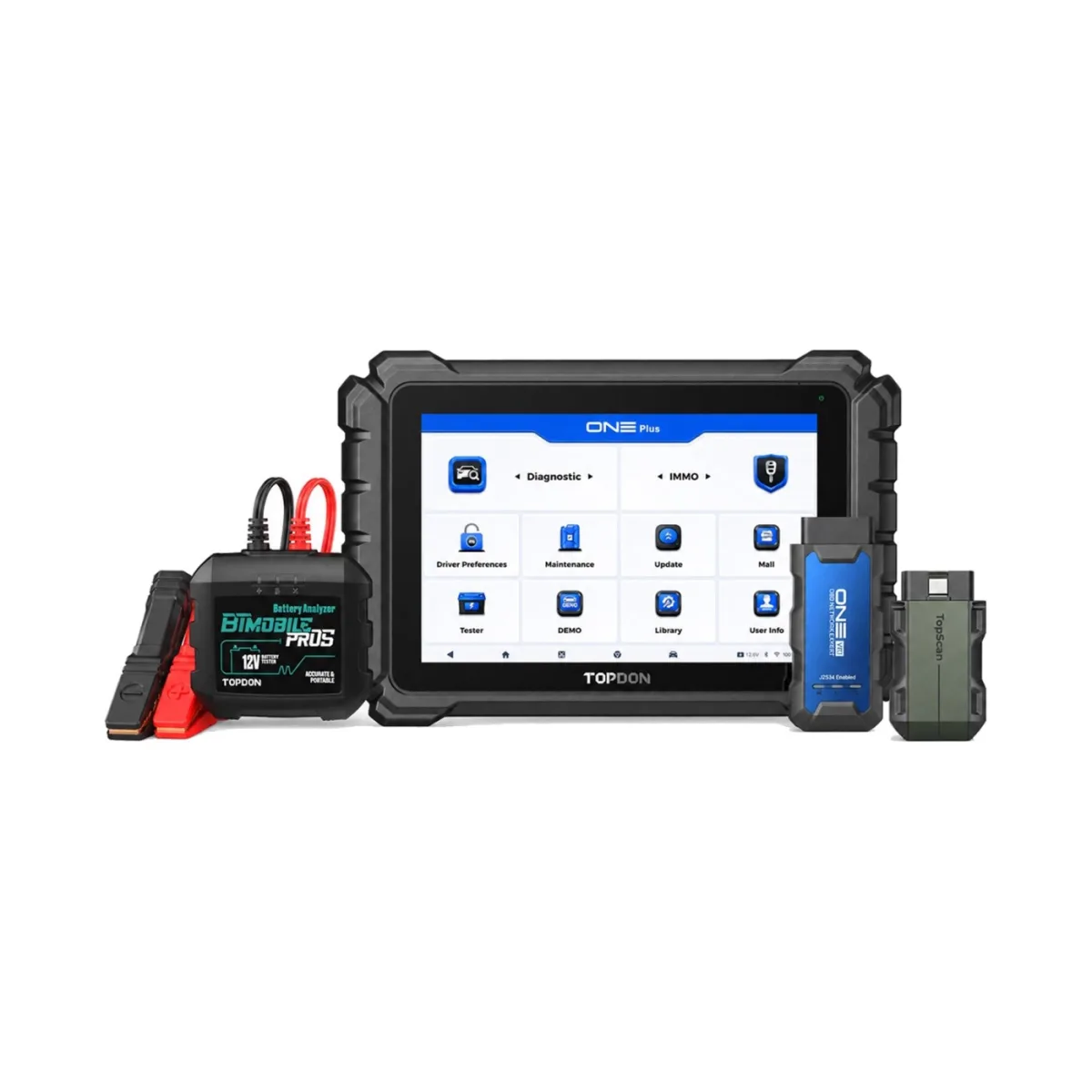

Three Devices in One Box

The least-discussed part of the ONE Plus package changes daily work directly: it is not one device but three.

The third is worth more than it looks: a significant share of the faults that arrive for diagnosis start with a weak battery. Low voltage generates dozens of unrelated-looking fault codes. Measuring the battery before starting is the cheapest way to avoid replacing the wrong part — and that device is in the box.

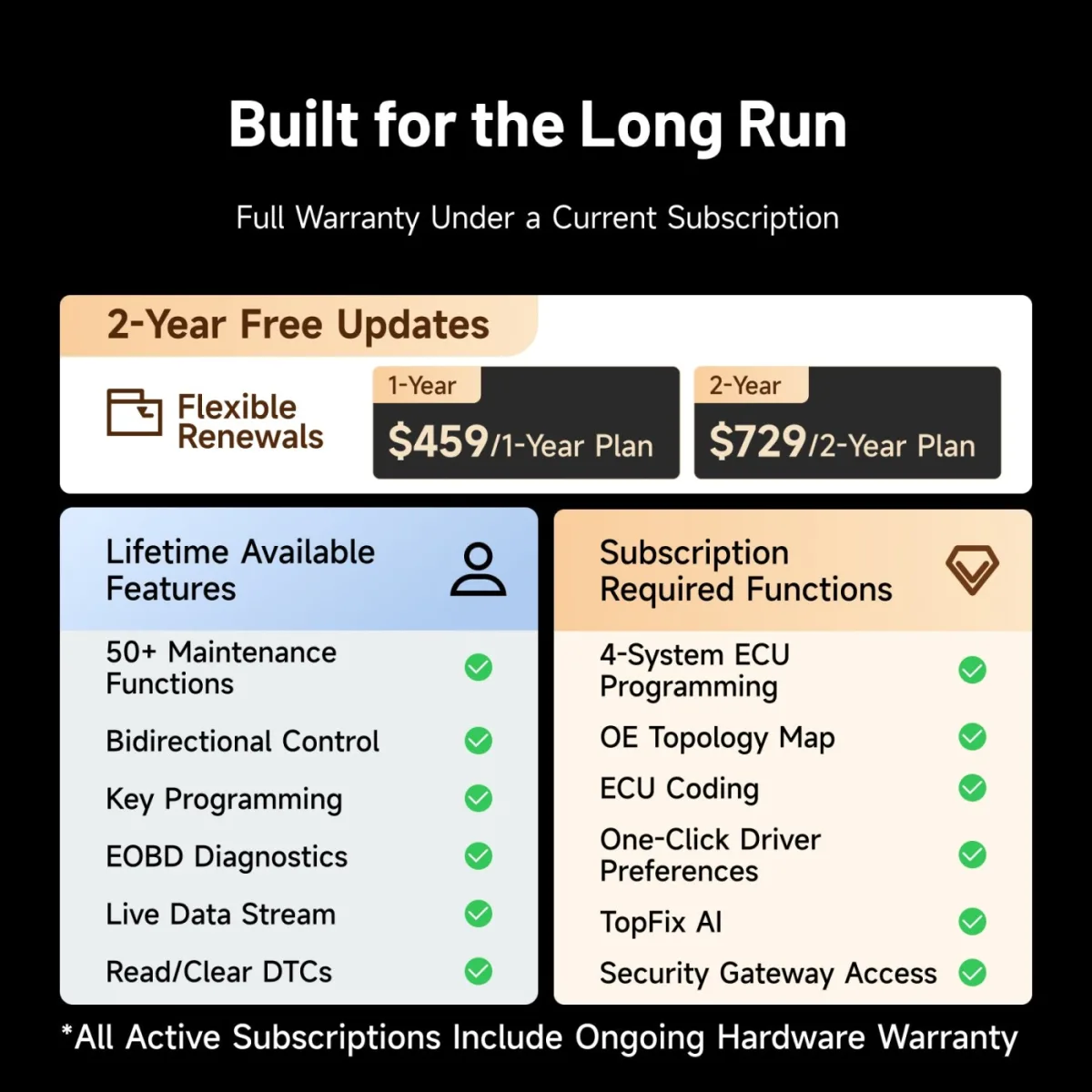

What Keeps Working, and What Needs a Subscription

The most common question in this product class is "what happens when the subscription runs out?" TOPDON publishes the answer, and we pass it on with the same clarity:

So the tool does not shut down when the subscription ends: diagnostics and service work carry on, while coding and programming stop. The manufacturer also ties warranty to it — hardware warranty continues for as long as the subscription is active.

Diagnostics: What It Shares With the ONE

• OE-level full-system diagnostics — engine, transmission, ABS, airbag, body and comfort modules
• Bi-directional control — command an actuator and watch it respond, diagnosing without removing parts
• OE topology map — the network diagram of the units; narrows the search on communication faults
• 12-channel live data — watching how systems interact on one screen
• CAN FD and DoIP — the communication backbone of newer vehicles
• Security gateway access — write permission on FCA, Renault, Nissan and other SGW models
• TopFix AI — an AI-assisted repair assistant that suggests fixes from the fault code
• IMMO and key programming — on Asian and domestic vehicles

More Than 50 Service Functions

• Dynamic ADAS calibration
• A/C learning
• Cylinder power balance test
• EGR adaptation
• Gearbox matching
• AFS reset
• AdBlue reset
• Oil reset
• EPB reset
• BMS reset
• Throttle adaptation
• DPF regeneration
• ABS bleeding
• Injector coding

Specifications

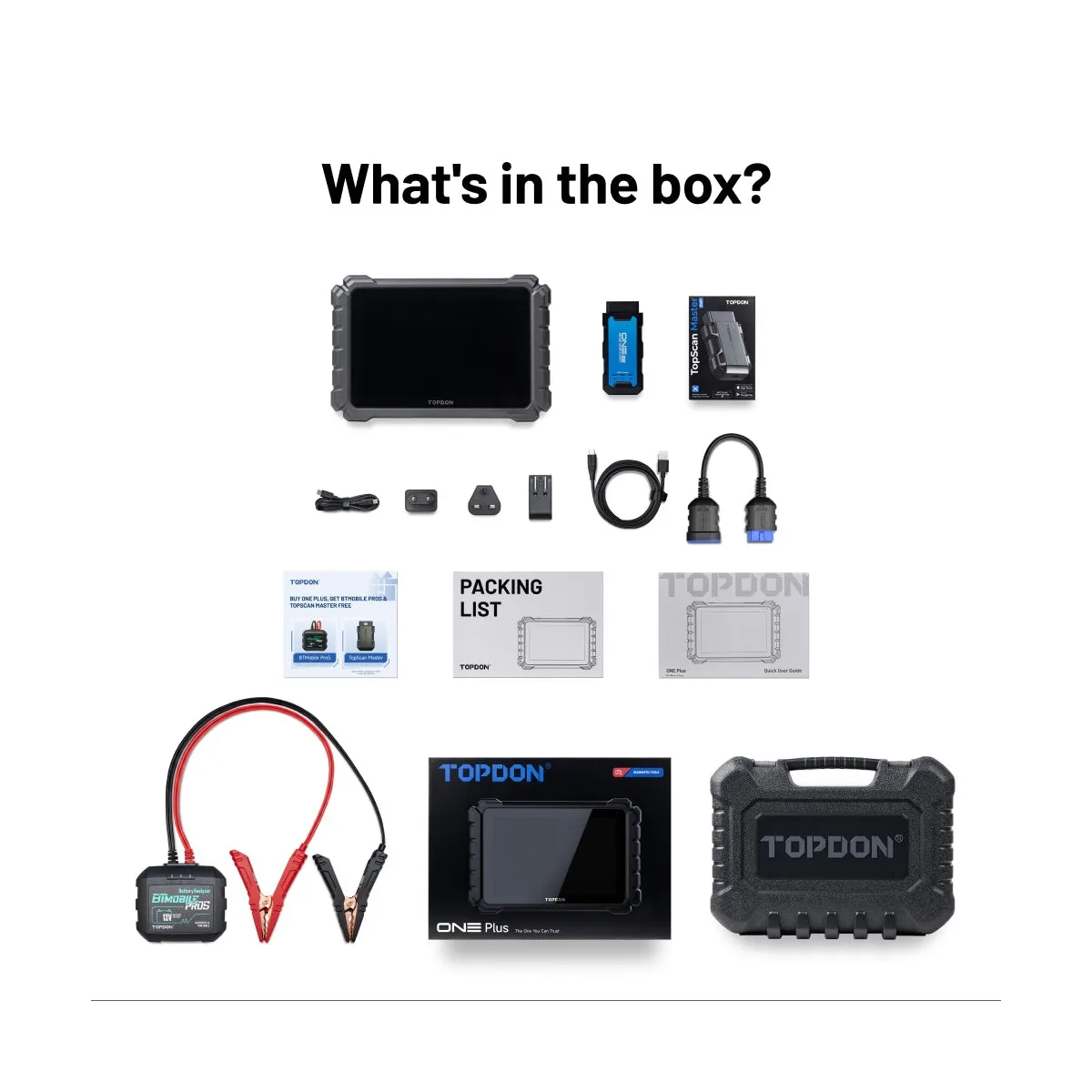

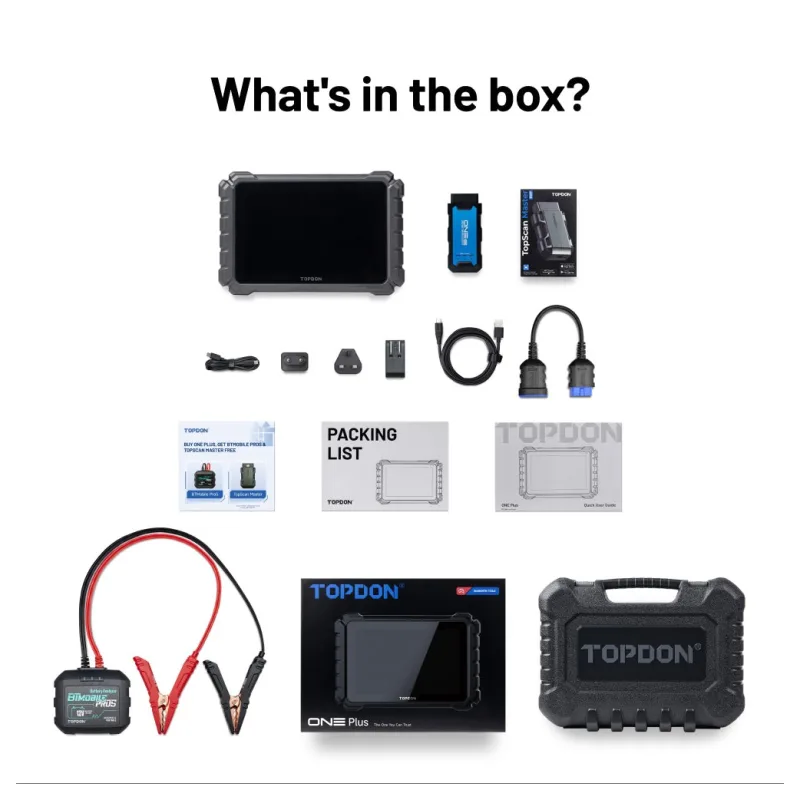

What Is in the Box

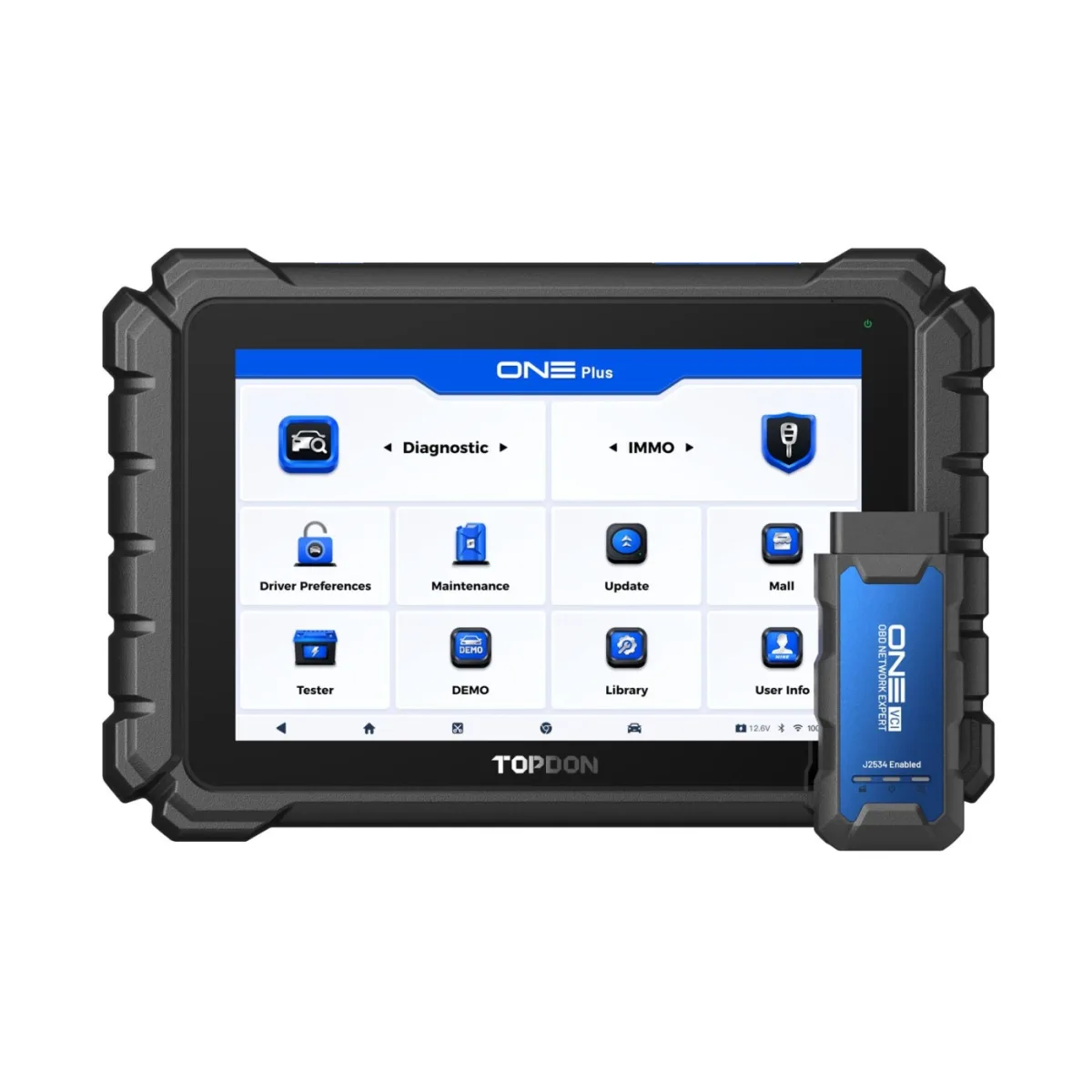

Tablet and VCI

A 10.1-inch LED tablet and the J2534-compliant wireless VCI.

Three devices

Tablet + TopScan Master dongle + BTMobile ProS battery tester.

Box contents

Every item on the manufacturer packing list.

ONE Plus or ONE?

One question decides it: do you want to finish programming in-house after a unit replacement? If yes, the ONE Plus. If not, the ONE is the more economical choice.

Who It Is For

• Workshops working mainly on BMW and VAG that want to finish unit replacement and programming in-house
• Independent workshops trying to win back jobs they currently send to dealers
• Shops doing ADAS calibration, DPF regeneration and injector coding
• Businesses planning to run OE software over J2534 later
• Technicians who want battery and charging tests to be part of the diagnostic routine
