TOPDON ONE is the middle tier of the ONE range the brand introduced in 2026. It carries a 10.1-inch screen, an 8-core 2.0 GHz processor and a 10,000 mAh battery — but the decision that sets it apart from its class is that the wireless VCI runs over Wi-Fi instead of Bluetooth. That single choice measurably speeds up both data transfer and ECU communication.

The Wi-Fi VCI, in Numbers

The link between the tablet and the VCI plugged into the car is almost always Bluetooth. TOPDON ONE moved it to Wi-Fi. The manufacturer's own measurement:

Where does that show up in daily work? In live data and in software loading. Over Bluetooth, watching 12 parameters at once makes the graph stutter; over Wi-Fi the stream stays smooth. Not dropping the link during a long programming operation is also a direct function of that bandwidth.

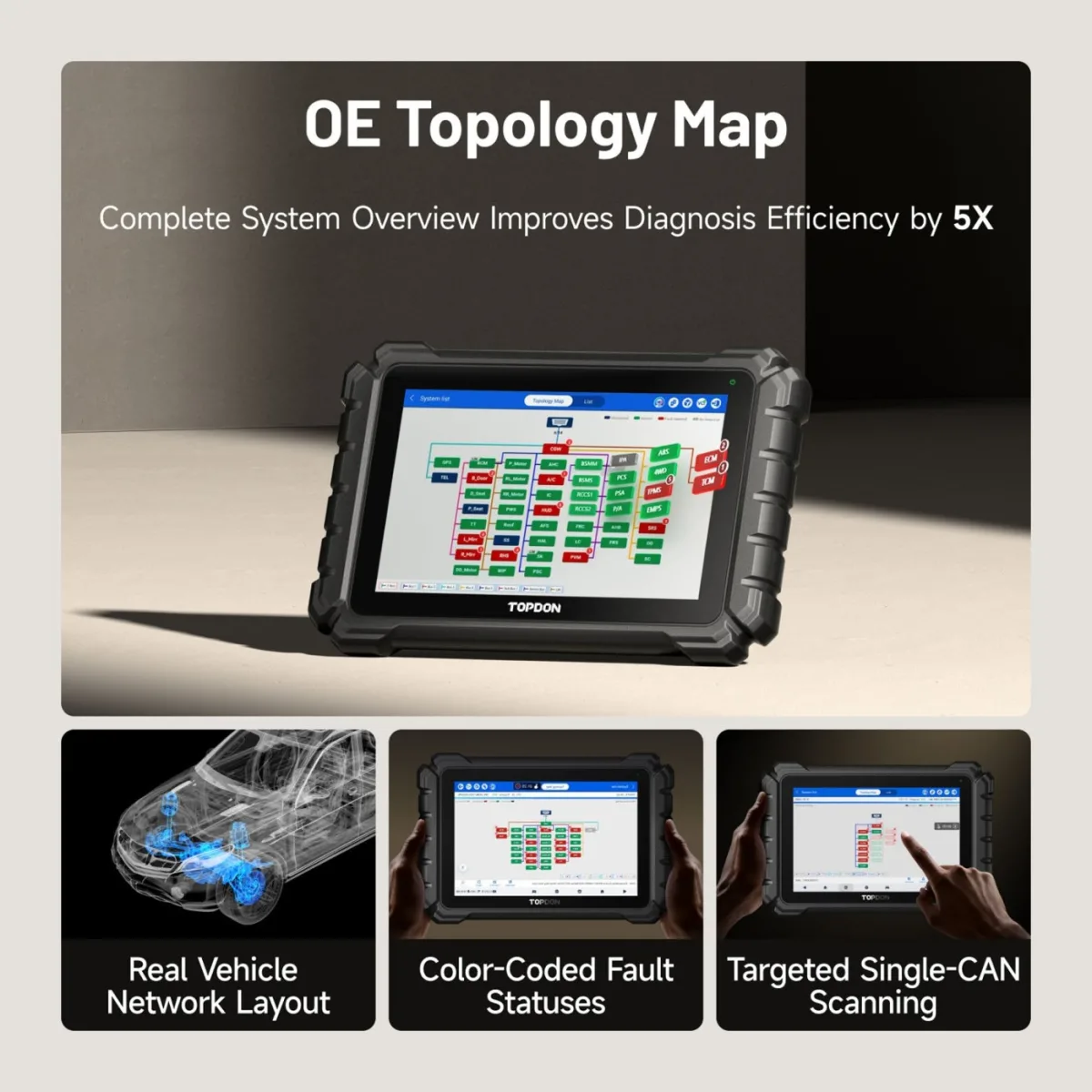

The OE Topology Map

A modern vehicle has 40 to 70 control units talking to each other over several separate buses. A conventional scan tells you which unit has a fault code; the topology map shows how the units are connected.

The practical value is in communication faults. If five units all report "no communication", the map shows the node they share and the search area narrows immediately. Knowing where to look before removing a single part is what shortens diagnostic time most.

ECU Coding and J2534 Programming

These two get confused often, so it is worth separating them:

CAN FD, DoIP and the Security Gateway

Three abbreviations decide whether a tool is usable today and over the next five years:

• CAN FD — the faster successor to classic CAN. A tool without it cannot connect to vehicles that have moved to that bus.
• DoIP — diagnostic traffic over Ethernet. Common on current JLR, VAG and BMW models.
• Security gateway (SGW) — the layer FCA, Renault and Nissan use to lock write operations. TOPDON ONE supports gateway access on those vehicles.

SGW matters especially: on a locked vehicle a tool can read fault codes but not clear them, and cannot run actuator tests. Without gateway access, what you can do on those cars is cut in half.

More Than 50 Service Functions

Service functions are the revenue-earning side of diagnostics. What TOPDON highlights on the ONE:

• Dynamic ADAS calibration
• A/C learning
• Cylinder power balance test
• EGR adaptation
• Gearbox matching
• AFS reset
• AdBlue reset
• Oil reset
• EPB reset
• BMS reset
• Throttle adaptation
• DPF regeneration
• ABS bleeding
• Injector coding

Two of these are uncommon at this price point: the cylinder power balance test and A/C learning — the first for vibration and rough-idle complaints, the second after air-conditioning work.

Specifications

What Is in the Box

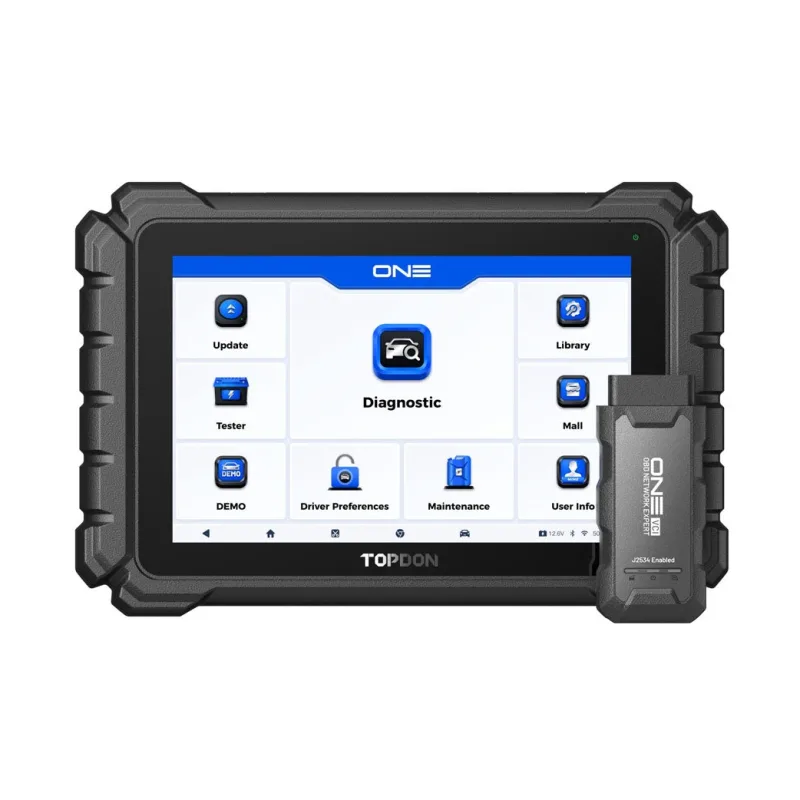

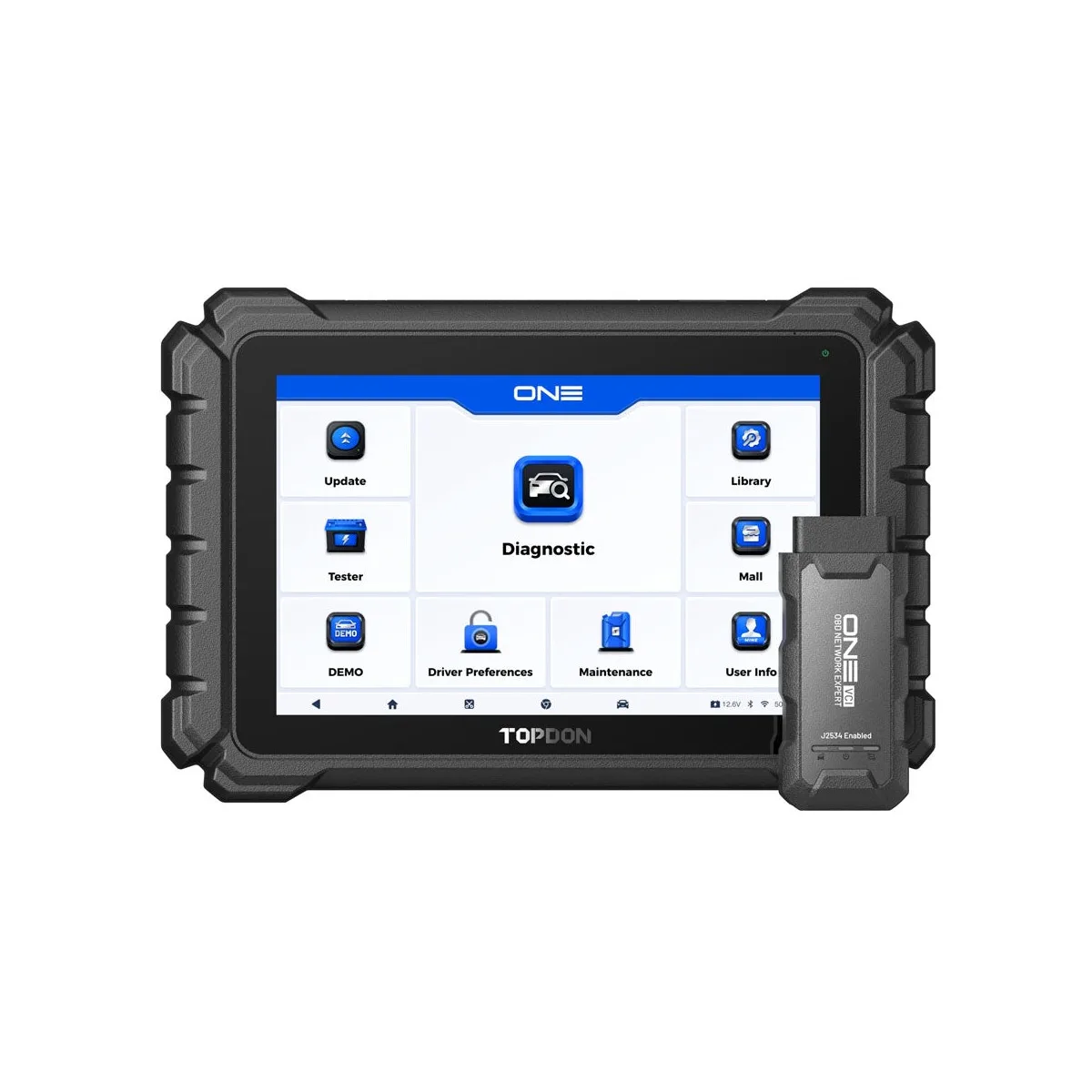

Tablet and VCI

A 10.1-inch tablet and the J2534-compliant Wi-Fi VCI.

Topology map

An OE-level diagram of how the modules connect.

J2534 Pass-Thru

Running the manufacturer OE software through this VCI.

• TOPDON ONE tablet
• Wireless VCI — J2534 compliant
• Charger
• Diagnostic extension cable — for hard-to-reach OBD2 sockets
• USB-C to USB-C cable
• USB-A to USB-C cable
• Quick user guide and packing list
• Carrying case

ONE or ONE Plus?

It comes down to one question: do you need to finish programming in-house after a unit replacement? If yes, the ONE Plus. If diagnostics, coding and service functions are enough, the ONE is the right tier.

Who It Is For

• Independent multi-brand workshops with a high daily job count
• Technicians losing time on communication faults who need a topology map
• Workshops seeing security-gateway locked vehicles from FCA, Renault and Nissan
• Businesses planning to run OE software over J2534 later
• Shops that want to do ADAS calibration and DPF regeneration in-house
