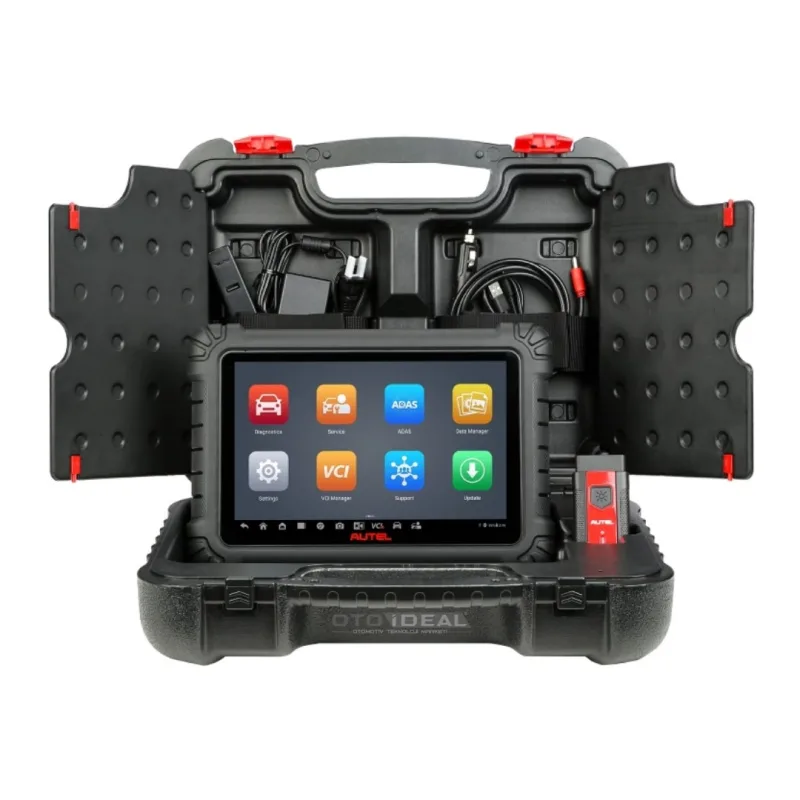

Autel Maxisys 906 MAX Diagnostic Tool Autel Maxisys 906 MAX Diagnostic Tool 2

1 / 2

Autel Maxisys 906 MAX Diagnostic Tool

Autel Autel
Model
autel-906-max
Availability
2-3 Gün
Be the first to review
$1,608 VAT included · Ex Tax: $1,340
  • Free shipping
  • Ships within 2-3 days
  • Genuine product with warranty
  • Remote installation and technical support

Autel Maxisys 906 MAX Professional Diagnostic Device

A new generation professional diagnostic device that supports DoIP and CAN FD protocols, offering full system scanning and 40+ service functions!

Why Autel Maxisys MS906 MAX?

Equipped with Autel's leading technology, the new 2024 model MS906 MAX of the Maxisys series offers full system scanning and advanced service functions for American, Asian, and European vehicles from 1996 onwards. It provides a future-ready solution with support for next-generation vehicle protocols DoIP and CAN FD.

With its 10.1-inch Full HD resolution wide touchscreen (1920x1200) and Bluetooth 5.0 enabled MaxiVCI V200 interface module, it makes wireless diagnostic operations fast and comfortable. It quickly scans all systems with AUTO SCAN 2.0 technology and supports advanced functions such as ADAS identification, coding, and adaptation.

Key Features

8 Core Processor
128GB Storage
Bluetooth 5.0
Dual Band Wi-Fi

Advanced Service Functions

Autel MS 906 MAX allows you to quickly perform more than 40 common maintenance tasks:

Oil Reset

DPF Regeneration

ADAS Calibration

Battery Matching

Camera Calibration

EPB Reset

ABS Bleeding

Gear Adaptation

TPMS Programming

Key Coding

SAS Calibration

Headlight Adaptation

AdBlue Reset

Start-Stop Reset

Throttle Adjustment

Rain Sensor

A/C Service

Seat Calibration

Injector Coding

Fuel System

EGR Adaptation

Sunroof Reset

Transmission Adaptation

Steering Angle Sensor

GPF Regeneration

Electronic Brake Adjustment

SCR Reset

Differential Learning

NOx Sensor Reset

Suspension Calibration

Engine Ignition

Brake Pad Reset

AFS Reset

Network Configuration

360° Camera Calibration

Particle Filter

Engine Running Time

Clutch Adaptation

Coolant Change

Tailgate Learning

Tablet Technical Specifications

Android 10.0

Octa-core Processor

4GB RAM

128GB Storage

10.1" LCD Screen

1920x1200 Resolution

13MP Rear Camera

11600mAh Battery

Wi-Fi 802.11 a/b/g/n/ac

Bluetooth 5.0

GPS Support

USB 2.0 Ports

2 Years Free Updates and Technical Support!
Free software updates and technical support service for the first 2 years. Wireless connection capability with Bluetooth VCI.

Package Contents

MS906 MAX Tablet

MaxiVCI V200

AC/DC Power Adapter

USB Type-C Cable

USB Ethernet Converter

User Manual

Carrying Case

Spare Fuses

Supported Vehicle Brands


For all American, European and Asian vehicles manufactured in 1996 and later:

  • ✓ Acura
  • ✓ Alfa Romeo
  • ✓ Audi
  • ✓ BMW
  • ✓ Chevrolet
  • ✓ Chrysler
  • ✓ Citroën
  • ✓ Dacia
  • ✓ Fiat
  • ✓ Ford
  • ✓ Honda
  • ✓ Hyundai
  • ✓ Jaguar
  • ✓ Kia
  • ✓ Land Rover
  • ✓ Lexus
  • ✓ Mazda
  • ✓ Mercedes-Benz
  • ✓ Mini
  • ✓ Mitsubishi
  • ✓ Nissan
  • ✓ Opel
  • ✓ Peugeot
  • ✓ Renault
  • ✓ Seat
  • ✓ Skoda
  • ✓ Subaru
  • ✓ Suzuki
  • ✓ Toyota
  • ✓ Volkswagen
  • ✓ Volvo
  • ✓ All Other Brands
Supported Protocols
DoIP
ISO13400
CAN FD
ISO-11898
CAN Protocol
ISO-15765
SAE Protocol
SAE-J1939
UDS Protocol
ISO-14229
CAN Standard
ISO-11898-2
CAN FT
ISO-11898-3
K-Line
ISO-9141
KWP
ISO-14230
SCI Protocol
SAE-J2610

Discover Professional Diagnostic Power!

Take your workshop to the future with Autel MS 906 MAX. Fault detection is now much easier with advanced diagnostic features, extensive vehicle support, and user-friendly interface.

Buy Now
Tags: Autel Maxisys MS906 MAX diagnostic tool diagnostic tablet auto repair ADAS calibration MaxiVCI V200 vehicle diagnostics professional repair equipment OBD2 scanner vehicle scanner 906 Max Autel Maxisys

All Autel Diagnostic Device →

Reviews

Write a review

Have you used the Autel Maxisys 906 MAX Diagnostic Tool?

A short review helps the next workshop looking at the same tool decide. Good or bad, both are useful.

Your rating *

When you submit this form, the details you share are processed only to handle your request. Details: Privacy Notice

Frequently asked questions about the Autel Maxisys 906 MAX Diagnostic Tool

What is the Autel Maxisys 906 MAX Diagnostic Tool and what is it used for?

Equipped with Autel's leading technology, the new 2024 model MS906 MAX of the Maxisys series offers full system scanning and advanced service functions for American, Asian, and European vehicles from 1996 onwards. It provides a future-ready solution with support for next-generation vehicle protocols DoIP and CAN FD.

What functions can the Autel Maxisys 906 MAX Diagnostic Tool perform?

The Autel Maxisys 906 MAX Diagnostic Tool performs 40 service functions, including: Oil Reset, DPF Regeneration, ADAS Calibration, Battery Matching, Camera Calibration, EPB Reset, ABS Bleeding, Gear Adaptation, TPMS Programming, Key Coding, SAS Calibration, Headlight Adaptation, AdBlue Reset, Start-Stop Reset and 26 more.

The full list is in the service functions section of the product description.

What is included in the Autel Maxisys 906 MAX Diagnostic Tool package?

MS906 MAX Tablet, MaxiVCI V200, AC/DC Power Adapter, USB Type-C Cable, USB Ethernet Converter, User Manual, Carrying Case, Spare Fuses

Which vehicle brands does the Autel Maxisys 906 MAX Diagnostic Tool support?

✓ Acura, ✓ Alfa Romeo, ✓ Audi, ✓ BMW, ✓ Chevrolet, ✓ Chrysler, ✓ Citroën, ✓ Dacia, ✓ Fiat, ✓ Ford, ✓ Honda, ✓ Hyundai, ✓ Jaguar, ✓ Kia, ✓ Land Rover, ✓ Lexus, ✓ Mazda, ✓ Mercedes-Benz, ✓ Mini, ✓ Mitsubishi, ✓ Nissan, ✓ Opel, ✓ Peugeot, ✓ Renault, ✓ Seat, ✓ Skoda, ✓ Subaru, ✓ Suzuki, ✓ Toyota, ✓ Volkswagen, ✓ Volvo, ✓ All Other Brands

If you are unsure whether your own vehicle is covered, ask us before ordering.

How much does the Autel Maxisys 906 MAX Diagnostic Tool cost?

The Autel Maxisys 906 MAX Diagnostic Tool is $1,608 including VAT, $1,340 excluding VAT. It follows the Autel list price and the exchange rate.

Ask for a quote before ordering to confirm the current price and payment options.

Does the Autel Maxisys 906 MAX Diagnostic Tool come with an invoice and warranty?

Yes. The Autel Maxisys 906 MAX Diagnostic Tool ships as a genuine product, with an invoice and a warranty.

Remote technical support is provided for installation and first use. Ask us about software updates and licence periods before ordering.

How do shipping and delivery work for the Autel Maxisys 906 MAX Diagnostic Tool?

Shipping is free on orders over 3,000 TL. Stock status: 2-3 Gün.

Ask us about delivery times and the courier before you order.
