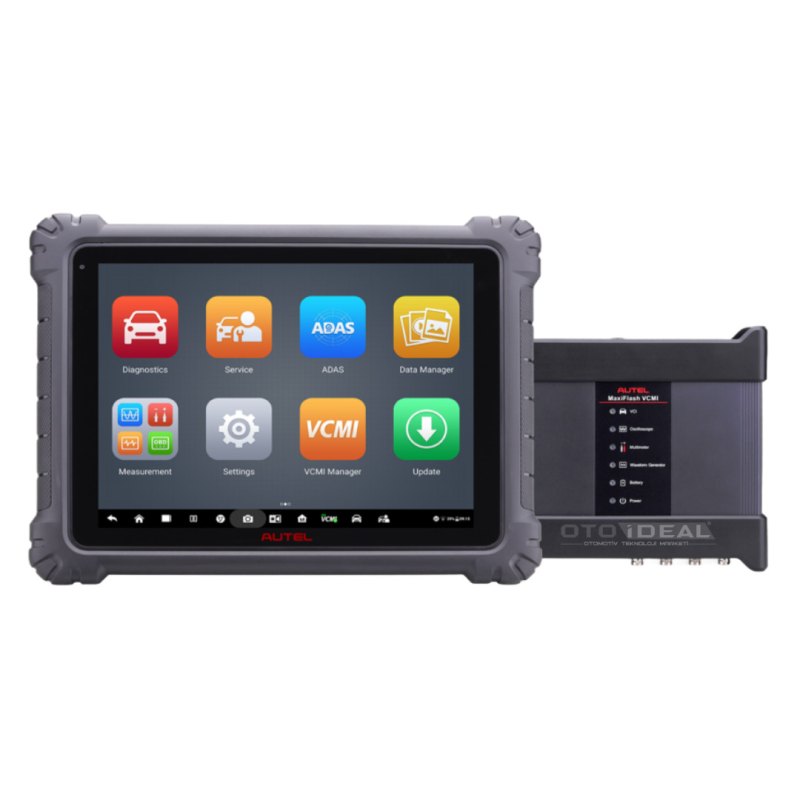

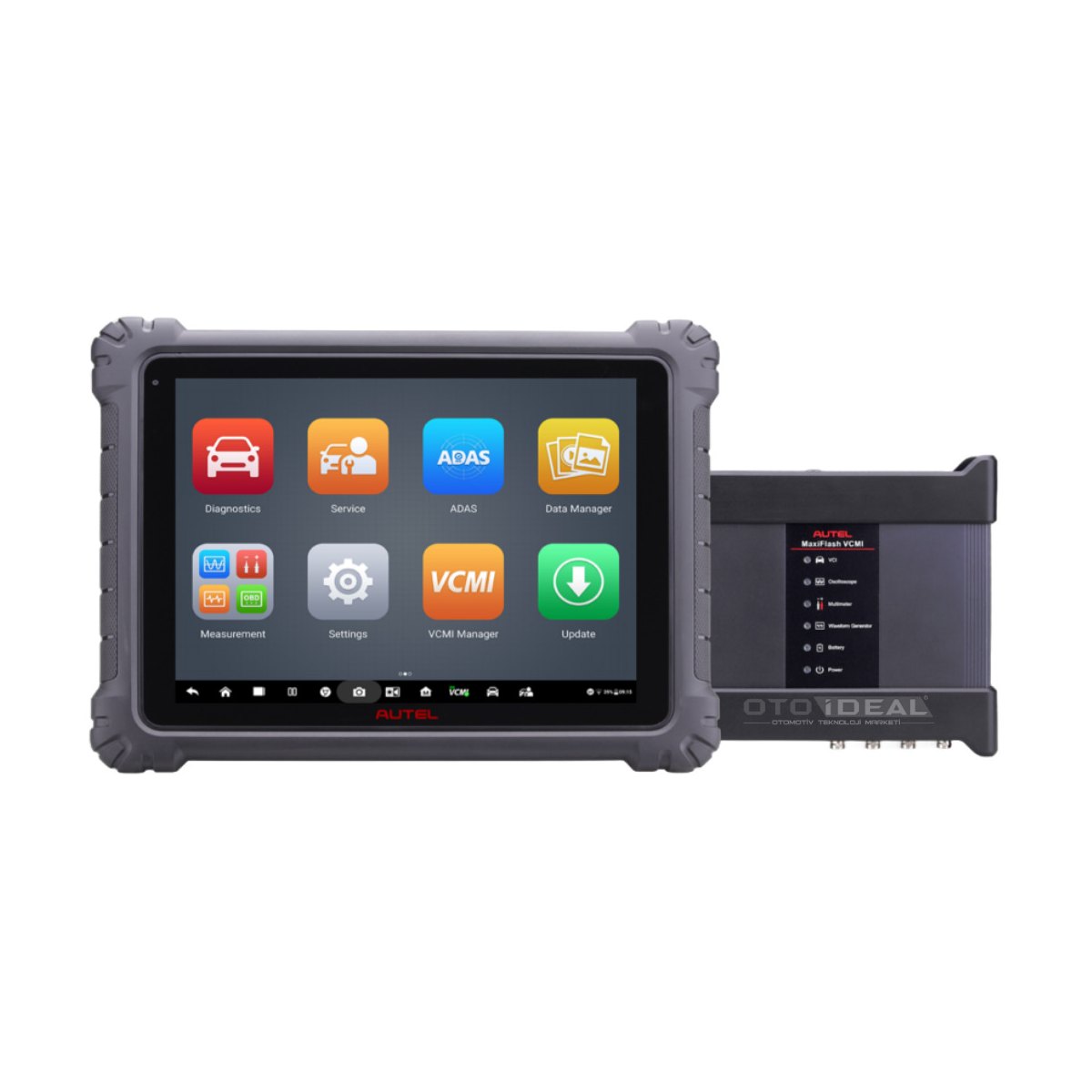

Autel Maxisys Ultra Diagnostic Tool

Autel Autel
Model
maxisys-ultra
Availability
2-3 Gün
Be the first to review
$4,452 VAT included · Ex Tax: $3,710
  • Free shipping
  • Ships within 2-3 days
  • Genuine product with warranty
  • Remote installation and technical support

Autel Maxisys Ultra Professional Diagnostic Device

The flagship of the Maxisys series with 12.9-inch Retina display, advanced VCMI technology, and ADAS calibration feature!

Why Autel Maxisys Ultra?

Equipped with Autel's highest level technology, the flagship Ultra of the Maxisys series offers unique diagnostic and programming solutions for more than 80 American, Asian, and European vehicles. With advanced VCMI module and integrated 4-channel oscilloscope feature, electrical fault detection is now much more precise and detailed.

12.9-inch Retina IPS display (2732x2048) and high-performance Samsung Exynos8895V processor enable diagnostic operations with maximum speed and comfort. Reach a new level in vehicle repair with advanced VCMI technology, ADAS calibration support, and online ECU programming capability.

Key Features

Samsung Exynos8895V
256GB Storage
VCMI Technology
ADAS Calibration

Advanced Service Functions and VCMI Technology

Autel Ultra allows you to perform over 40 common maintenance tasks with high precision and takes fault diagnosis to a new level with advanced VCMI technology:

Oil Reset

DPF Regeneration

ADAS Calibration

Battery Matching

Camera Calibration

EPB Reset

ABS Bleeding

Gear Adaptation

TPMS Programming

Key Coding

SAS Calibration

Headlight Adaptation

AdBlue Reset

Start-Stop Reset

Throttle Adjustment

Rain Sensor

A/C Service

Seat Calibration

Injector Coding

Fuel System

EGR Adaptation

Sunroof Reset

Transmission Adaptation

Steering Angle Sensor

GPF Regeneration

Electronic Brake Adjustment

SCR Reset

Differential Learning

NOx Sensor Reset

Suspension Calibration

Engine Ignition

Brake Pad Reset

AFS Reset

Network Configuration

360° Camera Calibration

Particle Filter

Engine Running Time

Clutch Adaptation

Coolant Change

Tailgate Teaching


Ultra Tablet and VCMI Technical Specifications

Android 7.0/10.0

Samsung Exynos8895V

Advanced VCMI Technology

Precision Multimeter

256GB Storage

4GB RAM

12.9" Retina IPS Display

2732x2048 Resolution

16MP Front/Rear Camera

18000mAh Battery

Wi-Fi 802.11 a/b/g/n/ac

Bluetooth 5.0

150MS/s Sampling

Advanced Signal Generator

CAN/CAN FD Test

VCMI Technology

2 Years Free Updates and Professional Technical Support!
First 2 years free software updates and technical support service. Cloud-based data management, advanced VCMI technology, and ADAS calibration support.

Ultra Package Contents

Main Unit

MaxiFlash VCMI

Docking Station

Main Cable V2.0

USB 2.0 Cable V2

AC/DC Adapter (12V)

Cigarette Lighter Cable

Light Fuse (6x30mm 2 PCS)

Clipper Cable

Scope Test Cable (4 PCS)

Secondary Ignition Probe (2 PCS)

Attenuator 20:1 (2 PCS)

Breakout Lead (4x6 PCS)

Multimeter Probe (1x2 PCS)

Flexible Back-pinning Probe (2x2 PCS)

Back-pinning Probe - Colored (1x5 PCS)

Back-pinning Probe Screw (2 PCS)

Small Crocodile Clip (2x2 PCS)

Large Dolphin Clip (1x2 PCS)

Quick Start Guide

Package List

Cleaning Cloth

Tool Case

Carrying Case

Supported Protocols
DoIP
ISO13400
CAN FD
ISO-11898
PLC J2497
SAE-J2497
SAE Protocol
SAE-J1939
UDS Protocol
ISO-14229
Single Wire Can
SAE-J2411
GM ALDL
SAE-J2740
Honda Diag-H
SAE-J2809
VAG KW81
SAE-J2819
BMW DS2
BMW-DS2

Autel Maxisys 909, 919 and Ultra Comparison Table

Features MS909 MS919 MSULTRA
Hardware Specifications
Screen Size 9.7 inches 9.7 inches 12.9 inches
Screen Resolution 1536 x 2048 1536 x 2048 2732 x 2048
Processor 2.3GHz + 1.7GHz Octa-Core 2.3GHz + 1.7GHz Octa-Core 2.3GHz + 1.7GHz Octa-Core
Storage / RAM 128GB SSD / 4GB RAM 128GB SSD / 4GB RAM 256GB SSD / 4GB RAM
Battery 15,000 mAh 15,000 mAh 18,000 mAh
Camera 16MP Rear / 5MP Front 16MP Rear / 5MP Front 16MP Rear / 5MP Front
Core Features
ECU Programming ✓ ✓ ✓
Online Coding ✓ ✓ ✓
4 Channel Oscilloscope - ✓ ✓
Multimeter - ✓ ✓
Signal Generator - ✓ ✓
CAN/CAN FD Test - ✓ ✓
Interface MaxiFlash VCI MaxiFlash VCMI MaxiFlash VCMI
Service Functions 26+ Service Features 26+ Service Features 26+ Service Features
Android Version Android 7.0 Android 7.0 Android 7.0
Note: Ultra has the same programming capability as MS909 and MS919. In addition to the MS909 model, it offers the following functions:
  • 4 Channel Professional Oscilloscope
  • Multimeter and Signal Generator
  • MaxiFlash VCMI Interface
  • CAN/CAN FD Test Capabilities
The oscilloscope and multimeter features are also available in the 919 model, but Ultra offers a larger screen (12.9"), more storage (256GB), and a more powerful battery (18,000 mAh) in addition to all its features.

Meet the Flagship of the Maxisys Series!

Double the power of your workshop with Autel MaxiSys Ultra. Start a new era in vehicle diagnostics and repair with 12.9-inch Retina display, advanced VCMI technology, top-level ADAS calibration support, and online ECU programming capabilities.

Buy Now
Tags: Autel Maxisys Ultra fault diagnosis device diagnostic tablet oscilloscope ECU programming online coding ADAS calibration vehicle diagnostics autel maxisys ultra msultra

All Autel Diagnostic Device →

Reviews

Write a review

Have you used the Autel Maxisys Ultra Diagnostic Tool?

A short review helps the next workshop looking at the same tool decide. Good or bad, both are useful.

Your rating *

When you submit this form, the details you share are processed only to handle your request. Details: Privacy Notice

Frequently asked questions about the Autel Maxisys Ultra Diagnostic Tool

What is the Autel Maxisys Ultra Diagnostic Tool and what is it used for?

Equipped with Autel's highest level technology, the flagship Ultra of the Maxisys series offers unique diagnostic and programming solutions for more than 80 American, Asian, and European vehicles. With advanced VCMI module and integrated 4-channel oscilloscope feature, electrical fault detection is now much more precise and detailed.

What functions can the Autel Maxisys Ultra Diagnostic Tool perform?

The Autel Maxisys Ultra Diagnostic Tool performs 40 service functions, including: Oil Reset, DPF Regeneration, ADAS Calibration, Battery Matching, Camera Calibration, EPB Reset, ABS Bleeding, Gear Adaptation, TPMS Programming, Key Coding, SAS Calibration, Headlight Adaptation, AdBlue Reset, Start-Stop Reset and 26 more.

The full list is in the service functions section of the product description.

What is included in the Autel Maxisys Ultra Diagnostic Tool package?

Main Unit, MaxiFlash VCMI, Docking Station, Main Cable V2.0, USB 2.0 Cable V2, AC/DC Adapter (12V), Cigarette Lighter Cable, Light Fuse (6x30mm 2 PCS), Clipper Cable, Scope Test Cable (4 PCS), Secondary Ignition Probe (2 PCS), Attenuator 20:1 (2 PCS), Breakout Lead (4x6 PCS), Multimeter Probe (1x2 PCS), Flexible Back-pinning Probe (2x2 PCS), Back-pinning Probe - Colored (1x5 PCS), Back-pinning Probe Screw (2 PCS), Small Crocodile Clip (2x2 PCS), Large Dolphin Clip (1x2 PCS), Quick Start Guide, Package List, Cleaning Cloth, Tool Case, Carrying Case

How much does the Autel Maxisys Ultra Diagnostic Tool cost?

The Autel Maxisys Ultra Diagnostic Tool is $4,452 including VAT, $3,710 excluding VAT. It follows the Autel list price and the exchange rate.

Ask for a quote before ordering to confirm the current price and payment options.

Does the Autel Maxisys Ultra Diagnostic Tool come with an invoice and warranty?

Yes. The Autel Maxisys Ultra Diagnostic Tool ships as a genuine product, with an invoice and a warranty.

Remote technical support is provided for installation and first use. Ask us about software updates and licence periods before ordering.

How do shipping and delivery work for the Autel Maxisys Ultra Diagnostic Tool?

Shipping is free on orders over 3,000 TL. Stock status: 2-3 Gün.

Ask us about delivery times and the courier before you order.
