Autel Maxisys Ultra S2 Diagnostic Tool

Autel Autel
Model
maxisys-ultra-s2
Availability
2-3 Gün
Be the first to review
$5,448 VAT included · Ex Tax: $4,540
  • Free shipping
  • Ships within 2-3 days
  • Genuine product with warranty
  • Remote installation and technical support

Autel Maxisys Ultra S2 Professional Diagnostic Scanner NEW 2026 MODEL

13.7-inch Anti-Glare Retina display, advanced VCMI2 technology, AI-powered image analysis, and comprehensive EV tests - the flagship of Maxisys S2 series!

Ultra S2: Next-Generation Superior Performance

Equipped with Autel's highest-level 2026 model technology, the flagship of Maxisys series Ultra S2 offers advanced fault detection, online ECU programming, and comprehensive electric vehicle testing for 80+ American, Asian, and European vehicles. With the advanced VCMI2 module and integrated 4-channel oscilloscope, electrical fault detection is performed with maximum precision and detail.

13.7-inch Anti-Glare Retina IPS display (2732x2048) and powerful 2.7GHz 8-core processor enable diagnostic operations with maximum speed and comfort. 512GB storage, Topology 3.0, Live Data Fusion, MAX hands-free assistant, and AI-powered image analysis meet all the needs of professional workshops.

Ultra vs Ultra S2: Next Generation Advantages

  • ✓ Larger Screen: 13.7-inch Anti-Glare (old model 12.9-inch)
  • ✓ Faster Processor: 2.7GHz 8-Core (old model 2.3GHz)
  • ✓ 2x More Storage: 512GB (old model 256GB)
  • ✓ Enhanced Topology 3.0: Module locations and live network ping test
  • ✓ Live Data Fusion: Record and compare value changes across multiple modules/systems
  • ✓ Enhanced Scope Software: Launch directly from live data analysis
  • ✓ Comprehensive EV Tests: AC/DC Charging, HV Component, Resolver Sensor tests
  • ✓ Parasitic Current Draw: Parasitic Current Draw and Swing tests
  • ✓ MAX Hands-Free Assistant: Voice-controlled tablet navigation
  • ✓ AI-Powered Image Analysis: Auto-detection of dents and scratches
  • ✓ VCMI2: Smaller, lighter new interface with Remote Expert function
  • ✓ Dual Wi-Fi 6: High-speed, low-latency data transmission
  • ✓ Enhanced Docking Station: Tablet "Fast Charge" feature
  • ✓ 48+ Service Functions: Extended service menu

Ultra S2 Exclusive New Features

Topology 3.0 Network Analysis

OE-style system analysis, multi-speed communication protocol networks. Active module and network analysis: Locate ECUs and ping directly to test signal quality.

Enhanced Oscilloscope

Launch Scope directly from live data. Quickly detect electrical faults with advanced waveform visualization and analysis features.

Comprehensive EV Tests

AC/DC Charging, HV Component, Interlock Loop Signal, Power-On Ctrl, Resolver Sensor, and Thermal Management System tests. Complete solution for EV maintenance.

Live Data Fusion & Visualization

Visualize multiple parameters to identify the relationship between PIDs. Record and compare value changes across multiple systems.

Multi-Point Digital Vehicle Inspection

AI-powered dent and scratch detection. Detailed tire analysis with Autel TBE200 and ITS600. Comprehensive digital vehicle inspection.

Parasitic Current Draw Tests

Quickly detect battery issues with parasitic current draw and swing tests. Advanced electrical diagnostic features.

MAX Hands-Free Assistant

Hands-free navigation in Ultra S2 interface. Easily execute voice commands, system scans, and active tests with virtual assistant MAX.

MaxiFlash VCMI2

Advanced VCI/J2534, 4-channel oscilloscope, multimeter, waveform generator, CAN-Bus tester, and Remote Expert device in a smaller and lighter chassis.

Key Hardware Features

Android 13
2.7GHz 8-Core
12GB RAM
512GB Storage
13.7" Anti-Glare Retina
2732x2048 Resolution
VCMI2 Technology
Dual Wi-Fi 6

Advanced Service Functions (48+ Functions)

Autel Ultra S2 enables you to perform 48+ common maintenance and service tasks with superior precision:

Oil Reset

DPF Regeneration

ADAS Calibration

Battery Registration

Camera Calibration

EPB Reset

ABS Bleeding

Gear Learning

TPMS Programming

Key Coding

SAS Calibration

Headlight Adaptation

AdBlue Reset

Start-Stop Reset

Throttle Adaptation

Rain Sensor

EV A/C Service

Seat Calibration

Injector Coding

Fuel System

EGR Adaptation

Sunroof Reset

Transmission Adaptation

Resolver Calibration

GPF Regeneration

Electronic Brake Adjustment

SCR Reset

Differential Learning

NOx Sensor Reset

Suspension Calibration

Relative Compression

Brake Pad Reset

AFS Reset

Network Configuration

360° Camera Calibration

Particulate Filter

Engine Running Time

Clutch Adaptation

EV Coolant Change

Tailgate Learning

VIN/Odometer Check

EV AC/DC Charge Test

Parasitic Current Test

EV Thermal Management

Swing Test

HV Component Test

Power-On Control

Resolver Sensor

Interlock Loop Signal

Ultra S2 Tablet and VCMI2 Technical Specifications

Android 13

2.7GHz 8-Core Processor

12GB RAM

512GB Storage

13.7" Retina IPS Display

2732x2048 Resolution

Anti-Glare Screen

16MP Front/Rear Camera

18000mAh Battery

Fast Charge Dock

Dual Wi-Fi 6

Bluetooth 5.0

VCMI2 Technology

4-Channel Oscilloscope

Precision Multimeter

Waveform Generator

CAN-Bus Tester

Remote Expert

J2534 Pass-Thru

GPS Support

2 Years Free Software Updates and Professional Technical Support!
First 2 years includes free software updates and technical support. 2 years free access to Motor TRUSPEED integrated repair data. Cloud-based data management and advanced VCMI2 technology.

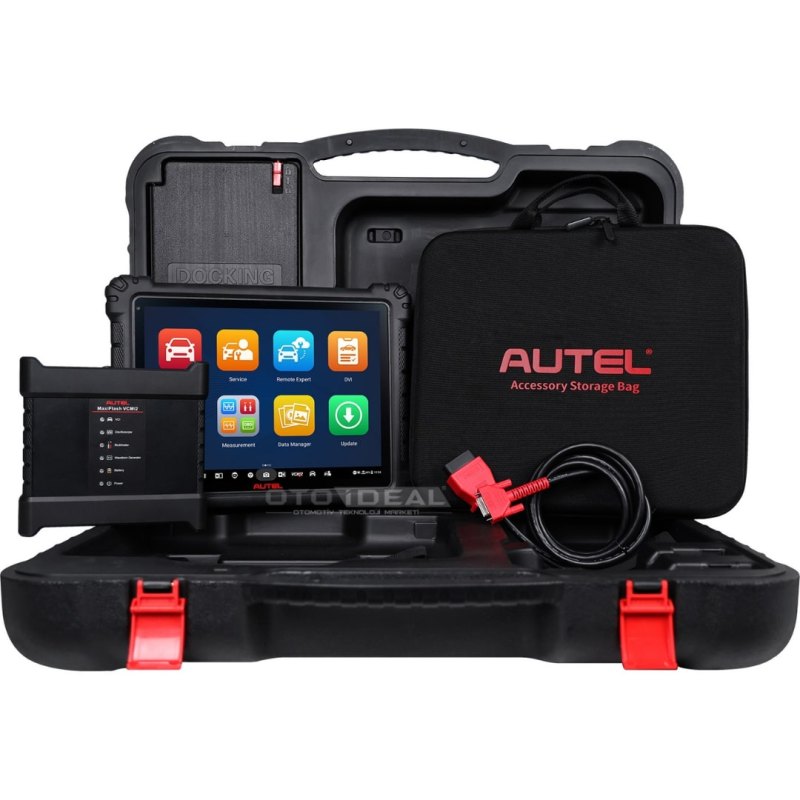

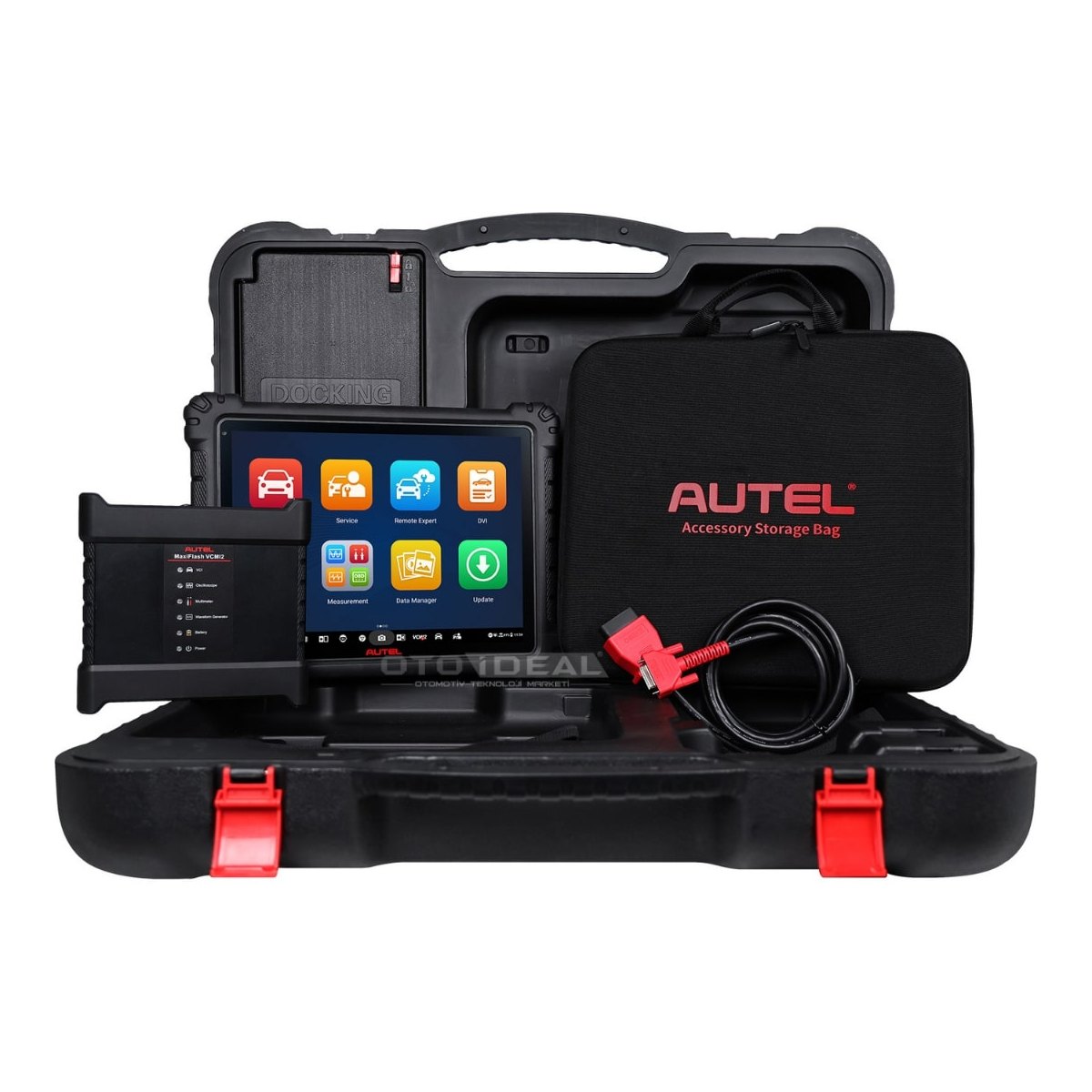

Ultra S2 Package Contents

Ultra S2 Tablet

MaxiFlash VCMI2

Docking Station (Fast Charge)

Main Cable

USB 2.0 Cable

AC/DC Adapter (12V)

Auxiliary Power Outlet Adapter

Spare Fuse (2pcs)

Clamp Cable

Scope Test Lead (4 PCS)

Multimeter Test Lead (2 PCS)

Secondary Ignition Pickup (2 PCS)

Breakout Lead (4x6 PCS)

Multimeter Probe (1x2 PCS)

Flexible Back-pinning Probe (2x2 PCS)

Back-pinning Probe - Colored (1x5 PCS)

Back-pinning Probe Screw (2 PCS)

Small Crocodile Clip (2x2 PCS)

Large Dolphin Clip (1x2 PCS)

USB to Ethernet Adapter

Quick Start Guide

Package List

Soft Cloth

Tool Box

Accessory Storage Bag

Carrying Case

Supported Protocols
DoIP
ISO13400
CAN FD
ISO-11898
J2534 Pass-Thru
SAE-J2534
D-PDU
ISO-22900
UDS Protocol
ISO-14229
SAE Protocol
SAE-J1939
PLC J2497
SAE-J2497
Single Wire CAN
SAE-J2411
GM ALDL
SAE-J2740
Honda Diag-H
SAE-J2809
VAG KW81
SAE-J2819
BMW DS2
BMW-DS2

Autel Maxisys S2 Series Comparison Table

Features MS909S2 MS919S2 MSULTRA S2
Hardware Specifications
Screen Size 11 inch 11 inch 13.7 inch
Screen Resolution 2176 x 1600 2176 x 1600 2732 x 2048
Screen Type Anti-Glare Anti-Glare Anti-Glare Retina
Processor 2.7GHz 8-Core 2.7GHz 8-Core 2.7GHz 8-Core
Storage / RAM 256GB / 12GB RAM 256GB / 12GB RAM 512GB / 12GB RAM
Battery 15,000 mAh 15,000 mAh 18,000 mAh
Camera 16MP Rear / 16MP Front 16MP Rear / 16MP Front 16MP Rear / 16MP Front
Android Version Android 13 Android 13 Android 13
Wi-Fi Dual Wi-Fi 6e Dual Wi-Fi 6e Dual Wi-Fi 6
Docking Station - - ✓ Fast Charge
Key Features
ECU Programming ✓ ✓ ✓
Online Coding ✓ ✓ ✓
J2534 Pass-Thru ✓ ✓ ✓
D-PDU ✓ ✓ ✓
Topology 3.0 ✓ ✓ ✓
Live Data Fusion ✓ ✓ ✓
MAX Hands-Free Assistant ✓ ✓ ✓
AI Image Analysis ✓ ✓ ✓
Digital Vehicle Inspection ✓ ✓ ✓
4 Channel Oscilloscope - ✓ ✓
Multimeter - ✓ ✓
Signal Generator - ✓ ✓
CAN/CAN FD Test - ✓ ✓
Remote Expert - - ✓
EV Tests - - ✓ Comprehensive
Parasitic Current Test - - ✓
Enhanced Scope Software - - ✓
Interface MaxiFlash VCI2 MaxiFlash VCMI MaxiFlash VCMI2
Service Functions 45+ Service Features 45+ Service Features 48+ Service Features
Motor TRUSPEED 1 Year Free 1 Year Free 2 Years Free
Maxisys S2 Series Notes:
  • All S2 models feature Android 13, Topology 3.0, Live Data Fusion, MAX assistant, and AI image analysis
  • MS909S2: Budget-friendly option with essential diagnostic and programming features
  • MS919S2: Adds oscilloscope, multimeter, and signal generator to MS909S2
  • MSULTRA S2: Flagship of the series. In addition to all S2 features:
    • Largest screen (13.7" Anti-Glare Retina)
    • Most storage (512GB)
    • Most powerful battery (18,000 mAh)
    • VCMI2 interface (including Remote Expert)
    • Comprehensive EV tests
    • Enhanced Scope software
    • Parasitic current and Swing tests
    • Docking Station with Fast Charge
    • 2 years free Motor TRUSPEED access

Meet the Flagship of Maxisys S2 Series!

Maximize your workshop's power with Autel MaxiSys Ultra S2. 13.7-inch Anti-Glare Retina display, VCMI2 technology, comprehensive EV tests, AI-powered analysis, and 512GB storage - start a new era in professional diagnostics and repair.
