Genuine and WarrantedInvoiced sale, official warranty Remote SetupTechnical support included
Autel Maxisys 909S2 Diagnostic Tool Autel Maxisys 909S2 Diagnostic Tool 2 Autel Maxisys 909S2 Diagnostic Tool 3

1 / 3

Autel Maxisys 909S2 Diagnostic Tool

Autel Autel
Model
maxisys-909s2
Availability
2-3 Gün
(1) 1 reviews
$3,468 VAT included · Ex Tax: $2,890
  • Free shipping
  • Ships within 2-3 days
  • Genuine product with warranty
  • Remote installation and technical support

Autel Maxisys MS909S2 Next-Generation Professional Diagnostic Scanner NEW 2026 MODEL

Next Level Diagnostics & Analysis System! OE-level diagnostics with AI-powered image analysis, Topology 3.0, MAX hands-free assistant, and enhanced Live Data Fusion!

MS909S2: The New Benchmark in Diagnostics

Equipped with Autel's most advanced 2026 technology, the Maxisys MS909S2 delivers near OEM-level diagnostics and service capability with data-driven diagnostics and enhanced PID analysis. Professional-level diagnostics for 80+ American, Asian, and European vehicle brands.

11-inch Anti-Glare Full HD+ touchscreen (2176x1600) and superior 2.7GHz 8-core processor make diagnostic operations faster and more comfortable. Android 13 OS and 256GB storage capacity meet all the needs of professional workshops.

MS909 vs MS909S2: Next Generation Advantages

  • ✓ Larger Screen: 11-inch Anti-Glare display (old model 9.7-inch)
  • ✓ Higher Resolution: 2176x1600 pixels
  • ✓ Faster Processor: 2.7GHz 8-Core (old model 2.2GHz)
  • ✓ More RAM: 12GB (old model 4GB)
  • ✓ 2x More Storage: 256GB (old model 128GB)
  • ✓ Enhanced Topology 3.0: Module locations and live network ping test
  • ✓ Live Data Fusion: Record and compare value changes across multiple modules/systems
  • ✓ MAX Hands-Free Assistant: Voice-controlled tablet navigation
  • ✓ AI-Powered Image Analysis: Auto-detection of dents and scratches
  • ✓ Digital Vehicle Inspection: Multi-point digital vehicle inspection
  • ✓ Dual Wi-Fi 6: High-speed, low-latency data transmission

MS909S2 Exclusive New Features

Enhanced PID Analysis

Visualize multiple parameters to identify the relationship between PIDs and pinpoint system anomalies. Ideal for engine fault, performance, and emissions troubleshooting.

Network Topology 3.0

Dynamic network analysis with color-coded module status, module locations, and live network ping test. Ping and monitor individual module communications across multiple networks.

MAX Hands-Free Assistant

Hands-free tablet navigation and verbal command functionality for various tasks. Effortlessly initiate system scans, access maintenance tasks, or execute active tests.

Live Data Fusion

Record and compare value changes across multiple modules/systems. Save multiple PID groups to recall later. Set min and max triggers for alerts on data PIDs.

AI-Powered Image Analysis

AI-powered image analysis for auto-detection of dents and scratches. Accelerates the digital vehicle inspection process.

Multi-Point Digital Vehicle Inspection

Professional-level vehicle inspection with advanced multi-point digital vehicle inspection. Detailed reporting and documentation.

Enhanced Split-Screen Diagnostics

Enhanced split-screen diagnostics, diagnostics+X (multiple applications). Active scope functionality directly from live data analysis.

Additional Service Menu Options

Resolver calibrations, coolant and A/C changes for EV, relative compression, VIN/odometer checks.

Key Hardware Features

Android 13
2.7GHz 8-Core
12GB RAM
256GB Storage
11" Anti-Glare Screen
2176x1600 Resolution
Dual Wi-Fi 6e
Bluetooth 5.0

Advanced Service Functions (45+ Functions)

The Autel MS909S2 enables you to perform 45+ common maintenance tasks at OE level:

Oil Reset

DPF Regeneration

ADAS Calibration

Battery Registration

Camera Calibration

EPB Reset

ABS Bleeding

Gear Learning

TPMS Programming

Key Coding

SAS Calibration

Headlight Adaptation

AdBlue Reset

Start-Stop Reset

Throttle Adaptation

Rain Sensor

EV A/C Service

Seat Calibration

Injector Coding

Fuel System

EGR Adaptation

Sunroof Reset

Transmission Adaptation

Resolver Calibration

GPF Regeneration

Electronic Brake Adjustment

SCR Reset

Differential Learning

NOx Sensor Reset

Suspension Calibration

Relative Compression

Brake Pad Reset

AFS Reset

Network Configuration

360° Camera Calibration

Particulate Filter

Engine Running Time

Clutch Adaptation

EV Coolant Change

Tailgate Learning

VIN/Odometer Check

Tablet Technical Specifications

Android 13

2.7GHz 8-Core Processor

12GB RAM

256GB Storage

11" TFT-LCD Display

2176x1600 Resolution

Anti-Glare Screen

16MP Front/Rear Camera

15000mAh Battery

DC Fast Charging

Dual Wi-Fi 6e

Bluetooth 5.0

GPS Support

USB Type-C

MaxiFlash VCI2

J2534 Pass-Thru

2 Year Free Software Updates and Technical Support!
First year includes free software updates and technical support. 2 year free access to Motor TRUSPEED integrated repair information.

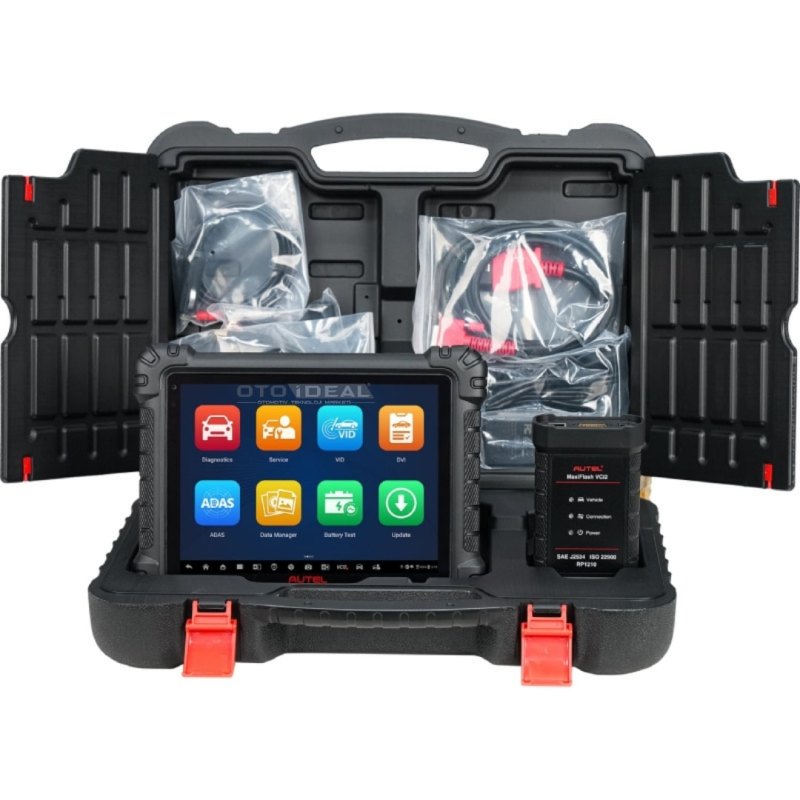

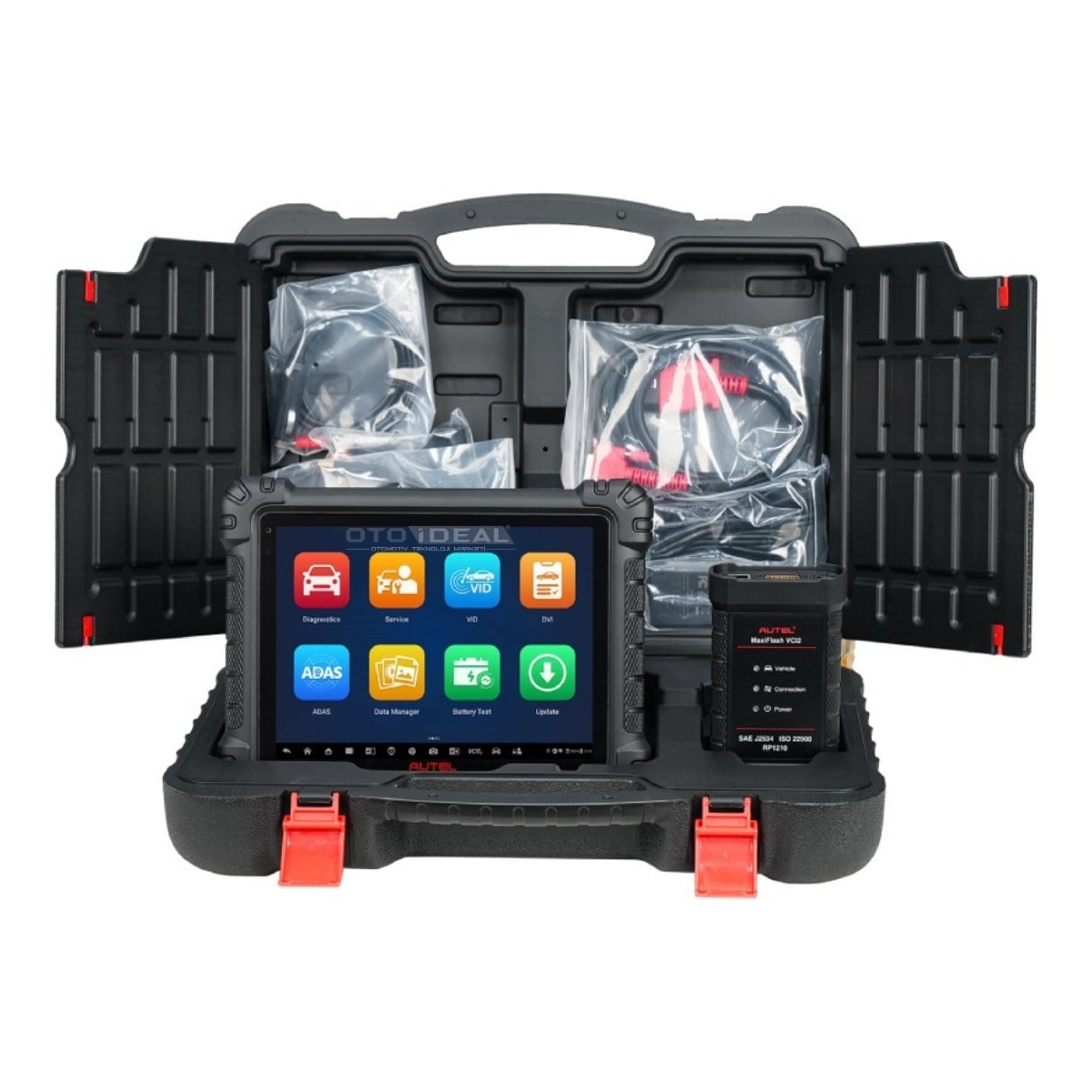

Package Contents

MS909S2 Tablet

MaxiFlash VCI2 (Interface)

OBD Cable

USB Type-C Cable

AC/DC Adapter (12V)

Cigarette Lighter Cable

Spare Fuse (2pcs)

Alligator Cable

Quick Start Guide

Package List

Cleaning Cloth

Carrying Case

Supported Vehicle Brands

For all American, European, and Asian vehicles manufactured after 1996 (80+ brands):

  • ✓ Acura
  • ✓ Alfa Romeo
  • ✓ Audi
  • ✓ BMW
  • ✓ Bentley
  • ✓ Bugatti
  • ✓ Chevrolet
  • ✓ Chrysler
  • ✓ Citroën
  • ✓ Dacia
  • ✓ Ferrari
  • ✓ Fiat
  • ✓ Ford
  • ✓ Honda
  • ✓ Hyundai
  • ✓ Infiniti
  • ✓ Jaguar
  • ✓ Kia
  • ✓ Lamborghini
  • ✓ Land Rover
  • ✓ Lexus
  • ✓ Maserati
  • ✓ Mazda
  • ✓ McLaren
  • ✓ Mercedes-Benz
  • ✓ Mini
  • ✓ Mitsubishi
  • ✓ Nissan
  • ✓ Opel
  • ✓ Peugeot
  • ✓ Porsche
  • ✓ Renault
  • ✓ Rolls-Royce
  • ✓ Seat
  • ✓ Skoda
  • ✓ Subaru
  • ✓ Suzuki
  • ✓ Tesla
  • ✓ Toyota
  • ✓ Volkswagen
  • ✓ Volvo
  • ✓ All Other Brands
Supported Protocols
DoIP
ISO13400
CAN FD
ISO-11898
J2534 Pass-Thru
SAE-J2534
D-PDU
ISO-22900
UDS Protocol
ISO-14229
SAE Protocol
SAE-J1939

Autel Maxisys S2 Series Comparison Tablet

Features MS909S2 MS919S2 MSULTRA S2
Hardware Specifications
Screen Size 11 inch 11 inch 12.9 inch
Screen Resolution 2176 x 1600 2176 x 1600 2732 x 2048
Screen Type Anti-Glare Anti-Glare Anti-Glare
Processor 2.7GHz 8-Core 2.7GHz 8-Core 2.7GHz 8-Core
Storage / RAM 256GB / 12GB RAM 256GB / 12GB RAM 256GB / 12GB RAM
Battery 15,000 mAh 15,000 mAh 18,000 mAh
Camera 16MP Rear / 16MP Front 16MP Rear / 16MP Front 16MP Rear / 16MP Front
Android Version Android 13 Android 13 Android 13
Wi-Fi Dual Wi-Fi 6e Dual Wi-Fi 6e Dual Wi-Fi 6e
Key Features
ECU Programming ✓ ✓ ✓
Online Coding ✓ ✓ ✓
J2534 Pass-Thru ✓ ✓ ✓
D-PDU ✓ ✓ ✓
Topology 3.0 ✓ ✓ ✓
Live Data Fusion ✓ ✓ ✓
MAX Hands-Free Assistant ✓ ✓ ✓
AI Image Analysis ✓ ✓ ✓
Digital Vehicle Inspection ✓ ✓ ✓
4 Channel Oscilloscope - ✓ ✓
Multimeter - ✓ ✓
Signal Generator - ✓ ✓
CAN/CAN FD Test - ✓ ✓
Interface MaxiFlash VCI2 MaxiFlash VCMI MaxiFlash VCMI
Service Functions 45+ Service Features 45+ Service Features 45+ Service Features
Motor TRUSPEED 1 Year Free 1 Year Free 1 Year Free
Maxisys S2 Series Notes:
  • All S2 models feature Android 13, Topology 3.0, Live Data Fusion, MAX assistant, and AI image analysis
  • MS909S2: Budget-friendly option with essential diagnostic and programming features
  • MS919S2: Adds oscilloscope, multimeter, and signal generator to MS909S2
  • MSULTRA S2: All features of MS919S2 with larger screen (12.9") and more powerful battery (18,000 mAh)

Discover the Power of 2026 Next-Gen Diagnostics!

Take your workshop to the future with Autel MS909S2. Professional and fast diagnostics with AI-powered analysis, Topology 3.0, MAX hands-free assistant, and enhanced Live Data Fusion features.

Buy Now
Tags: Autel Maxisys MS909S2 diagnostic scanner diagnostic tablet ECU programming online coding vehicle diagnostics OBD2 scanner topology 3.0 AI analysis 2026 model

All Autel Diagnostic Device →

Reviews1

5,0 1 review
Beytullah K

Profesyonel bir arıza tespit cihazı Autel programlama konusunda çok iş görüyor BMW ve mercedes konusunda özellikle birde 909s2 de yapay zeka ile geliştirmeleri güzel olmuş

Write a review

Have you used the Autel Maxisys 909S2 Diagnostic Tool?

A short review helps the next workshop looking at the same tool decide. Good or bad, both are useful.

Your rating *

When you submit this form, the details you share are processed only to handle your request. Details: Privacy Notice

Frequently asked questions about the Autel Maxisys 909S2 Diagnostic Tool

What is the Autel Maxisys 909S2 Diagnostic Tool and what is it used for?

Equipped with Autel's most advanced 2026 technology, the Maxisys MS909S2 delivers near OEM-level diagnostics and service capability with data-driven diagnostics and enhanced PID analysis. Professional-level diagnostics for 80+ American, Asian, and European vehicle brands.

What functions can the Autel Maxisys 909S2 Diagnostic Tool perform?

The Autel Maxisys 909S2 Diagnostic Tool performs 41 service functions, including: Oil Reset, DPF Regeneration, ADAS Calibration, Battery Registration, Camera Calibration, EPB Reset, ABS Bleeding, Gear Learning, TPMS Programming, Key Coding, SAS Calibration, Headlight Adaptation, AdBlue Reset, Start-Stop Reset and 27 more.

The full list is in the service functions section of the product description.

What is included in the Autel Maxisys 909S2 Diagnostic Tool package?

MS909S2 Tablet, MaxiFlash VCI2 (Interface), OBD Cable, USB Type-C Cable, AC/DC Adapter (12V), Cigarette Lighter Cable, Spare Fuse (2pcs), Alligator Cable, Quick Start Guide, Package List, Cleaning Cloth, Carrying Case

Which vehicle brands does the Autel Maxisys 909S2 Diagnostic Tool support?

✓ Acura, ✓ Alfa Romeo, ✓ Audi, ✓ BMW, ✓ Bentley, ✓ Bugatti, ✓ Chevrolet, ✓ Chrysler, ✓ Citroën, ✓ Dacia, ✓ Ferrari, ✓ Fiat, ✓ Ford, ✓ Honda, ✓ Hyundai, ✓ Infiniti, ✓ Jaguar, ✓ Kia, ✓ Lamborghini, ✓ Land Rover, ✓ Lexus, ✓ Maserati, ✓ Mazda, ✓ McLaren, ✓ Mercedes-Benz, ✓ Mini, ✓ Mitsubishi, ✓ Nissan, ✓ Opel, ✓ Peugeot, ✓ Porsche, ✓ Renault, ✓ Rolls-Royce, ✓ Seat, ✓ Skoda, ✓ Subaru, ✓ Suzuki, ✓ Tesla, ✓ Toyota, ✓ Volkswagen

If you are unsure whether your own vehicle is covered, ask us before ordering.

How much does the Autel Maxisys 909S2 Diagnostic Tool cost?

The Autel Maxisys 909S2 Diagnostic Tool is $3,468 including VAT, $2,890 excluding VAT. It follows the Autel list price and the exchange rate.

Ask for a quote before ordering to confirm the current price and payment options.

Does the Autel Maxisys 909S2 Diagnostic Tool come with an invoice and warranty?

Yes. The Autel Maxisys 909S2 Diagnostic Tool ships as a genuine product, with an invoice and a warranty.

Remote technical support is provided for installation and first use. Ask us about software updates and licence periods before ordering.

How do shipping and delivery work for the Autel Maxisys 909S2 Diagnostic Tool?

Shipping is free on orders over 3,000 TL. Stock status: 2-3 Gün.

Ask us about delivery times and the courier before you order.
