Xhorse VVDI Key Tool Plus Pad Key Programmer

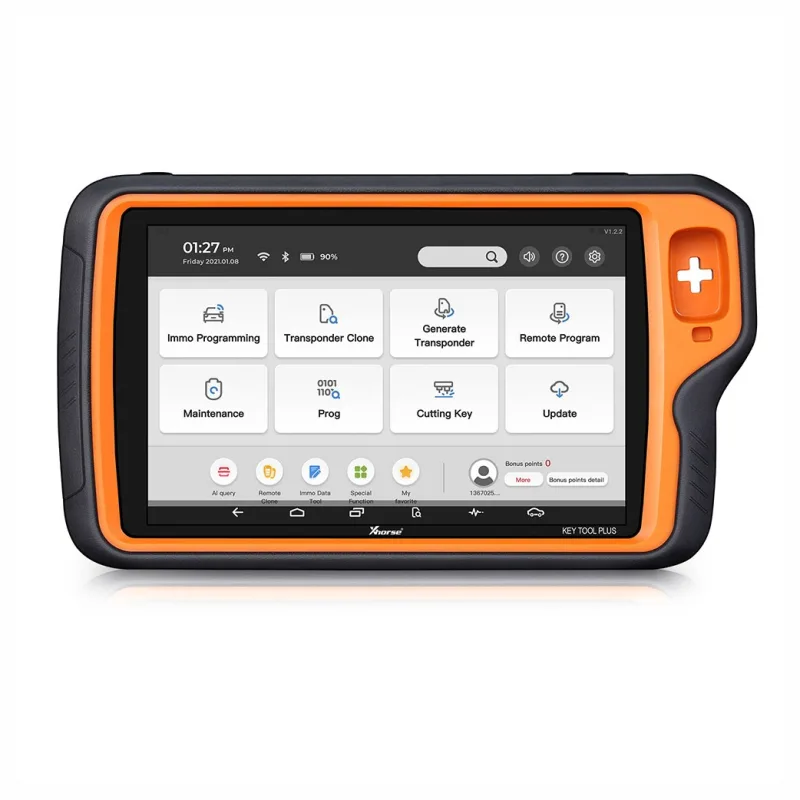

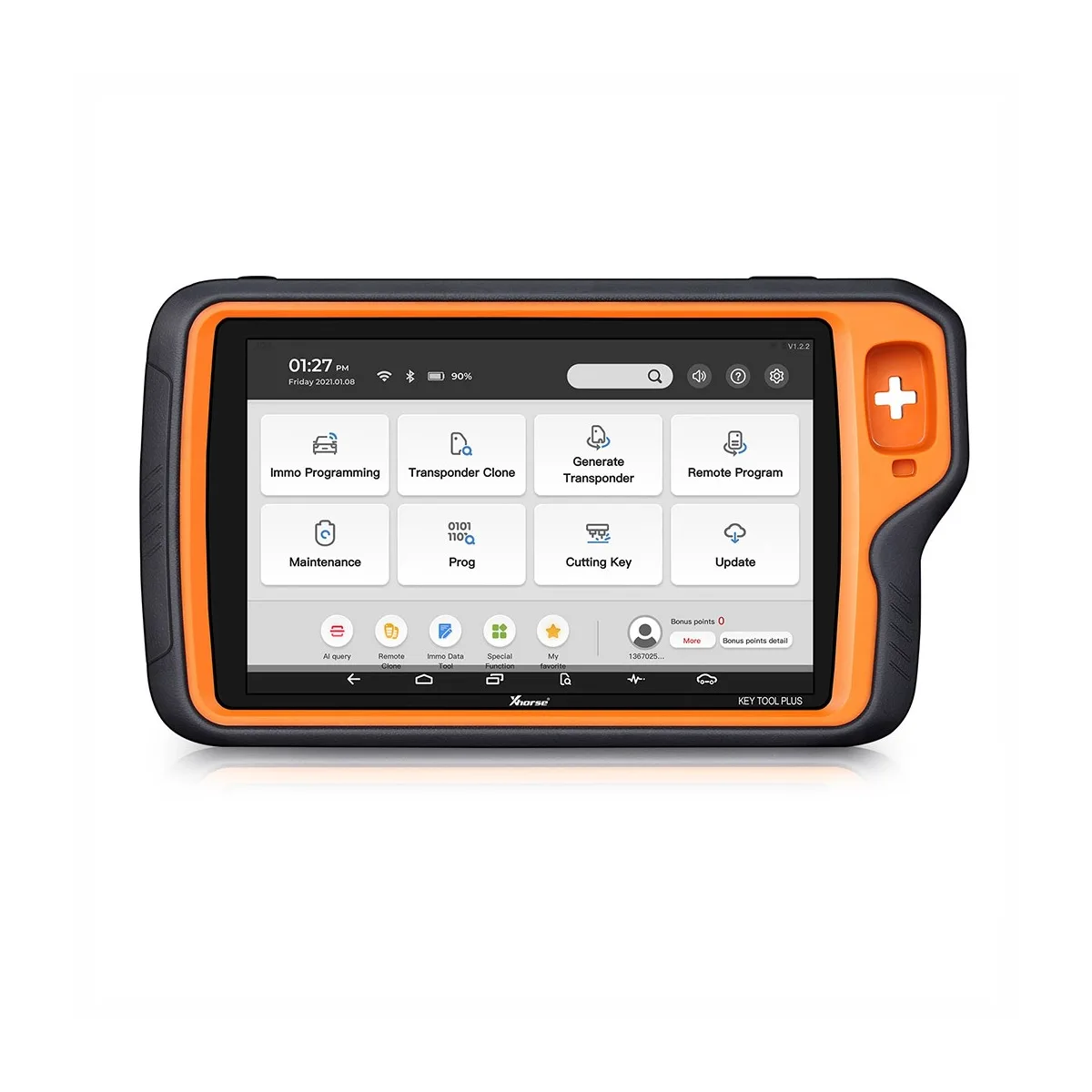

The Xhorse VVDI Key Tool Plus Pad is a 10.1-inch Android tablet built for locksmith work. It handles OBD immobiliser programming, add-key and all-keys-lost jobs, transponder identification, cloning and generation, remote and smart key generation, and EEPROM/MCU reading for file-based key making. A transponder coil, a Mercedes infrared reading head, a smart key simulator and an OBD matrix switch sit inside the housing. This page covers the Advanced package, which ships with the programming (PROG) adapters.

Short answer: Key Tool Plus Pad programs keys on Mercedes FBS3, BMW CAS1 to CAS4+ and FEM/BDC, and VAG 3rd to 5th generation and MQB immobilisers, and Xhorse lists OBD matching for over 20,000 models. EEPROM, MCU and module work uses the supplied adapters. Updates are free; Mercedes password calculation and ID48 96-bit cloning use tokens or bonus points, while MQB48, BMW bench ISN and BDC2/BDC3 need a one-off licence.

What does the Key Tool Plus Pad do?

OBD immobiliser programming

Select make, model and year, then add keys, run all-keys-lost, read the key count or erase remotes. Where the tool cannot read the PIN, the code has to come from the owner's paperwork.

Transponders

125 kHz, 13.56 MHz and 300–900 MHz coils. Reads, clones and generates types 11, 12, 13, 33, 42, 46, 4D, 48, 8A and 8C; ID46, ID48 96-bit and Toyota H (8A) are calculated online.

Remotes and smart keys

Generates vehicle remotes and smart keys from Xhorse universal remotes, detects frequency, clones HCS and fixed-code remotes and renews locked remotes.

PROG

Reads and writes EEPROM and flash, immobiliser, instrument cluster, airbag and ECU modules, including BMW CAS/FEM/BDC/FRM, Land Rover RFA and Porsche BCM. Advanced edition only.

Immo Data Tool

When OBD is not enough, immobiliser data is read from the module and the tablet builds a working or dealer key from that file.

Key cutting machines

Acts as the screen for Xhorse Condor, Dolphin and Panda cutters over Bluetooth. The cutter is a separate product.

How far does Key Tool Plus go on Mercedes, BMW and VAG?

System	Job	Extra requirement

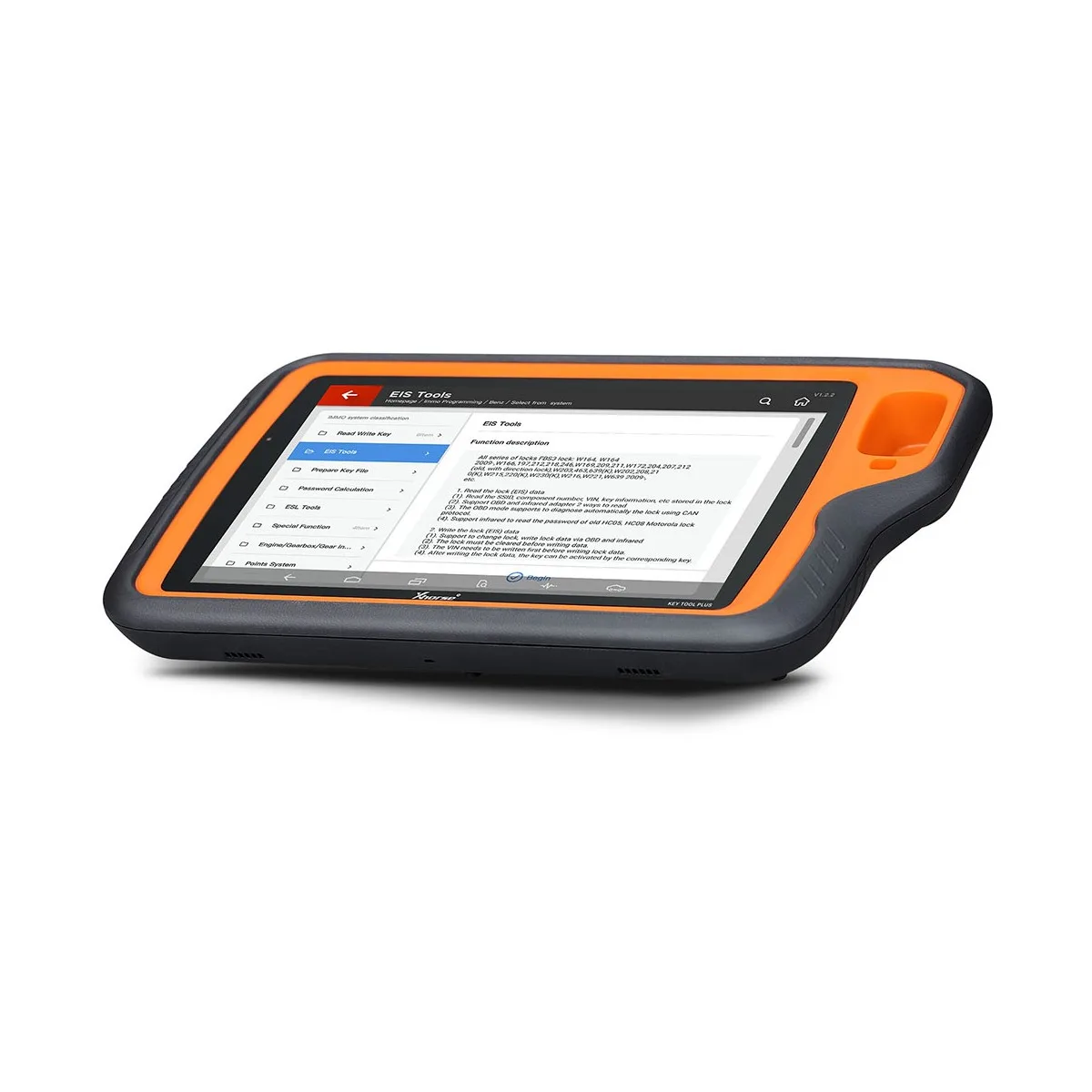

Mercedes FBS3 (EIS/EZS, ELV, keyless-go)	Add key, all keys lost, enable/disable keys; EIS, ELV, ECU, gearbox and ISM replacement	Password calculation needs a token or bonus points; NEC adapters included
BMW EWS, CAS1–CAS4+	OBD key learning, file make key, ECU ISN, ECU–CAS sync	CAS solder-free adapters optional
BMW FEM/BDC	Key programming	Separate licence for G-series BDC2/BDC3
BMW bench ISN, BMW motorcycle OBD	ISN reading on the bench; motorcycle keys	Separate licence each
VAG MQB48 (NEC35xx cluster)	Read cluster data, add key	MQB48 licence, or a Multi Prog on the same Xhorse account
VW/Škoda MQB49 5C and 5D	Read data from the disassembled key, add key	5C/5D adapter; IMMO database V142 and PROG V187 or later
Audi BCM2	Add key and all keys lost	Solder-free BCM2 adapter set
Toyota/Lexus 8A smart key	Smart key programming	Xhorse Toyota 8A adapter
Ford up to 2020	All keys lost with alarm on	Ford all-keys-lost cable

Toyota, Honda, Mazda, Cadillac, Hyundai, Kia, Nissan, Renault, SEAT, Fiat, Jeep, Chrysler, Peugeot and Volvo are also on the OBD brand list. On Renault and Nissan the method depends on model year and key type, so check the vehicle in the tool's list before quoting the job.

How does Key Tool Plus work with Multi Prog?

The Xhorse account links them. Xhorse Multi Prog ships with the MQB48 licence and BMW bench ISN reading; bind it to the same account and the Key Tool Plus can load the NEC35xx cluster data that Multi Prog reads and add a key. To read NEC35xx directly on the tablet you still need the MQB48 licence. The MQB48 and Audi BCM2 solder-free adapters work with both tools, and Multi Prog covers the deeper bench work: ECU and TCU cloning, encrypted MCUs and batch chip writing.

Tokens, bonus points and licences: what costs extra?

Item	Used for	How you get it
BGA token	Mercedes password calculation: 1 token, all keys lost 2 tokens	Bought; or 1 free token a day when an Xhorse key cutter is bound to the same account (2 a day at most), and tokens accumulate
ID48 token	ID48 96-bit cloning	Bought or paid with bonus points
Bonus points	200 points equal one token	Earned by generating Xhorse remotes and keys; every bound Xhorse device shares its points with the account
Licence	MQB48, BMW bench ISN, BMW motorcycle OBD, BMW BDC2/BDC3	Activated online against the serial number

Key Tool Plus Pad specifications

Item	Value
Operating system	Android 9.0
Processor, memory	8-core (4× Cortex-A53 2.3 GHz + 4× 1.8 GHz), 4 GB LPDDR4X + 128 GB eMMC
Screen	10.1 inch, 1920 × 1200
Battery	10,000 mAh; standby over 7 × 24 h
Power	USB-C 5 V / 9 V (9 V / 3 A charging); 12 V / 24 V via OBD
Wireless	Wi-Fi 2.4/5 GHz, Bluetooth 5.0
Vehicle protocols	CAN and K-line with pin switching, CAN FD, DoIP
Ports	DB25 OBD, DB15 programming, PS2 remote, Mercedes IR, USB-C
Size, temperature	320 × 181 × 34 mm; −20 to 55 °C
Languages	English, French, Polish, Thai, Hindi, Chinese
Updates, warranty	Free online updates; 1-year Xhorse warranty

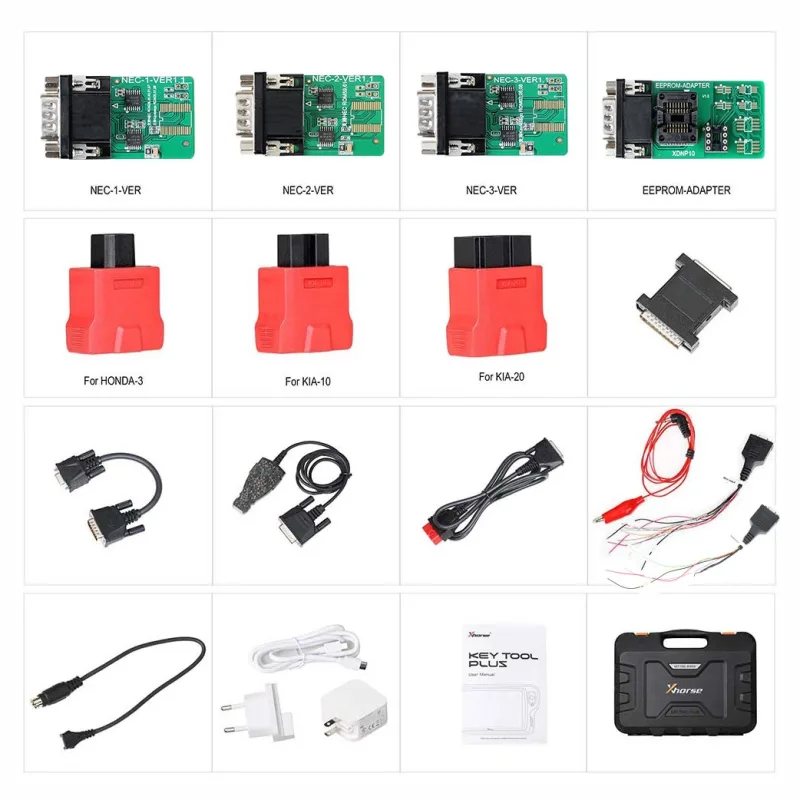

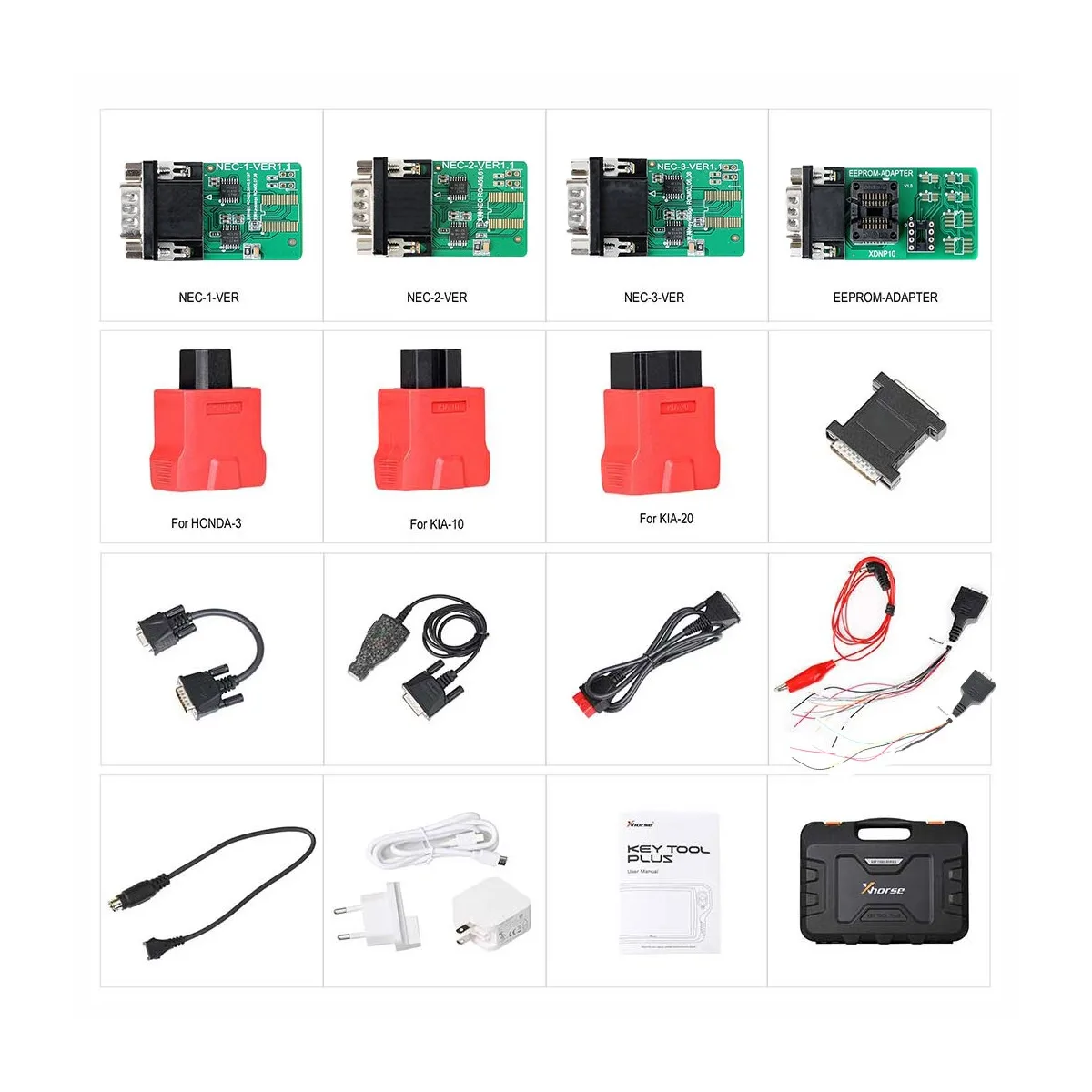

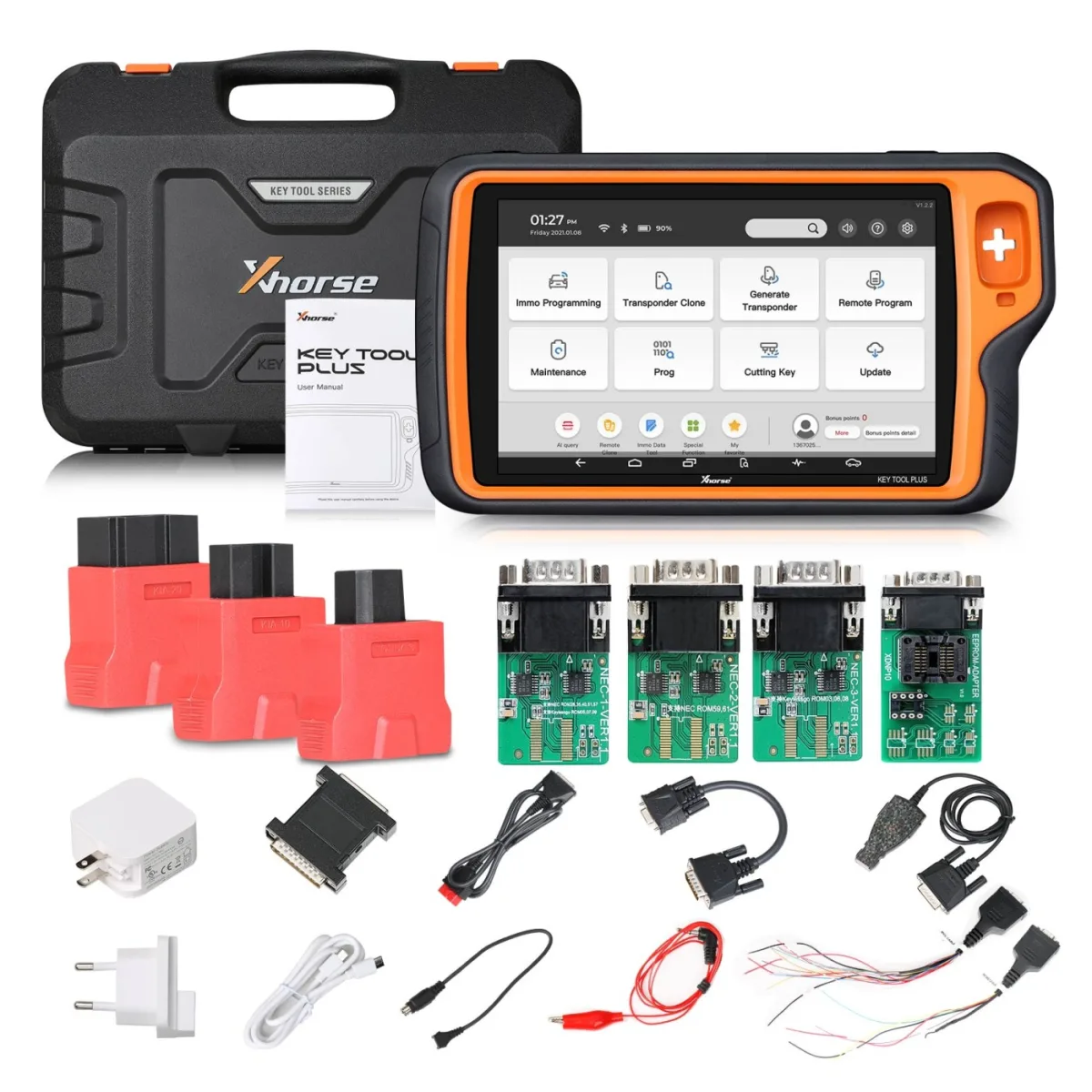

What is in the box?

Item	Qty	Purpose
Key Tool Plus tablet, manual, warranty card, carry case	1 each	Main unit and paperwork
Fast charger, USB 3.0 Type-C cable	1 each	Charging and file transfer
OBD_DB25 cable	1	Vehicle OBD connection
Kia 10-pin, Kia 20-pin, Honda 3-pin connectors	1 each	Vehicles without an OBD II socket
Remote PS2 programming cable, transponder box	1 each	Wired remote generation, chip storage
Prog DB15 cable, EEPROM adapter (XDNP10)	1 each	PROG connection, EEPROM read/write
Mercedes IR reader, NEC1, NEC2, NEC3 adapters, power adapter	1 each	Mercedes IR data, NEC keys, EIS powering without removal
9S12xE cable, MCU cable	1 each	Motorola 9S12 and MCU read/write

Key Tool Plus vs Key Tool Max Pro, Autel IM608 Pro II and OBDSTAR G3

Item	Key Tool Plus Pad	Key Tool Max Pro	Autel IM608 Pro II	OBDSTAR Key Master G3
Form	10.1" tablet	Handheld, 1280 × 720	10.1" tablet	—
CPU, memory	8-core, 4 + 128 GB	4-core, 1 + 8 GB	Snapdragon 660, 4 + 128 GB	4-core Cortex-A55, 4 + 64 GB
CAN FD / DoIP	Both	CAN FD; DoIP not stated	Both	Both
EEPROM / MCU	Supplied PROG adapters	No	Via XP400 Pro	Yes
Diagnostics	Service functions	Service functions, EOBD	Full system	OBD II only

Choose the Autel IM608 Pro II if you want full diagnostics and J2534 reflashing in the same kit. Choose the Key Tool Plus if key work is the business and you want Xhorse remotes, built-in Mercedes IR and no yearly update fee. If remotes and OBD add-key jobs are most of your day, the handheld Xhorse VVDI Key Tool Max Pro is enough. OBDSTAR's G3 lists MQB proximity and blade all-keys-lost, with some modules sold as paid activations; other OBDSTAR tools are on our OBDSTAR page.

Who is it for?

Automotive locksmiths working on Mercedes, BMW and VAG
Shops that want remotes, transponders and OBD matching on one device and already run an Xhorse cutter
Not for workshops whose main job is diagnostics, and not for ECU/TCU cloning, where ECU programming tools fit better

Setup and support

Pre-order check. Send your most common makes and model years; we confirm coverage and which adapter, token or licence each job needs.
Account and binding. Create an Xhorse account, bind the tablet by serial number, and bind any Xhorse cutter or Multi Prog to the same account.
Update. One-key update over Wi-Fi: app, firmware, IMMO and remote databases.
First job together. We walk through the first key job by remote session or video call, then support you remotely.

Honest note: not everything is unlocked out of the box. Mercedes calculation, ID48 96-bit cloning, MQB48, BMW bench ISN, BMW motorcycle and BDC2/BDC3 cost tokens, points or licences, and Toyota 8A, Ford all keys lost, Audi BCM2 and MQB49 5C/5D need extra adapters or cables. Asking for proof of vehicle ownership before making a key is standard practice; Xhorse's own manual says the tool is for locksmiths with the owner's authorisation.

All key programmers are listed under auto key equipment, and the full Xhorse range is on the Xhorse page. For brand-licence work on difficult makes, see Abrites AVDI and the Abrites price list.

Tags: obd immobiliser programming mercedes fbs3 bmw cas4 fem bdc mqb48 eeprom mcu reading transponder cloning remote generation can fd doip

All Auto Key Equipment → All Xhorse Ecu Programming →

Reviews

Write a review

Have you used the Xhorse VVDI Key Tool Plus Pad Key Programmer?

A short review helps the next workshop looking at the same tool decide. Good or bad, both are useful.

Your rating *

Your name * Your review *

When you submit this form, the details you share are processed only to handle your request. Details: Privacy Notice

Frequently asked questions about the Xhorse VVDI Key Tool Plus Pad Key Programmer

Can the Xhorse Key Tool Plus program Mercedes keys?

Yes. It programs standard and keyless-go keys on FBS3 Mercedes, including add key and all keys lost, reading EIS data over infrared or OBD. The password calculation runs on the Xhorse server and uses a token or bonus points; all keys lost takes two tokens.

Does the VVDI Key Tool Plus do VW MQB keys?

MQB add key is listed. MQB48 (NEC35xx cluster) needs the MQB48 licence, or a Multi Prog bound to the same Xhorse account reads the data and the Key Tool Plus loads it to add a key.

Are Key Tool Plus updates free?

Yes, core updates are free with no yearly subscription. Mercedes calculation and ID48 96-bit cloning use tokens or points, and MQB48, BMW bench ISN, BMW motorcycle and BDC2/BDC3 are one-off licences.

Key Tool Plus or Autel IM608 Pro II?

IM608 Pro II suits workshops that want full diagnostics and J2534 reflashing in the same kit. Key Tool Plus suits locksmiths focused on key work, Xhorse remotes and Mercedes IR, without a yearly update fee.

What is the difference between Key Tool Plus and Key Tool Max Pro?

Key Tool Plus is a 10.1-inch tablet with PROG for EEPROM and MCU, Mercedes IR, BMW CAS4 and FEM/BDC, and DoIP. Max Pro is a handheld for remotes, transponders and OBD add-key work with CAN FD, but no EEPROM programmer.
