Autel MaxiDAS DS900 Diagnostic Tool Autel MaxiDAS DS900 Diagnostic Tool 2 Autel MaxiDAS DS900 Diagnostic Tool 3 Autel MaxiDAS DS900 Diagnostic Tool 4

1 / 4

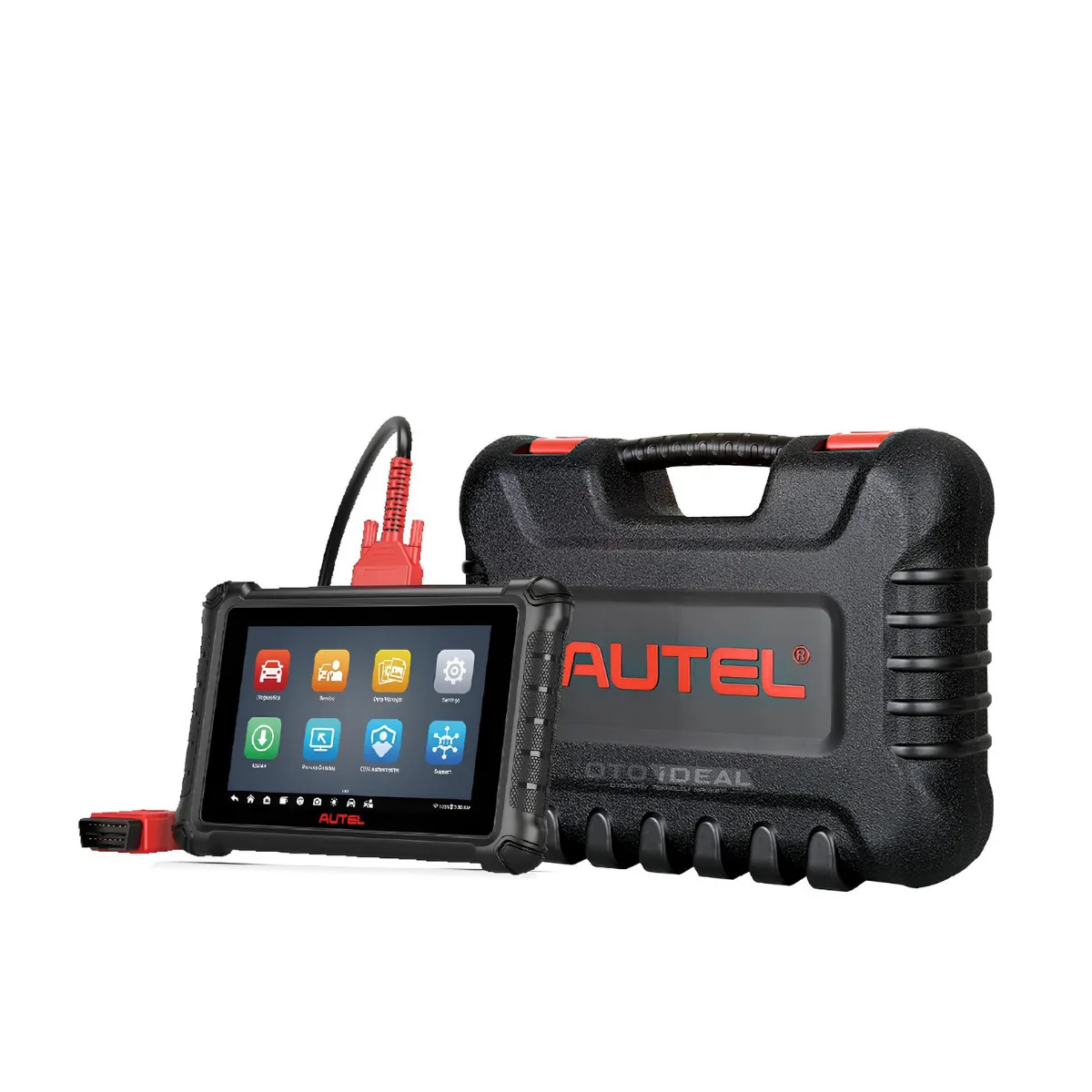

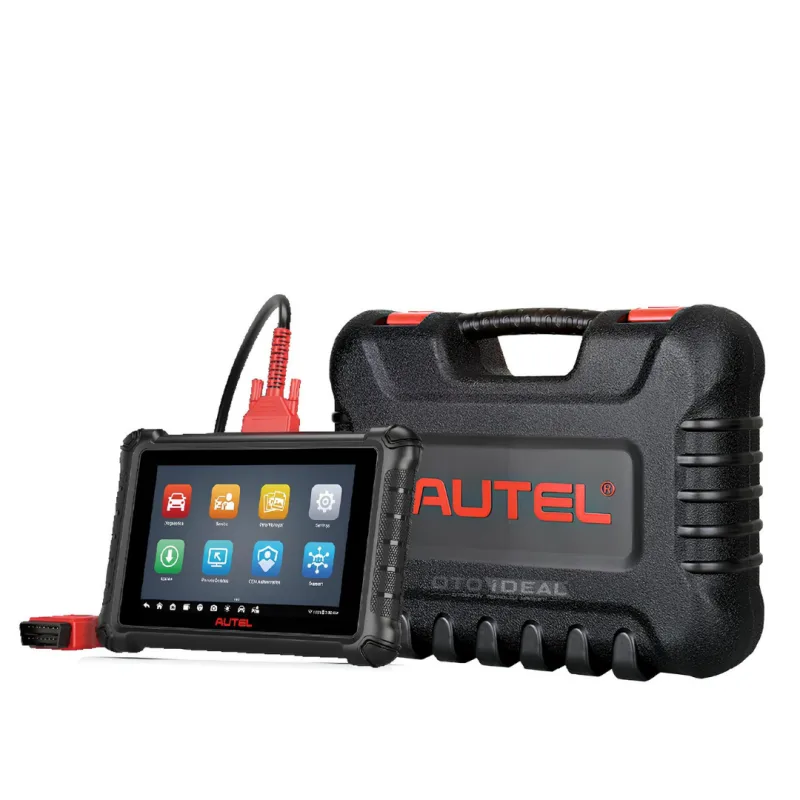

Autel MaxiDAS DS900 Diagnostic Tool

Autel Autel
Model
maxidas-ds900
Availability
2-3 Gün
Be the first to review
$916 VAT included · Ex Tax: $763
  • Free shipping
  • Ships within 2-3 days
  • Genuine product with warranty
  • Remote installation and technical support

Autel MaxiDAS DS900 Professional Diagnostic Device

A next-generation diagnostic device with DoIP and CanFD support, advanced ECU coding, and comprehensive adaptation features for over 80 vehicle brands!

Why MaxiDAS DS900?

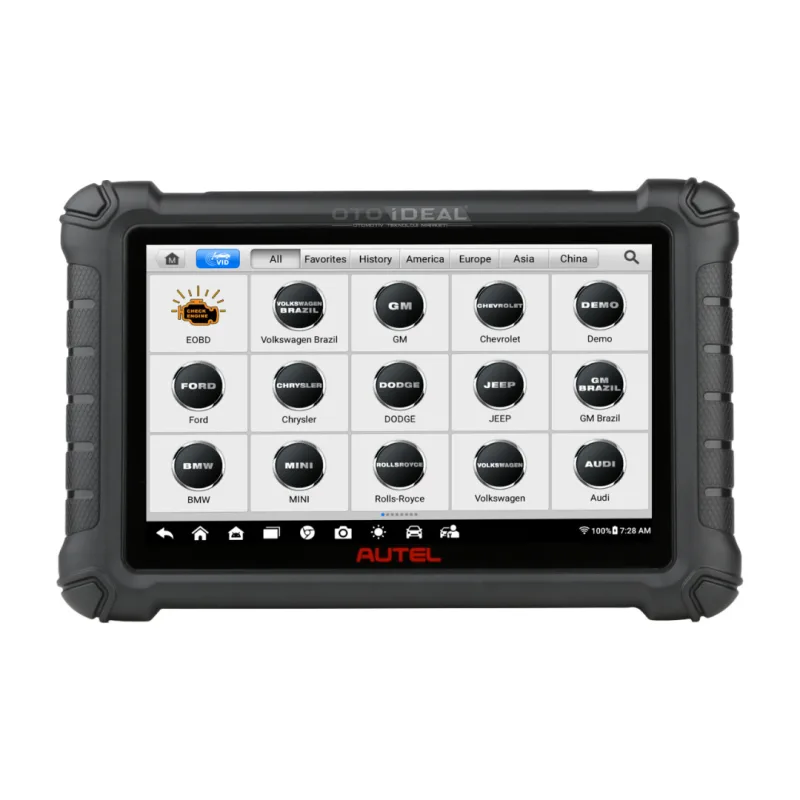

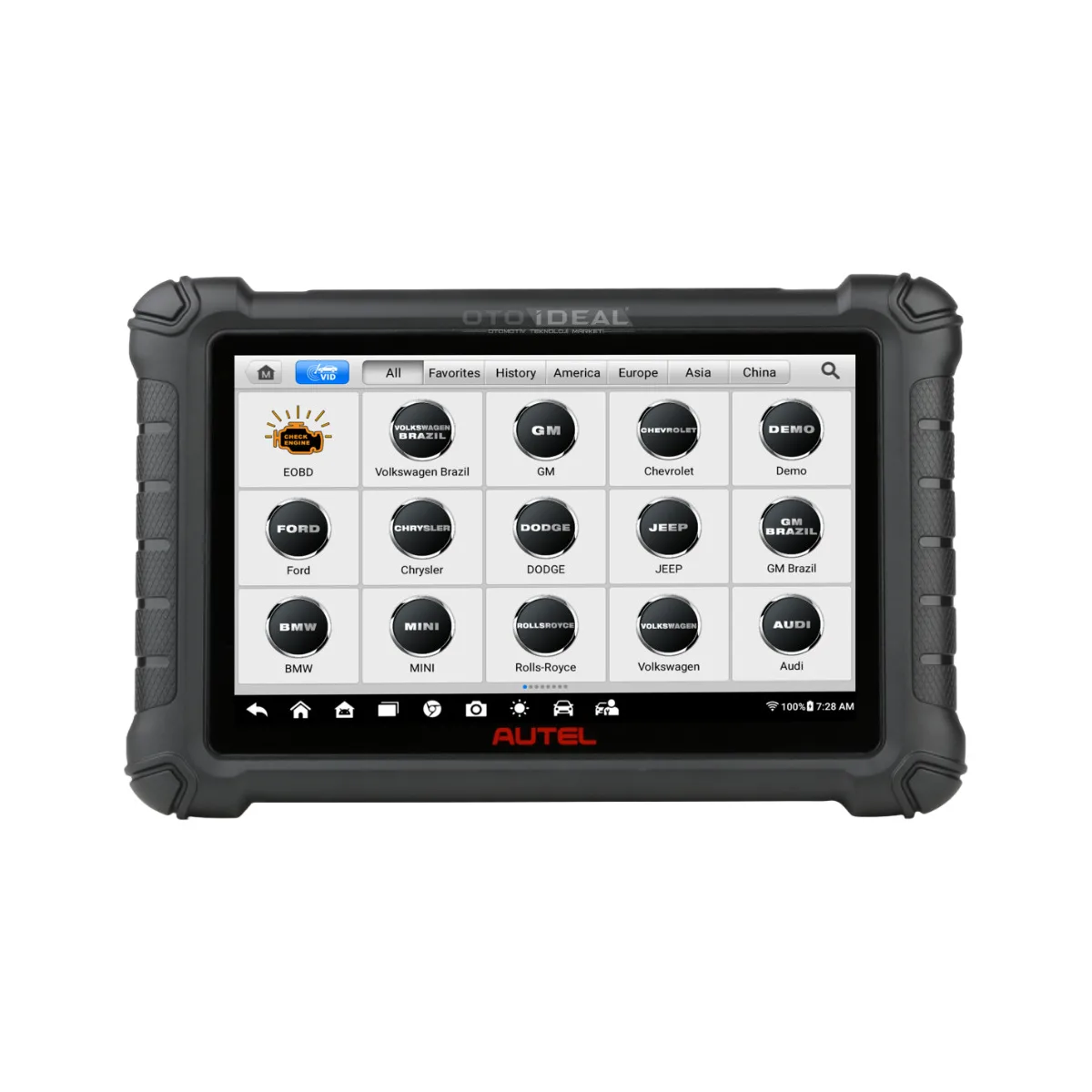

Developed with Autel's innovative technology, MaxiDAS DS900 offers a modern user experience with its high-resolution 8-inch touchscreen and Android 11 operating system. Its smart AutoVIN technology identifies vehicles quickly and accurately, saving time.

The device provides OE-level system coverage with advanced ECU coding and adaptation features. It offers comprehensive diagnostic capabilities such as code reading, live data viewing, ECU information, active tests, and special functions, along with professional-grade coding options. Automatic system and software updates are delivered via Wi-Fi.

Key Features

Quad-Core Processor (1.8GHz)
64GB Storage
8" Touchscreen
ECU Coding

Advanced ECU Coding and Service Functions

The Autel MaxiDAS DS900 offers advanced ECU coding features along with more than 30 common maintenance resets and adaptation functions:

Oil Reset

DPF Regeneration

Battery Matching

EPB Reset

ABS Bleeding

Gearbox Adaptation

SAS Calibration

Headlight Adaptation

AdBlue Reset

Start-Stop Reset

Throttle Adjustment

Rain Sensor

AC Service

Seat Calibration

Injector Coding

Fuel System

EGR Adaptation

Sunroof Reset

Transmission Adaptation

Steering Angle Sensor

GPF Regeneration

Electronic Brake Adjustment

SCR Reset

Differential Learning

NOx Sensor Reset

Suspension Calibration

Engine Ignition

Brake Pad Reset

AFS Reset

Particulate Filter

Engine Runtime

Clutch Adaptation

Coolant Change

Tailgate Learning


Tablet Technical Specifications

Android 11

1.8GHz Quad-Core

4GB RAM

64GB Storage

8" LCD Screen

1280x800 Resolution

8MP Rear Camera

7700mAh Battery

5V/3A Charging Port

Operating Temperature: 0-50°C

64GB SD Card Support

USB 2.0 & Type-C

Supported Protocols

ISO9141-2
K/L-Line Protocol
ISO14230-2
KWP2000
ISO15765
CAN Protocol
SAE-J1850
VPW/PWM
ISO11898
High/Mid/Low-speed CAN
SAE J2610
SCP Protocol
GM UART
General Motors
UART Echo
Byte Protocol
Honda Diag-H
Honda Protocol
TP2.0/TP1.6
Transfer Protocol
DoIP
ISO13400
CAN FD
High-Speed Data

Supported Vehicle Brands


For all American, European, and Asian vehicles manufactured from 1996 onwards:

  • ✓ Acura
  • ✓ Alfa Romeo
  • ✓ Audi
  • ✓ BMW
  • ✓ Chevrolet
  • ✓ Chrysler
  • ✓ Citroën
  • ✓ Dacia
  • ✓ Fiat
  • ✓ Ford
  • ✓ Honda
  • ✓ Hyundai
  • ✓ Jaguar
  • ✓ Kia
  • ✓ Land Rover
  • ✓ Lexus
  • ✓ Mazda
  • ✓ Mercedes-Benz
  • ✓ Mini
  • ✓ Mitsubishi
  • ✓ Nissan
  • ✓ Opel
  • ✓ Peugeot
  • ✓ Renault
  • ✓ Seat
  • ✓ Skoda
  • ✓ Subaru
  • ✓ Suzuki
  • ✓ Toyota
  • ✓ Volkswagen
  • ✓ Volvo
  • ✓ All Other Brands

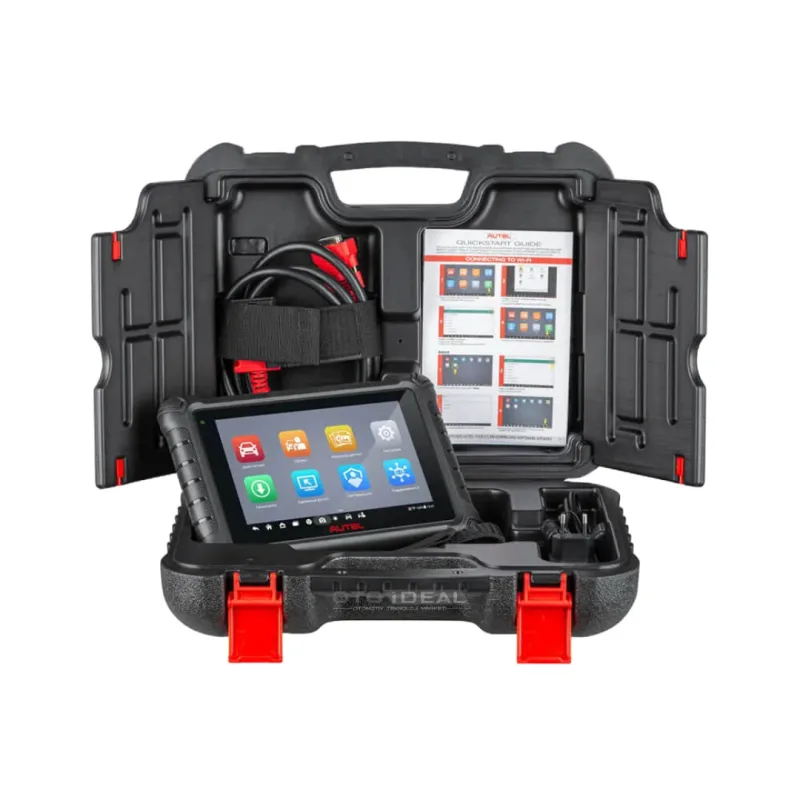

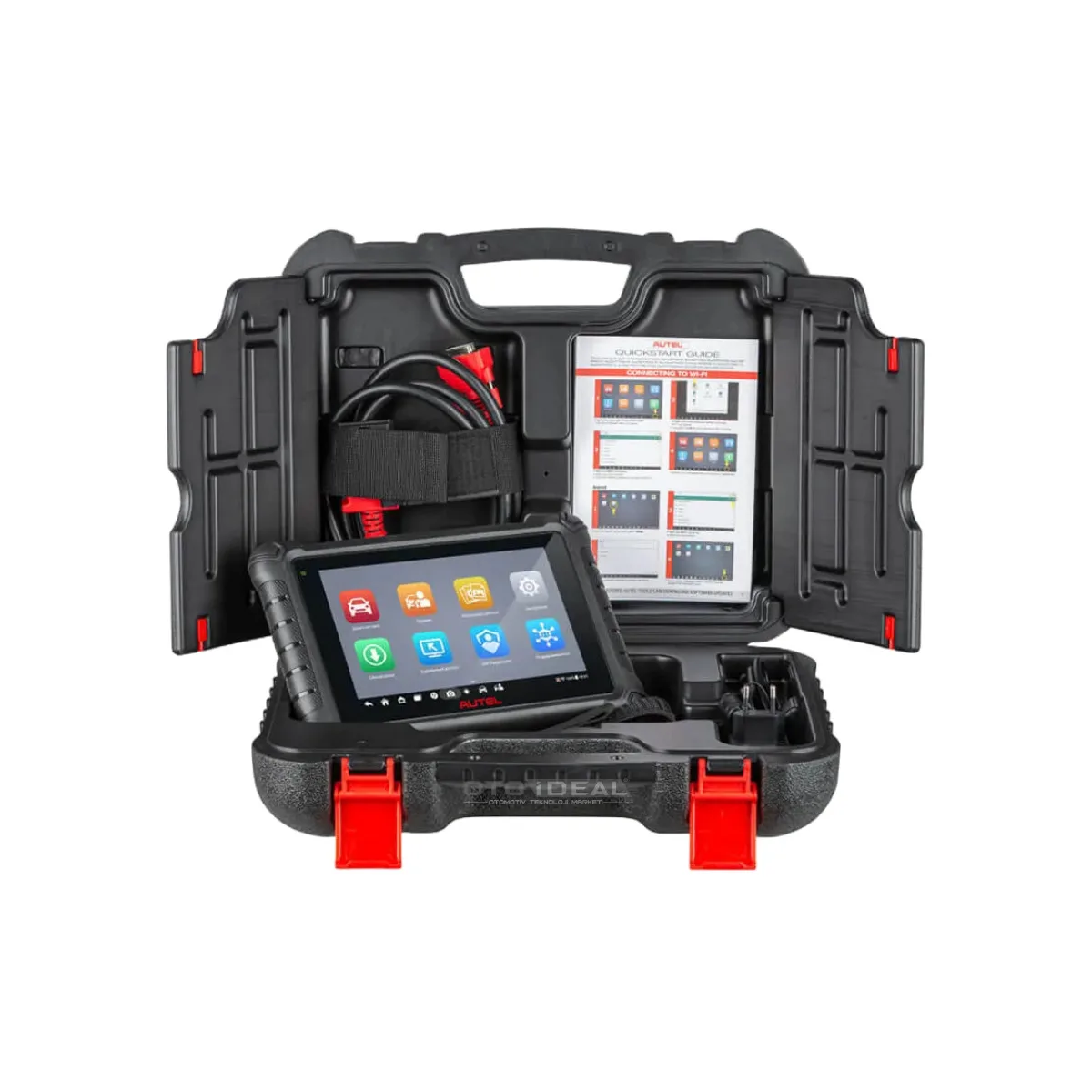

Package Contents

Main Unit (Tablet)

Main Cable

Power Adapter

USB Type-C Cable

Cleaning Cloth

Quick Start Guide

Package List

Carrying Case

Key Features and Benefits

  • ✓ Full access to advanced vehicle systems with enhanced ECU coding
  • ✓ Professional solutions for extensive adaptation and calibration operations
  • ✓ OEM-level diagnostics and coding support for 80+ vehicle brands
  • ✓ Detailed pre- and post-scan reporting for professional service documentation
  • ✓ Remote technical support and advanced troubleshooting capabilities
  • ✓ Multi-task management and workflow tracking for professional workshop operations
  • ✓ Comprehensive data management for customer information, vehicle records, and service history
  • ✓ Real-time software and ECU database updates via Wi-Fi
  • ✓ Smart AutoVIN technology for instant vehicle identification and system analysis
  • ✓ OE-Level diagnostics and coding support for all electronic control units
  • ✓ Full compatibility with next-generation vehicle systems using DoIP and CAN FD protocols

Autel MaxiDAS DS900, MaxiCheck MX900, MX808S, and MX808TS Comparison Table

Features MaxiDAS DS900 MaxiCheck MX900 MaxiCheck MX808S MaxiCheck MX808TS
Diagnostic Features
Code Reading ✓ ✓ ✓ ✓
Code Clearing ✓ ✓ ✓ ✓
Live Data ✓ ✓ ✓ ✓
ECU Information ✓ ✓ ✓ ✓
Active Test ✓ ✓ ✓ ✓
Service Functions ✓ ✓ ✓ ✓
Full OBD Diagnostics ✓ ✓ ✓ ✓
Pre and Post Scans ✓ ✓ - -
VIN Scanning ✓ ✓ - -
ECU Coding - ✓ - -
Special Features
Tire Pressure Monitoring System Basic Basic Basic Complete
Immobilizer Function Basic Basic Basic Basic
Advanced TPMS Diagnosis - - - ✓
Activate All TPMS Sensors - - - ✓
AUTEL MX-Sensor Programming - - - ✓
Technical Specifications
Processor Quad-core 1.8GHz Quad-core 1.8GHz Cortex-A55 1.8GHz Quad-core 1.6GHz
Operating System Android 11 Android 11 Android 11 Android 4.4.4
Memory 4G + 64G 4G + 64G 4G + 64G 2G + 64G
Display 8" LCD 8" LCD 7" LCD 7" LCD
Battery 7700mAh 7700mAh 5000mAh 5000mAh
DoIP ✓ ✓ - -
CAN FD ✓ ✓ ✓ (optional adapter) ✓ (optional adapter)
Connection Method Wired Wired Wired Wireless (Bluetooth)
Wi-Fi Updates ✓ ✓ ✓ ✓
Multi-Language Support ✓ ✓ ✓ ✓
Test Records ✓ ✓ ✓ ✓
Wi-Fi Printing ✓ ✓ - -
Note: This comparison table highlights the features of Autel's DS900, MX900, MX808S, and MX808TS models. MaxiDAS DS900 stands out with its advanced ECU coding and adaptation features.

Empower Your Workshop with MaxiDAS DS900!
Advanced ECU coding, full compatibility with modern vehicle technologies, and comprehensive diagnostic features.

Experience Top-Tier Diagnostics!

Maximize your workshop's potential with the MaxiDAS DS900. Featuring advanced ECU coding, comprehensive adaptation features, and a user-friendly interface, professional diagnostics have never been easier.

Learn More
Tags: Autel MaxiDAS DS900 ECU coding device diagnostic tool professional diagnostic tablet vehicle programming device Autel MaxiDAS DS900 OBD2

All Autel Diagnostic Device →

Reviews

Write a review

Have you used the Autel MaxiDAS DS900 Diagnostic Tool?

A short review helps the next workshop looking at the same tool decide. Good or bad, both are useful.

Your rating *

When you submit this form, the details you share are processed only to handle your request. Details: Privacy Notice

Frequently asked questions about the Autel MaxiDAS DS900 Diagnostic Tool

What is the Autel MaxiDAS DS900 Diagnostic Tool and what is it used for?

Developed with Autel's innovative technology, MaxiDAS DS900 offers a modern user experience with its high-resolution 8-inch touchscreen and Android 11 operating system. Its smart AutoVIN technology identifies vehicles quickly and accurately, saving time.

What functions can the Autel MaxiDAS DS900 Diagnostic Tool perform?

The Autel MaxiDAS DS900 Diagnostic Tool performs 34 service functions, including: Oil Reset, DPF Regeneration, Battery Matching, EPB Reset, ABS Bleeding, Gearbox Adaptation, SAS Calibration, Headlight Adaptation, AdBlue Reset, Start-Stop Reset, Throttle Adjustment, Rain Sensor, AC Service, Seat Calibration and 20 more.

The full list is in the service functions section of the product description.

What is included in the Autel MaxiDAS DS900 Diagnostic Tool package?

Main Unit (Tablet), Main Cable, Power Adapter, USB Type-C Cable, Cleaning Cloth, Quick Start Guide, Package List, Carrying Case

Which vehicle brands does the Autel MaxiDAS DS900 Diagnostic Tool support?

✓ Acura, ✓ Alfa Romeo, ✓ Audi, ✓ BMW, ✓ Chevrolet, ✓ Chrysler, ✓ Citroën, ✓ Dacia, ✓ Fiat, ✓ Ford, ✓ Honda, ✓ Hyundai, ✓ Jaguar, ✓ Kia, ✓ Land Rover, ✓ Lexus, ✓ Mazda, ✓ Mercedes-Benz, ✓ Mini, ✓ Mitsubishi, ✓ Nissan, ✓ Opel, ✓ Peugeot, ✓ Renault, ✓ Seat, ✓ Skoda, ✓ Subaru, ✓ Suzuki, ✓ Toyota, ✓ Volkswagen, ✓ Volvo, ✓ All Other Brands

If you are unsure whether your own vehicle is covered, ask us before ordering.

How much does the Autel MaxiDAS DS900 Diagnostic Tool cost?

The Autel MaxiDAS DS900 Diagnostic Tool is $916 including VAT, $763 excluding VAT. It follows the Autel list price and the exchange rate.

Ask for a quote before ordering to confirm the current price and payment options.

Does the Autel MaxiDAS DS900 Diagnostic Tool come with an invoice and warranty?

Yes. The Autel MaxiDAS DS900 Diagnostic Tool ships as a genuine product, with an invoice and a warranty.

Remote technical support is provided for installation and first use. Ask us about software updates and licence periods before ordering.

How do shipping and delivery work for the Autel MaxiDAS DS900 Diagnostic Tool?

Shipping is free on orders over 3,000 TL. Stock status: 2-3 Gün.

Ask us about delivery times and the courier before you order.
